How TVS Diodes work
TVS - Diodes TVS DIODE 47.8VWM 100VC DO201
1.5KE Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC's. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
1.5KE56A
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.08564 | $1.09 |
| 10+ | $1.02418 | $10.24 |
| 100+ | $0.96621 | $96.62 |
| 500+ | $0.91152 | $455.76 |
| 1000+ | $0.85993 | $859.93 |
The following figure is the diagram of 1.5KE pinout.
Pinout

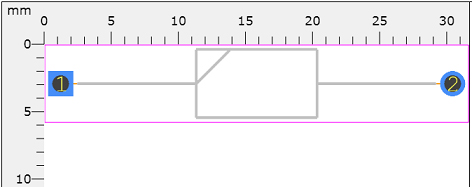

The followings are 1.5KE Symbol, Footprint, and 3D Model.
PCB Symbol
PCB Footprint
3D Model
1.5KE Transil diodes provide high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
This article provides you with a basic overview of the 1.5KE Transil Diode, including its pin descriptions, features and specifications, etc., to help you quickly understand what 1.5KE is.
● Peak pulse power: 1500 W (10/1000 µs)
● Breakdown voltage range: From 6.8 V to 440 V
● Uni and bidirectional types
● Low clamping factor
● Fast response time
● UL 497B file number: QVGQ2.E136224
STMicroelectronics 1.5KE56A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1.5KE56A.
STMicroelectronics 1.5KE56A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1.5KE56A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 9 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AA, DO-27, Axial | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Breakdown Voltage / V | 53.2V | |
| Number of Elements | 1 Element | |
| Reverse Stand-off Voltage | 47.8V | |
| Packaging | Tape & Box (TB) | |
| Series | 1.5KE, TRANSIL™ | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Type | Zener |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C | |
| Applications | General Purpose | |
| Additional Feature | UL RECOGNIZED | |
| Capacitance | 1.8nF | |
| Power Rating | 1.5kW | |
| Voltage - Rated DC | 56V | |
| Terminal Form | WIRE | |
| Base Part Number | 1.5KE | |
| Pin Count | 2 | |
| Operating Supply Voltage | 47.8V | |
| Polarity | Unidirectional | |
| Leakage Current | 1μA | |
| Element Configuration | Single | |
| Power Dissipation | 5W | |
| Case Connection | ISOLATED | |
| Power Line Protection | No | |
| Power - Peak Pulse | 1500W 1.5kW | |
| Current - Peak Pulse (10/1000μs) | 100A 8/20μs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Leakage Current | 1μA | |
| Clamping Voltage | 100V | |
| Peak Pulse Current | 100A | |
| Max Surge Current | 1mA | |
| Peak Pulse Power | 1.5kW | |
| Test Current | 1mA | |
| Capacitance @ Frequency | 1800pF @ 1MHz | |
| Reverse Breakdown Voltage | 53.2V | |
| Max Breakdown Voltage | 58.8V | |
| Number of Unidirectional Channels | 1Unidirectional Channel | |
| Diameter | 5.3mm | |
| Height | 5.3mm | |
| Length | 9.5mm | |
| Width | 5.3mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Ordering Information Scheme of 1.5KE.
Ordering information scheme
| Model number | Manufacturer | Description |
| 1N6289A | Taiwan Semiconductor Manufacturing Company Limited | 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-201, ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| 1N6381 | MDE Semiconductor Inc | Transient Suppressor |
| 1N6289E3TR | Microsemi Corporation | Trans Voltage Suppressor Diode, 1500W, 45.4V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, CASE 1, 2 PIN |
| 1N6364 | Square D by Schneider Electric | Trans Voltage Suppressor Diode, 45V V(RWM), Unidirectional |
| 1.5SE56 | Semitronics Corp | Trans Voltage Suppressor Diode, 1500W, 45V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC PACKAGE-2 |
| ICTE-45 | MDE Semiconductor Inc | Transient Suppressor |
| 1N6289ATR | Central Semiconductor Corp | Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-201 |
| MPT-45 | Microsemi Corporation | Trans Voltage Suppressor Diode, 1500W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-202AA, HERMETIC SEALED, METAL, DO-13, 2 PIN |
| 1.5KE56P | STMicroelectronics | 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CB429, 2 PIN |
| SICTE-45 | Semicon Components Inc | Trans Voltage Suppressor Diode, 1500W, 45V V(RWM), Unidirectional, 1 Element, Silicon |

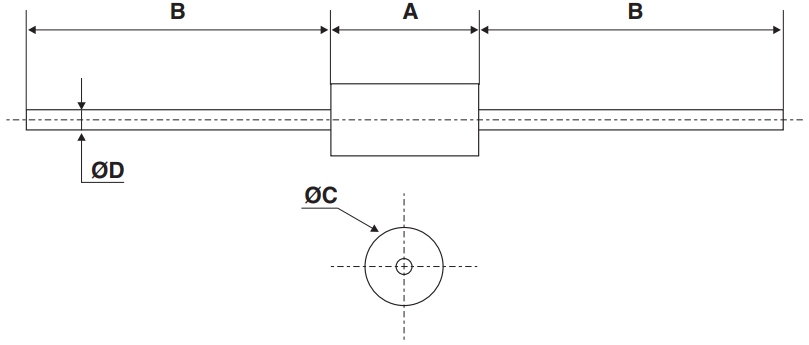

The following diagram shows the 1.5KE package.
DO-201 dimensions
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for 1.5KE56A
