Embedded - FPGAs (Field Programmable Gate Array) 169-LFBGA 0°C~85°C TJ MAX® 10 FIELD PROGRAMMABLE GATE ARRAY IC FPGA 130 I/O 169UBGA
10M02SCU169C8G is an integrated circuit. This article mainly introduces electrical characteristics, switching characteristics, and more details about 10M02SCU169C8G.
10M02SCU169C8G

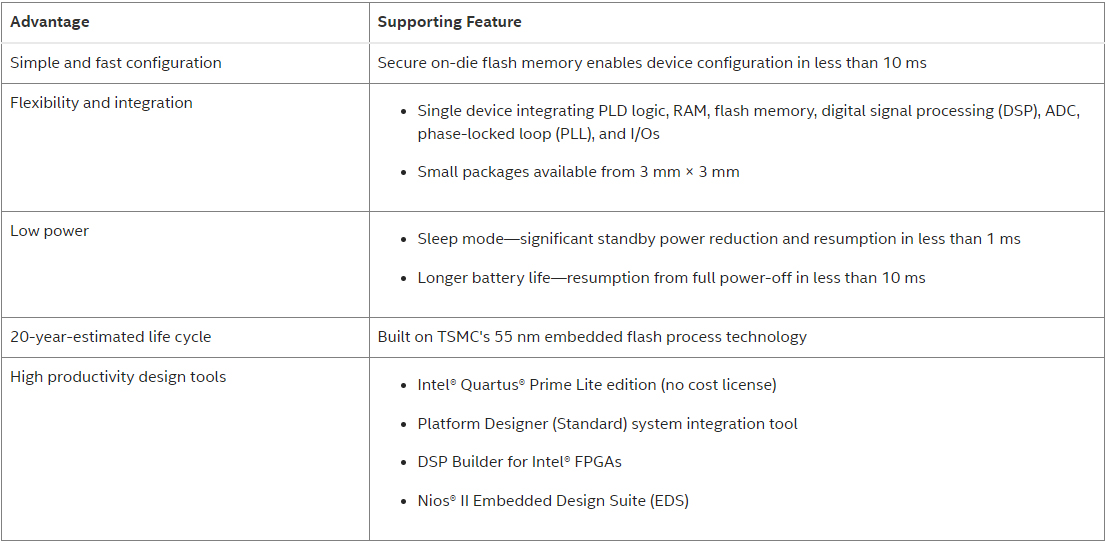

10M02SCU169C8G revolutionizes non-volatile integration by delivering advanced processing capabilities in a low-cost, instant-on, small form factor programmable logic device. With early access to Quartus® II (BETA) software and documentation, customers can compile and run timing analyses for an accelerated path to market.

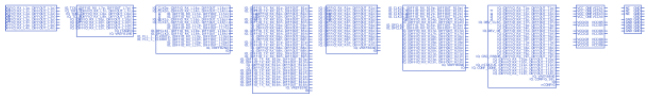

10M02SCU169C8G Symbol
10M02SCU169C8G Footprint
Intel 10M02SCU169C8G technical specifications, attributes, parameters and parts with similar specifications to Intel 10M02SCU169C8G.
Intel 10M02SCU169C8G technical specifications, attributes, parameters and parts with similar specifications to Intel 10M02SCU169C8G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 169-LFBGA | |
| Surface Mount | YES | |
| Number of I/Os | 130I/Os | |
| Operating Temperature | 0°C~85°C TJ | |
| Packaging | Tray | |
| Series | MAX® 10 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 169Terminations | |
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 2.85V~3.465V | |
| Terminal Position | BOTTOM | |
| Terminal Form | BALL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | S-PBGA-B169 | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Number of Logic Elements/Cells | 2000Logic Elements/Cells | |
| Total RAM Bits | 110592 | |
| Number of LABs/CLBs | 125LABs/CLBs | |
| RoHS Status | RoHS Compliant |

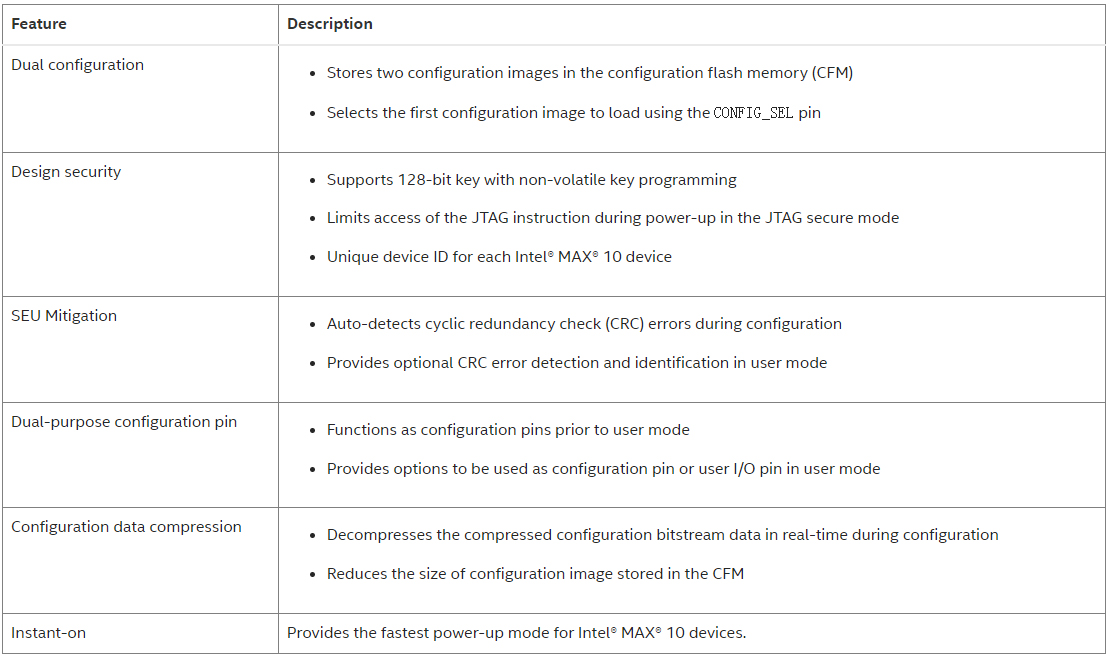

10M02SCU169C8G Configuration

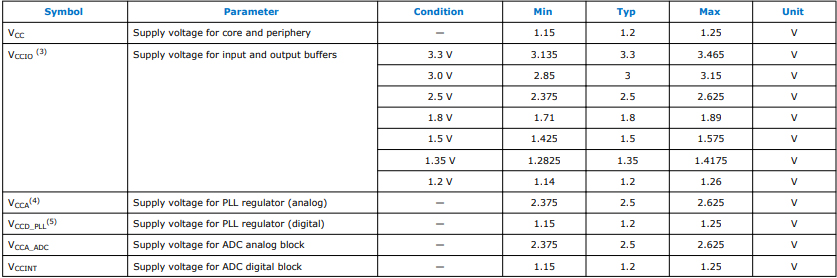

Single Supply Devices Power Supplies
Dual Supply Devices Power Supplies

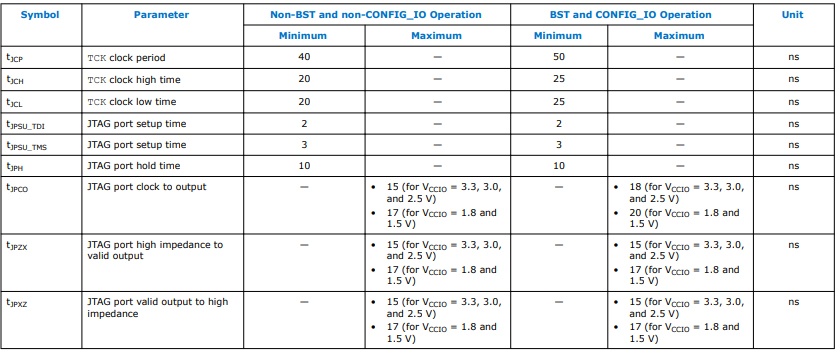

JTAG Timing Parameters
Row Pins for 10M02SCU169C8G
Column Pins for 10M02SCU169C8G
Single Power Supply Devices
Dual Power Supply Devices
