The 1N34A is a point contact diode in a DO7 type package. This article mainly covers datasheet, Cad model, applications, circuit, and other details about 1N34A.
1N34A Diode: Datasheet, Circuit and Alternatives
DIODE GEN PURP 75V 50MA DO7 The 1N34A is a point contact diode in a DO7 type package.
291
Aug 24, 2021
Gregary Priestley
1N34A BK
Inquiry
Min.: 1 Mult.: 1
Quick Links
1N34A CAD Model
Symbol

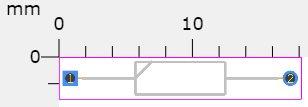

Footprint

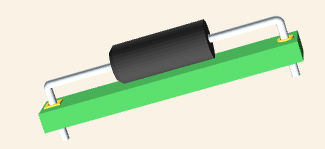

3D Model
1N34A Description
The 1N34A is a point contact diode in a DO7 type package employing N−form Germanium and gives efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc.
1N34A Block Diagram
Specifications
Central Semiconductor Corp 1N34A BK technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor Corp 1N34A BK.
1N34A BK Tech Specifications
1N34A BK Tech Specifications
Central Semiconductor Corp 1N34A BK technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor Corp 1N34A BK.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | DO-204AA, DO-7, Axial | |
| Surface Mount | NO | |
| Diode Element Material | GERMANIUM | |
| Number of Elements | 1 Element | |
| Packaging | Bulk | |
| Published | 2016 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | MATTE TIN (315) | |
| HTS Code | 8541.10.00.70 | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| JESD-30 Code | O-PALF-W2 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Product Attribute | Attribute Value | |
|---|---|---|
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 500μA @ 50V | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 5mA | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -55°C~75°C | |
| Output Current-Max | 0.05A | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) | 50mA | |
| Rep Pk Reverse Voltage-Max | 75V | |
| RoHS Status | Non-RoHS Compliant |
1N34A Features
-
Low Leakage Current
-
Flat Junction Capacitance
-
High Mechanical Strength
1N34A Applications
-
AM/FM detectors
-
Ratio detectors
-
FM discriminators
-
TV audio detectors
-
RF input probes
-
TV video detectors

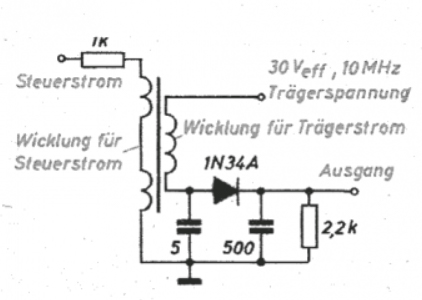

1N34A Circuit

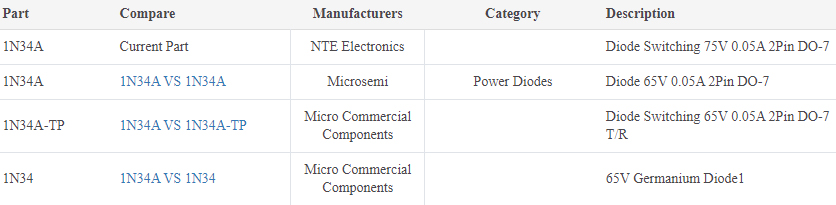

1N34A Alternatives

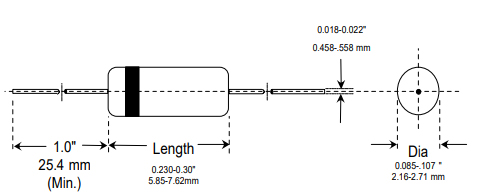

1N34A Package
1N34A Manufacturer
Central Semiconductor is a leading provider of superior discrete semiconductors that have been applied in electronic products all over the world since 1974. Nowadays, the company's products lines contain MOSFETs, bridge rectifiers, silicon carbide devices, protection devices, rectifiers, current limiting diodes, bipolar power transistors, standard, and custom small-signal transistors, and thyristors. Except for the industry-standard surface mount, the company's products also support bare die, MDMs (Multi Discrete Modules™), through-hole packages. With the loyal and high-quality brand image it has built, Central keeps leveraging its service capability and benefit more and more customers through exclusive high-tech products.
Datasheet PDF
Download datasheets and manufacturer documentation for Central Semiconductor Corp 1N34A BK.
1N34A BK Documents
1N34A BK Documents
Download datasheets and manufacturer documentation for 1N34A BK
Datasheets
1N34A
PCN Obsolescence/ EOL
OBS 03/Aug/2015
Frequently Asked Questions
What is 1N34A?
The 1N34A is a point contact diode in a DO7 type package employing N-form Germanium and gives efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc.
What is 1N34A used for?
It features a lower leakage current, high mechanical strength, optimized for radiofrequency response hence can be used in AM, FM, and TV-IF applications such as AM/FM detectors, ratio detectors, FM discriminators, TV audio detectors, RF input probe, and TV video detectors.
Where to use 1N34A?
The 1N34A Germanium diode is an old standby in electronics. Widely used for detecting the rectifying efficiency or for switching on a radio, TV, or stereo, etc.
1.AM/FM detectors.
2.Ratio detectors.
3.FM discriminators.
4.TV audio detectors.
5.RF input proves.
6.TV video detectors.
FAQ
What is 1N34A?
The 1N34A is a point contact diode in a DO7 type package employing N-form Germanium and gives efficient and excellent linearity when used in TV image detection, FM detection, radio AM detection, etc.
What is 1N34A used for?
It features a lower leakage current, high mechanical strength, optimized for radiofrequency response hence can be used in AM, FM, and TV-IF applications such as AM/FM detectors, ratio detectors, FM discriminators, TV audio detectors, RF input probe, and TV video detectors.
Where to use 1N34A?
The 1N34A Germanium diode is an old standby in electronics. Widely used for detecting the rectifying efficiency or for switching on a radio, TV, or stereo, etc.
1.AM/FM detectors.
2.Ratio detectors.
3.FM discriminators.
4.TV audio detectors.
5.RF input proves.
6.TV video detectors.
