DIODE GEN PURP 50V 1A DO41 1N4001 is a rectifier diode with an operating and storage temperature of -65~175°C. This blog mainly introduces features, CAD model and other detailed information of 1N4001.
204
Jun 26, 2021
Grover Hume
Full wave bridge rectifier. LEDs and 1N4001 diodes. Rectifier component shown
DIODE GEN PURP 50V 1A DO41
1N4001 is a rectifier diode with an operating and storage temperature of -65~175°C. This blog mainly introduces features, CAD model and other detailed information of 1N4001.
1N4001
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.12849 | $0.13 |
| 500+ | $0.09448 | $47.24 |
| 1000+ | $0.07873 | $78.73 |
| 2000+ | $0.07223 | $144.46 |
| 5000+ | $0.06751 | $337.55 |
| 10000+ | $0.0628 | $628 |
| 15000+ | $0.06073 | $910.95 |
| 50000+ | $0.05972 | $2986 |

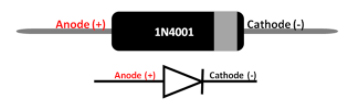

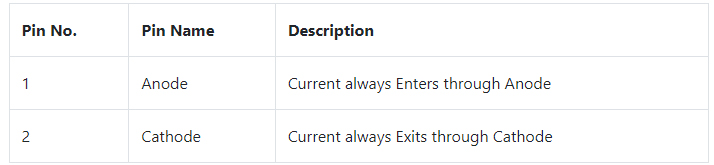

1N4001 is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.
For 1N4001 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. It can withstand reverse voltage peak up to 50V.
Average forward current is 1A
Non-repetitive Peak current is 30A
Reverse current is 5uA.
RMS reverse voltage is 35V
Peak repetitive Reverse voltage is 50V
Available in DO-41 Package
Symbol

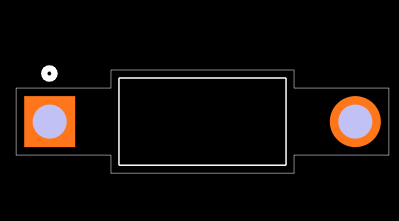

Footprint
3D Model
ON Semiconductor 1N4001 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4001.
ON Semiconductor 1N4001 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4001.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 2 days ago) | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-204AL (DO-41) | |
| Weight | 245mg | |
| Packaging | Tape & Reel (TR) | |
| Published | 1998 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 15pF | |
| Voltage - Rated DC | 50V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 1A | |
| Base Part Number | 1N4001 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 50V | |
| Power Dissipation | 3W | |
| Output Current | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | |
| Forward Current | 1A | |
| Operating Temperature - Junction | -55°C~175°C | |
| Max Surge Current | 30A | |
| Voltage - DC Reverse (Vr) (Max) | 50V | |
| Current - Average Rectified (Io) | 1A | |
| Forward Voltage | 1.1V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 50V | |
| Average Rectified Current | 1A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 50V | |
| Capacitance @ Vr, F | 15pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 30A | |
| Reverse Voltage | 50V | |
| Max Forward Surge Current (Ifsm) | 30A | |
| Diameter | 2.72mm | |
| Height | 5.2mm | |
| Length | 5.2mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Can be used to prevent reverse polarity problem
Half Wave and Full Wave rectifiers
Used as a protection device
Current flow regulators
1N4148, 1N4733A, 1N5408, 1N5822, Zener Diodes
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for ON Semiconductor 1N4001.
Download datasheets and manufacturer documentation for 1N4001
