The 1N4003 is a general-purpose usage diode that belongs to the 1N400X series.
1N4003 Rectifier Diode: Pinout, Datasheet, and 1N4003 vs 1N4007
RECTIFIER DIODE The 1N4003 is a general-purpose usage diode that belongs to the 1N400X series.
471
Aug 17, 2021
Lena Bauer
1N4003
Inquiry
Min.: 1 Mult.: 1
Quick Links
1N4003 Description
The 1N4003 is a general-purpose usage diode that belongs to the 1N400X series. It is a polarized axial-leaded device with a silver band denoting the cathode end of the diode. The 1N4003 can handle up to 200V reverse voltage and up to 1A of continuous current with a surge peak of 30A. It is often used for reverse voltage protection on DC input circuits and in many power applications such as DC-DC converters.
1N4003 Pinout
1N4003 CAD Model
Symbol

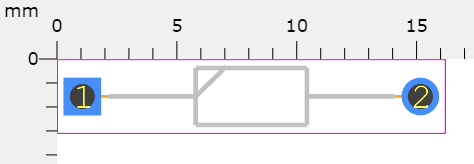

Footprint

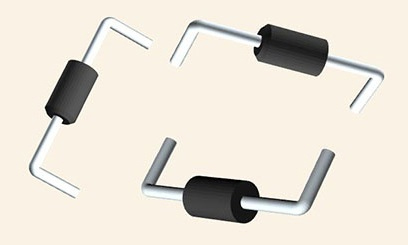

3D Model

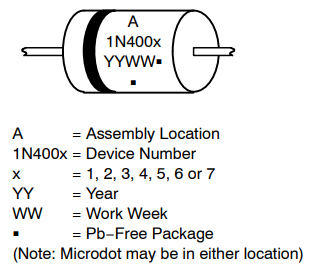

1N4003 Marking Diagram
1N4003 Features
-
Package Type: DO-41
-
Max Repetitive Reverse Voltage: 200 V
-
Non-repetitive Max Reverse Voltage: 240 V
-
Forward Voltage: 1.1 V
-
Average Forward Current: 1 A
-
Non-repetitive Max Fwd Current: 30 A
-
Reverse current: 5 µA
-
Max Power Dissipation: 3 W
-
Storage & Operating temperature: -55 to +175 Centigrade
1N4003 Advantages
-
Low cost construction
-
Low forward voltage drop
-
Low reverse leakage
-
High forward surge current capability
-
High temperature soldering guaranteed 260℃ /10 seconds, 0.375”(9.5 mm) lead length at 5 lbs(2.3kg) tension
Specifications
Rochester Electronics, LLC 1N4003 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC 1N4003.
1N4003 Tech Specifications
1N4003 Tech Specifications
Rochester Electronics, LLC 1N4003 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC 1N4003.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Surface Mount | NO | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 3W | |
| Packaging | Tape & Reel (TR) | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | HIGH RELIABILITY | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | unknown | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 2 | |
| JESD-30 Code | O-PALF-W2 | |
| Qualification Status | COMMERCIAL | |
| Configuration | SINGLE | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Reverse Leakage @ Vr | 5μA @ 200V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -55°C~175°C | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 200V | |
| Current - Average Rectified (Io) | 1A | |
| Rep Pk Reverse Voltage-Max | 200V | |
| Capacitance @ Vr, F | 15pF @ 4V 1MHz | |
| RoHS Status | ROHS3 Compliant |

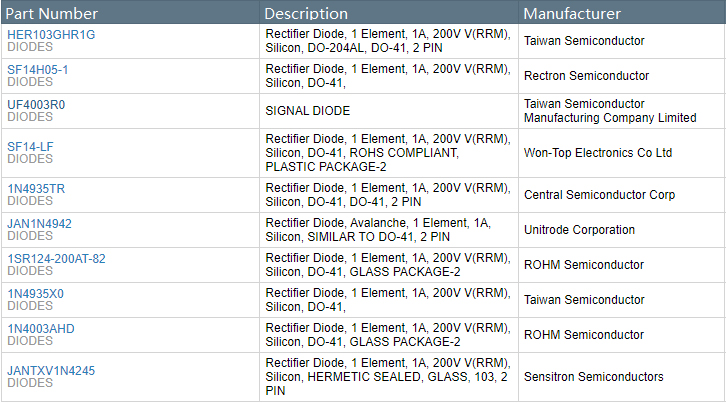

1N4003 Functional Alternatives
Where to use 1N4003
The 1N4003 diode can be used in many general-purpose applications. It can be used to build a bridge rectifier, an essential part of a DC power supply that converts AC to DC. It can also be used in clippers applications, reverse current blocking in various circuits to protect components, and logic gates, etc.
1N4003 Applications
-
Power Supply Rectifiers
-
Half Wave and Full Wave Rectifiers
-
Battery Chargers Circuits
-
Adapter Circuits
-
Inverters
-
AC to DC Converters
-
Components Protection
-
Voltage Blocking
-
Current Flow Regulators
-
Freewheeling Diodes Application
1N4003 Package
1N4003 Package & Dimensions
1N4003 Manufacturer
Rochester Electronics is the largest continuing source manufacturer of semiconductors in the world. With product licensing from leading manufacturers such as Analog Devices, Altera, Cypress, Fairchild, Freescale, Infineon, Intel, NXP, Renesas, and Texas Instruments, Rochester continues to manufacture and distribute mature products. For industrial, transportation, and hi-reliability markets, product life extension is critical for long-term production and maintenance. With over 100,000 products and 15 billion units in stock, no other company compares to our selection, capabilities, or solutions.
Frequently Asked Questions
1.What is 1N4003?
The 1N4003 is a general-purpose silicon Rectifier Diode, designed for low power and switching applications.
2.How to safely long run 1N4003 in a circuit?
To increase the usage life of 1N4003 diode it is suggested to not drive a load of more than 200V, do not drive more than 1A or 1000mA load, and always store or use the diode in temperature between -55 degrees centigrade to +175 degrees centigrade.
3.What is the difference between 1N4003 and 1N4007?
The main difference is the peak reverse voltage rating (there are other somewhat subtle differences). If you are absolutely certain that more than 200 VDC reverse bias is impossible in the circuit you can almost certainly use a 1N4003. The peak reverse voltage of 1N4007 is 1000 V.
FAQ
1.What is 1N4003?
The 1N4003 is a general-purpose silicon Rectifier Diode, designed for low power and switching applications.
2.How to safely long run 1N4003 in a circuit?
To increase the usage life of 1N4003 diode it is suggested to not drive a load of more than 200V, do not drive more than 1A or 1000mA load, and always store or use the diode in temperature between -55 degrees centigrade to +175 degrees centigrade.
3.What is the difference between 1N4003 and 1N4007?
The main difference is the peak reverse voltage rating (there are other somewhat subtle differences). If you are absolutely certain that more than 200 VDC reverse bias is impossible in the circuit you can almost certainly use a 1N4003. The peak reverse voltage of 1N4007 is 1000 V.
