DIODE GEN PURP 400V 1A DO41 1N4004 is a simple, subminiature size, axial lead mounted rectifier diode.
820
Jul 1, 2021
Bonnie Gissing
With a 1N4004 Diode
DIODE GEN PURP 400V 1A DO41

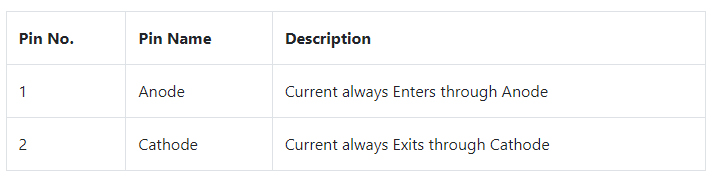

1N4004 is a simple, subminiature size, axial lead mounted rectifier diode. It is often used for reverse voltage protection, This blog covers pinout, datasheet, features, equivalent and other information about 1N4004.
1N4004
1N4004 is a Axial-Lead glass-passivated standard recovery rectifiers. For 1N4004 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. It can withstand reverse voltage peak up to 400V.
Symbol

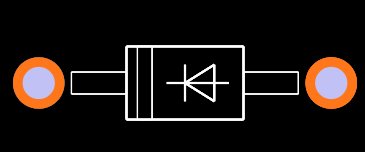

Footprint
3D Model
ON Semiconductor 1N4004 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4004.
ON Semiconductor 1N4004 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4004.
| Product Attribute | Attribute Value | |
|---|---|---|
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-204AL (DO-41) | |
| Weight | 245mg | |
| Manufacturer Package Identifier | MKT-DO41A | |
| Operating Temperature (Max) | 175°C | |
| Operating Temperature (Min) | -55°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2005 | |
| Part Status | LAST SHIPMENTS (Last Updated: 1 day ago) | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Capacitance | 15pF | |
| Voltage - Rated DC | 400V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 1A | |
| Base Part Number | 1N4004 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 400V | |
| Power Dissipation | 3W | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | |
| Current - Output | 1A | |
| Forward Current | 1A | |
| Operating Temperature - Junction | -55°C~175°C | |
| Max Surge Current | 30A | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 1A | |
| Forward Voltage | 1.1V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 400V | |
| Average Rectified Current | 1A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 400V | |
| Capacitance @ Vr, F | 15pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 30A | |
| Reverse Voltage | 400V | |
| Max Forward Surge Current (Ifsm) | 30A | |
| Diameter | 2.72mm | |
| Height | 5.2mm | |
| Length | 5.2mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Shipped in Plastic Bags, 1000 per bag
Available Tape and Reeled, 5000 per reel, by adding a “RL” suffix to the part number
Available in Fan−Fold Packaging, 3000 per box, by adding a “FF” suffix to the part number
Pb−Free Packages are Available
Can be used to prevent reverse polarity problem
Half Wave and Full Wave rectifiers
Used as a protection device
Current flow regulators
1N4002, 1N4148, 1N4733A, 1N5408, 1N5822, Zener Diodes.
• Case: Epoxy, Molded
• Weight: 0.4 gram (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds, 1/16 in. from case
• Polarity: Cathode Indicated by Polarity Band
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for ON Semiconductor 1N4004.
Download datasheets and manufacturer documentation for 1N4004
