1N4005 Diode: Datasheet, Pinout, and Equivalents

The 1N4005 is a general-purpose diode from the 1N400x family. It is widely used in electronic appliances for rectification purposes and also for other purposes such as voltage blocking, voltage boosting, etc.

The 1N4005 can handle up to 600V reverse voltage and up to 1A of continuous current with a surge peak of 30A. The reverse current is 5µA.

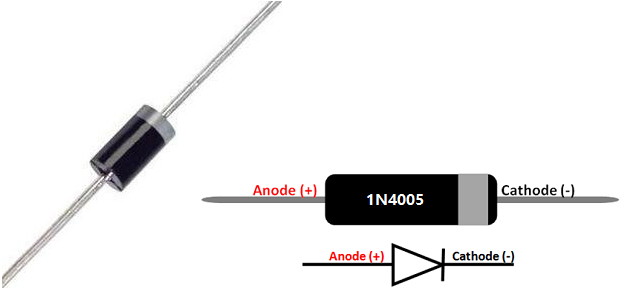

Symbol

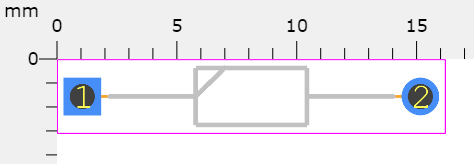

Footprint

3D Model

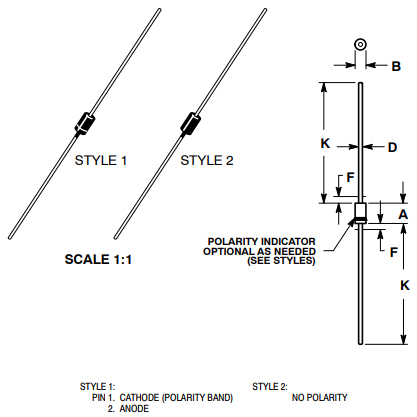

• Package Type: DO-204AL (DO-41)

• Diode Type: Silicon Rectifier General Usage Diode

• Max Repetitive Reverse Voltage: 600 V

• Reverse current: 5 µA

• Average Fwd Current: 1 A

• Max Non-repetitive Fwd Current: 30 A

• Max Power Dissipation: 3 W

• Storage & Operating temperature: -55 to +175 Centigrade

• Low-cost construction

• Low reverse leakage

• Low forward voltage drop

• High current capability

• High surge current capability

ON Semiconductor 1N4005 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4005.

1N4002, 1N4003, 1N4004, 1N4006, 1N4007, 1N4148, SF12, SF12, RL202, RL203 HER202, HER203, HER102, HER103, FR202, FR203, 1N4934, 1N4935

Please check the pin configuration and parameters before replacing them in your circuit.

The 1N4005 can be used in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes applications.

• Electronic Appliances Power Supplies

• Battery Chargers Circuits

• Adapters

• Converting AC to DC

• Protection of Components

• Blocking voltage

• Half Wave and Full Wave rectifiers

• Current flow regulators

• Used to prevent reverse polarity problem
