1N4006 Diode: Pinout, Datasheet, and 1N4006 vs 1N4007

The 1N4006 is a general-purpose diode from the 1N400x family. It can handle up to 800 V reverse voltage and up to 1 A of continuous current with a surge peak of 30 A. The 1N4006 is widely used in general-purpose low-power electronic appliances for rectification purposes and also for other purposes such as voltage blocking, voltage boosting, etc.

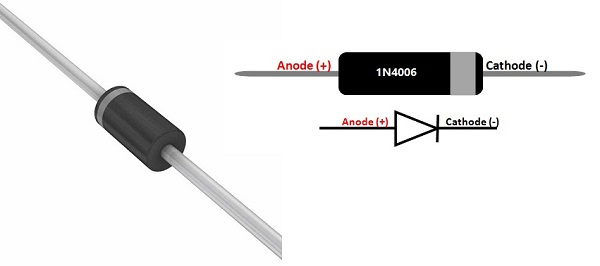

Symbol

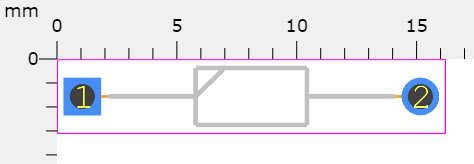

Footprint

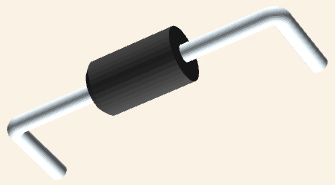

3D Model

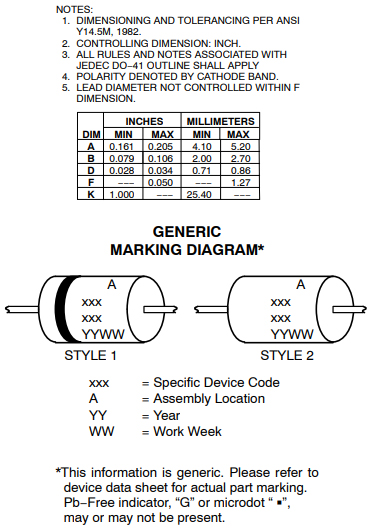

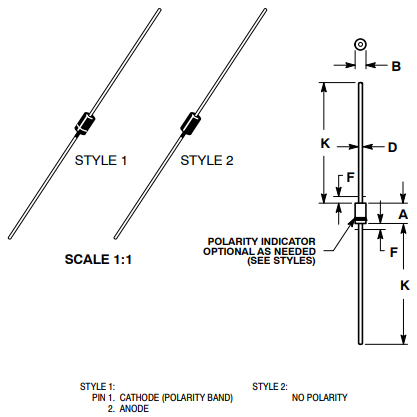

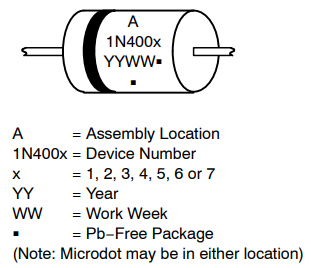

• Package Type: DO-204AL (DO-41)

• Diode Type: Silicon Rectifier General Usage Diode

• Max Repetitive Reverse Voltage: 800 V

• Max Reverse Current: 5 µA

• Average Fwd Current: 1 A

• Max Non-repetitive Fwd Current: 30 A

• Max Power Dissipation: 3 W

• Storage & Operating temperature: -55 to +175 Centigrade

• Low-cost construction

• Low reverse leakage

• Low forward voltage drop

• High current capability

• High surge current capability

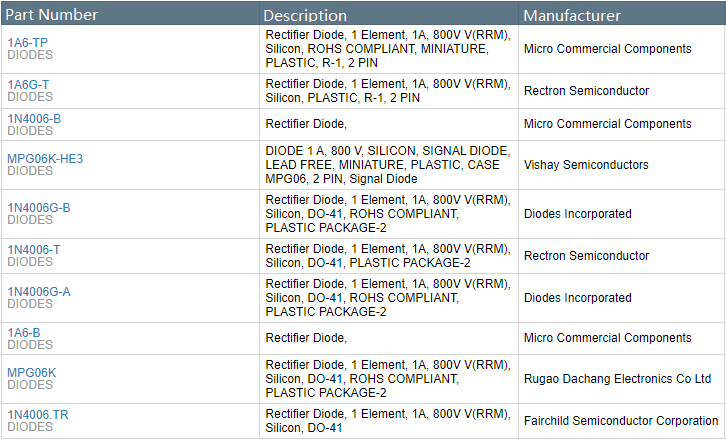

ON Semiconductor 1N4006 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4006.

RL207, RL206, HER208, HER207, HER158, HER157, HER108, HER107, FR207, FR206, FR157, FR156, FR107, FR106, EM520, EM516, EM513, BY133, 1U8, 1U7, 1N5399, 1N5398, 1N4007, 1A7, 1A6, UF4006, UF4007, 1N4006G, 1N4007G

Please check the pin configuration and parameters before replacing them in your circuit.

The 1N4006 can be used in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. It can also be used in any circuit where there is a need for voltage blocking, blocking voltage spikes, etc. Besides that, the 1N4006 can be used in digital logic circuits.

• Inverters

• Converters

• Power Supplies

• Battery Chargers

• Voltage Doublers

• Adapters

• Rectification

• Components protection

• Blocking incoming voltage

• Embedded systems for switching

• Freewheeling diodes application

ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.

Download datasheets and manufacturer documentation for ON Semiconductor 1N4006.
