Diodes - Rectifiers - Single Rectifier Diode Small Signal Switching 100V 0.3A 4ns 2-Pin DO-35 Bag The 1N4448 is a high-speed switching diode fabricated in planar technology and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages. This article will describe details about 1N4448 diode.
247
Nov 15, 2021
Fay Adam
How to protect circuits from reversed voltage polarity!
Diodes - Rectifiers - Single Rectifier Diode Small Signal Switching 100V 0.3A 4ns 2-Pin DO-35 Bag
The 1N4448 is a high-speed switching diode fabricated in planar technology and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages. This article will describe details about 1N4448 diode.
1N4448
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.09968 | $0.1 |
| 500+ | $0.0733 | $36.65 |
| 1000+ | $0.06108 | $61.08 |
| 2000+ | $0.05604 | $112.08 |
| 5000+ | $0.05237 | $261.85 |
| 10000+ | $0.04872 | $487.2 |
| 15000+ | $0.04711 | $706.65 |
| 50000+ | $0.04633 | $2316.5 |
The 1N4448 is a high-speed switching diode fabricated in planar technology and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.

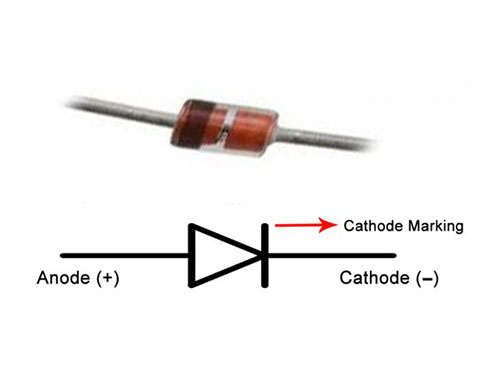

1N4448 Symbol
1N4448 Footprint
1N4448 3D Model
ON Semiconductor 1N4448 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4448.
ON Semiconductor 1N4448 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4448.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 18 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AH, DO-35, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-35 | |
| Weight | 126.01363mg | |
| Packaging | Bulk | |
| Published | 2016 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 2pF | |
| Voltage - Rated DC | 100V | |
| Max Power Dissipation | 500mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 200mA | |
| Base Part Number | 1N4448 | |
| Polarity | Standard | |
| Voltage | 75V | |
| Element Configuration | Single | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Current | 2A | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 75V | |
| Power Dissipation | 500mW | |
| Output Current | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA | |
| Forward Current | 300mA | |
| Operating Temperature - Junction | -65°C~175°C | |
| Max Surge Current | 4A | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 200mA | |
| Forward Voltage | 1V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 100V | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time | 4 ns | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 100V | |
| Capacitance @ Vr, F | 2pF @ 0V 1MHz | |
| Peak Non-Repetitive Surge Current | 4A | |
| Max Forward Surge Current (Ifsm) | 4A | |
| Recovery Time | 4 ns | |
| Max Junction Temperature (Tj) | 175°C | |
| Height | 1.91mm | |
| Length | 4.56mm | |
| Width | 1.91mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Mechanical Data of 1N4448
Case: DO-35 (DO-204AH)
Weight: approx. 125 mg
Cathode band color: black
Packaging codes / options:
TR/10K per 13" reel (52 mm tape), 50K/box
TAP/10K per ammo pack (52 mm tape), 50K/box
1N4448 Features
Package-Type: Available in DO-35 Glass and SMD Packages
Diode Type: Silicon Epitaxial Fast Switching Diode
Max Repetitive Reverse Voltage is: 100 Volts
Max Average Rectified Current is: 15A or 150mA
Max Power Dissipation is: 5W
Reverse Voltage is: 75V
Max Storage & Operating temperature should be: -65 to +175 Centigrade
1N4150, 1N4151, 1N4448WS, 1N914, 1N916A
High-speed switching
General switching
Rectification
Components protection
Blocking incoming voltage were not required
Signal filtering
The 1N4448 can be used in a variety of electronic applications, including converting AC to DC, blocking voltage spikes, and protecting electronic components from internal burnout or damage. It can also be utilized in digital logic circuits. Additionally, it works well in battery chargers, power supply, and voltage double circuits.
The 1N4448 can handle roughly 500mA, but the 1N4148 can only manage 200mA. At 1 Volt maximum, the forward voltage under load is nearly identical.
Most of the general-purpose switching diodes are made with the same wafer process with a little tweet and difference measurement parameters and screening parameters.
Technically, 1N4448 and 1N4148 are identical, but the current handling standards differ.
The package DO35 is technically limited in terms of current (power) handling. If 1N4448 can tolerate 500mA, 1N4148 can as well.
