Diodes - Zener - Single DIODE ZENER 15V 1W DO41 The 1N4744A is a Zener Diode for general use and is also suitable for many different applications. This article mainly introduces circuit, pinout, datasheet and other detailed information about ON Semiconductor 1N4744A.
137
Oct 14, 2021
Olive Walter
Diodes - Zener - Single DIODE ZENER 15V 1W DO41
The 1N4744A is a Zener Diode for general use and is also suitable for many different applications. This article mainly introduces circuit, pinout, datasheet and other detailed information about ON Semiconductor 1N4744A.
1N4744ATR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.33568 | $0.34 |
| 10+ | $0.31668 | $3.17 |
| 100+ | $0.29875 | $29.88 |
| 500+ | $0.28184 | $140.92 |
| 1000+ | $0.26589 | $265.89 |
The 1N4744A is a Zener Diode for general use and is also suitable for many different applications. Color band denotes the cathode end polarity. It has a 17mA Test current, 5µA at 11.4V Maximum reverse leakage current. Low voltage regulator diodes in hermetically sealed SOD66 (DO-41) packages. The series consists of 22 types with nominal working voltages from 3.3 to 24 V.
Symbol

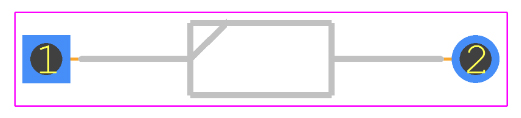

Footprint

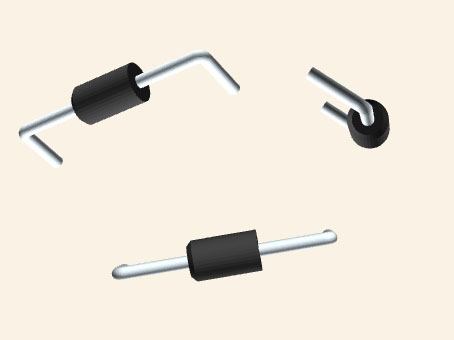

3D Model
• Total Power Dissipation: Max. 1000 mW
• 3.3V - 75V Nominal Zener Voltage
• Standard VZ Tolerance is 5%
• Lead-Free Finish, RoHS Compliant
• Small Hermetically Sealed Glass Package
ON Semiconductor 1N4744ATR technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N4744ATR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 18 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Material | Glass | |
| Weight | 245mg | |
| Number of Elements | 1 Element | |
| Operating Temperature | -65°C~200°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2009 | |
| Tolerance | ±5% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Power Rating | 1W | |
| Voltage - Rated DC | 15V | |
| Max Power Dissipation | 1W | |
| Terminal Form | WIRE | |
| Base Part Number | 1N4744 | |
| Working Voltage | 15V | |
| Polarity | UNIDIRECTIONAL | |
| Impedance | 14Ohm | |
| Element Configuration | Single | |
| Diode Type | ZENER DIODE | |
| Current - Reverse Leakage @ Vr | 5μA @ 11.4V | |
| Power Dissipation | 1W | |
| Output Current | 1.5A | |
| Case Connection | ISOLATED | |
| Max Reverse Leakage Current | 5μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Impedance-Max | 14Ohm | |
| Test Current | 17mA | |
| Reference Voltage | 15V | |
| Zener Voltage | 15V | |
| Voltage Tol-Max | 5% | |
| Peak Reverse Current | 5μA | |
| Voltage Tolerance | 5% | |
| ESD Protection | No | |
| Zener Current | 17mA | |
| Diameter | 2.72mm | |
| Height | 2.72mm | |
| Length | 5.2mm | |
| Width | 2.72mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

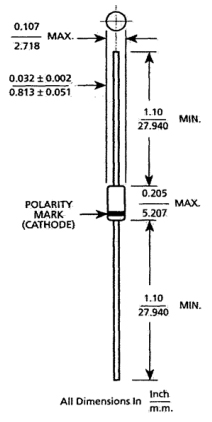

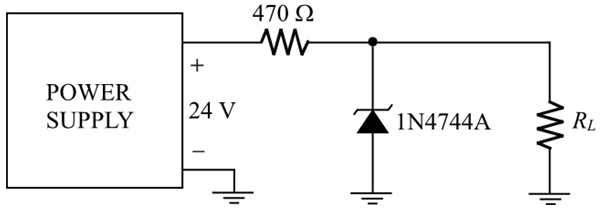

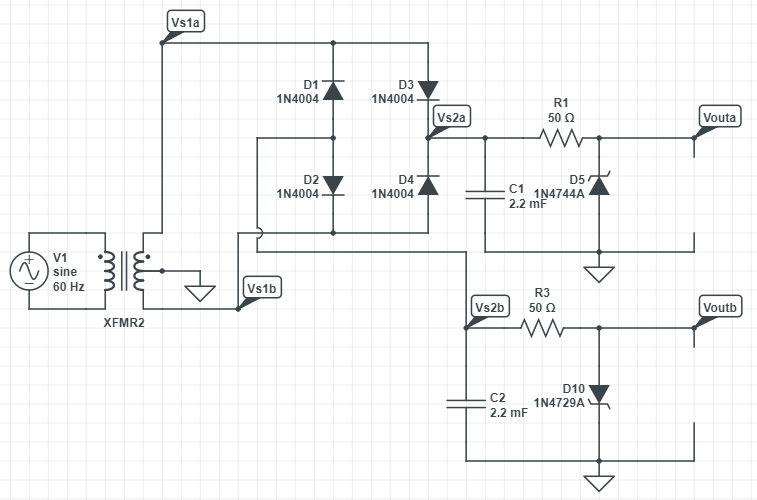

Power Supply Diagram
| Part Number | Description | Manufacturer |
| 1N4744A-TDIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, GLASS PACKAGE-2 | Diodes Incorporated |
| 1N4744A-T3DIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2 | Won-Top Electronics Co Ltd |
| 1N4744A-LFDIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 | Won-Top Electronics Co Ltd |
| MZP4744ARR1DIODES | 15V, 1W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41, PLASTIC, CASE 59-10, 2 PIN | onsemi |
| MQ1N4744APE3TRDIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASIC, DO-41, 2 PIN | Microsemi Corporation |
| 1N4744A-ADIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, GLASS PACKAGE-2 | Diodes Incorporated |
| 1N4744AGE3DIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-204AL, 2 PIN | Microsemi Corporation |
| 1N4744A(DO41)E3DIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, DO-41, 2 PIN | Microsemi Corporation |
| 1N4744A-T3-LFDIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 | Won-Top Electronics Co Ltd |
| 1N4744AE3DIODES | Zener Diode, 15V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN | Microsemi Corporation |
