The 1N5399 is a standard silicon rectifier diode with high current capability.
1N5399 Rectifier Diode: Pinout, Datasheet, and Specifications
DIODE GEN PURP 1KV 1.5A DO15 The 1N5399 is a standard silicon rectifier diode with high current capability.
371
Aug 14, 2021
Harold Lamb
1N5399
25515In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.13939 | $0.14 |
| 10+ | $0.1315 | $1.32 |
| 100+ | $0.12406 | $12.41 |
| 500+ | $0.11703 | $58.52 |
| 1000+ | $0.11041 | $110.41 |
Unit Price:$0.13939
Subtotal: $0.14
Quick Links
1N5399 Description
The 1N5399 is a standard silicon rectifier diode with high current capability. It comes in a DO-15 package. The 1N5399 is widely used in product development, student experiments, maintenance, production, etc.
1N5399 Pinout
1N5399 CAD Model
Symbol

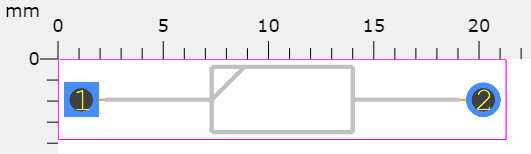

Footprint

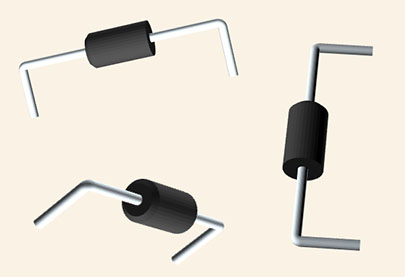

3D Model
1N5399 Features
-
Package Type: DO-15
-
Mounting Type: Through Hole
-
Max Repetitive Reverse Voltage: 1000 V
-
Peak Reverse Current: 5 µA
-
Average Fwd Current: 1.5 A
-
Forward Voltage: 1.4 V
-
Power Dissipation: 4.8 W
-
Max Storage & Operating temperature: -55 to +150 Centigrade
1N5399 Advantages
-
Fast switching for high efficiency
-
High current capability
-
High surge current capability
-
High reliability
-
Low reverse current
-
Low forward voltage drop
Specifications
ON Semiconductor 1N5399 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5399.
1N5399 Tech Specifications
1N5399 Tech Specifications
ON Semiconductor 1N5399 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5399.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AC, DO-15, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-15 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 25pF | |
| Voltage - Rated DC | 1kV | |
| Current Rating | 1.5A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | 1N5399 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 1000V | |
| Power Dissipation | 4.8W | |
| Output Current | 1.5A | |
| Voltage - Forward (Vf) (Max) @ If | 1.4V @ 1.5A | |
| Forward Current | 1.5A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 50A | |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Average Rectified (Io) | 1.5A | |
| Forward Voltage | 1.4V | |
| Max Reverse Voltage (DC) | 1kV | |
| Average Rectified Current | 1.5A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV | |
| Capacitance @ Vr, F | 25pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 50A | |
| Reverse Voltage | 1kV | |
| Max Forward Surge Current (Ifsm) | 50A | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
1N5399 Applications
-
General-purpose rectification of power supplies
-
Inverters
-
Converters
-
Freewheeling diodes
1N5399 Package
1N5399 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor 1N5399.
1N5399 Documents
1N5399 Documents
Download datasheets and manufacturer documentation for 1N5399
ReachStatement
Fairchild-Semiconductor-company-9.pdf
Frequently Asked Questions
1.What is 1N5399?
The 1N5399 is a Standard Diode with axial leads, molded plastic case, and color band denotes cathode end polarity. Solderable terminals as per MIL-STD-202, method 208 standards. 70V Maximum RMS voltage. 1000V Maximum DC blocking voltage. 10V Maximum instantaneous forward voltage at 1.5A.
2.Can I replace 1N5399 with 1N4007?
Only if the current through the 1N4007 does not exceed 1A (amended), the 1N5399 is 1.5A.
FAQ
1.What is 1N5399?
The 1N5399 is a Standard Diode with axial leads, molded plastic case, and color band denotes cathode end polarity. Solderable terminals as per MIL-STD-202, method 208 standards. 70V Maximum RMS voltage. 1000V Maximum DC blocking voltage. 10V Maximum instantaneous forward voltage at 1.5A.
2.Can I replace 1N5399 with 1N4007?
Only if the current through the 1N4007 does not exceed 1A (amended), the 1N5399 is 1.5A.
