DIODE GEN PURP 100V 3A DO201AD
1N5401 is a Standard Recovery Rectifier designed for use in power supplies and other applications. This article enforces datasheet, pinout, features, equivalents, and more details about 1N5401 diodes. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
1N5401

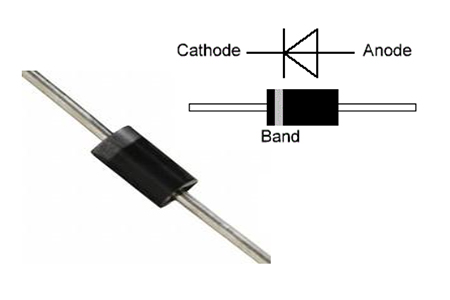

Symbol
Symbol

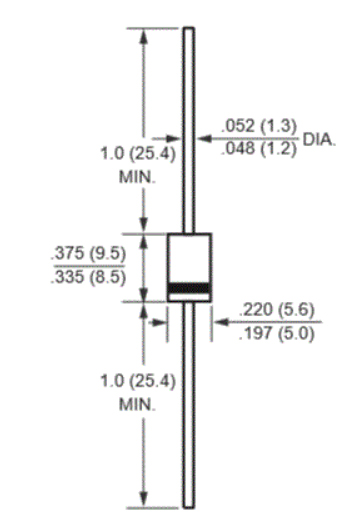

Footprint
Footprint
1N5401 is an axially leaded general-purpose rectifier in a DO-201AD package. It has a low leakage rate and a high current capacity. Vrrm is the maximum repeated reverse voltage. The IFSM of 200A is a non-repetitive forward surge current. If(AV) has a forward current of 3A.
ON Semiconductor 1N5401 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5401.
ON Semiconductor 1N5401 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5401.
| Product Attribute | Attribute Value | |
|---|---|---|
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-201AD | |
| Weight | 4.535924g | |
| Packaging | Tape & Reel (TR) | |
| Published | 2000 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -65°C | |
| Capacitance | 30pF | |
| Voltage - Rated DC | 100V | |
| Current Rating | 3A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | 1N5401 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 100V | |
| Power Dissipation | 6.25W | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 3A | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 200A | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 3A | |
| Forward Voltage | 1.2V | |
| Max Reverse Voltage (DC) | 100V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 3A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 100V | |
| Capacitance @ Vr, F | 30pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 200A | |
| Reverse Voltage | 100V | |
| Max Forward Surge Current (Ifsm) | 200A | |
| Diameter | 5.6mm | |
| Height | 5.6mm | |
| Length | 9.5mm | |
| Width | 5.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
High Current to Small Size
High Surge Current Capability
Low Forward Voltage Drop
Void-Free Economical Plastic Package
Available in Volume Quantities
Plastic Meets UL 94V-0 for Flammability
Maximum Recurrent Peak Reverse Voltage - 100 V
Maximum Average Forward Output Current - 3 A
Maximum Forward Voltage Drop per element at 1.0A DC - 1.1 V
Typical Junction Capacitance 40 pF
Package - DO-27
Weight 1.18 grams
Operating and Storage Temperature Range -65...+175 °C
1N5401 is designed for general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.
P600M, P600K, P600J, P600G, P600D, P600B, HER508, HER507, HER506, HER505, HER504, HER503, HER502, HER308, HER307, HER306, HER305, HER304, HER303, HER302, FR607, FR606, FR605, FR604, FR603, FR602, FR307, FR306, FR305, FR304, FR303, FR302, BY255, BY254, BY253, BY252, BY251, 6A8, 6A6, 6A4, 6A2, 6A10, 6A1, 1N5408, 1N5407, 1N5406, 1N5404, 1N5402, SF32, SF33, SF34, SF35, SF36, SF38, SF52, SF53, SF54, SF55, SF56, SF58, UF5401, UF5402, UF5404, UF5406, UF5407, UF5408, 1N5403, 1N5405, 1N5401G, 1N5402G, 1N5403G, 1N5404G, 1N5405G, 1N5406G, 1N5407G, 1N5408G
| Compare | Manufacturers | Category | Description |
| Current Part | Diotec Semiconductor | Diodes | Rectifier Diode, 1 Phase, 1Element, 3A, 100V V(RRM), Silicon, DO-201, ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| 1N5401 VS GP30B-E3/54 | Vishay Semiconductor | TVS Diodes | DIODE 3A, 100V, SILICON, RECTIFIER DIODE, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode |
| 1N5401 VS GP30B-E3/73 | Vishay Semiconductor | TVS Diodes | DIODE 3A, 100V, SILICON, RECTIFIER DIODE, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode |
| 1N5401 VS 1N5401-E3/73 | Vishay Semiconductor | TVS Diodes | DIODE 3A, 100V, SILICON, RECTIFIER DIODE, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode |
ON Semiconductor is a semiconductor supplier company, formerly in the Fortune 500, but dropping into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications.
Download datasheets and manufacturer documentation for 1N5401
