Diodes - Rectifiers - Single DIODE GEN PURP 200V 3A DO201AD
94
Nov 2, 2021
Ternence Stevenson
Diodes - Rectifiers - Single DIODE GEN PURP 200V 3A DO201AD
The 1N5402 is a power diode because of its high forward current and reverse voltage with a power dissipation of 6.25W. For 1N5402 Diode, the maximum current carrying capacity is 3A it withstands peaks up to 200A. This article mainly introduces features, pinout, datasheet and other detailed information about Diodes Incorporated 1N5402.
1N5402-T

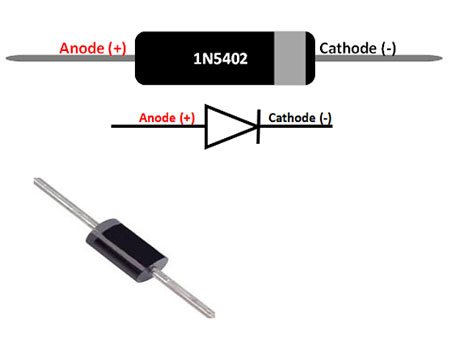

Pinout
| Pin Number | Pin Name | Description |
| 1 | Anode | Current always Enters through Anode |
| 2 | Cathode | Current always Exits through Cathode |
Symbol
Footprint

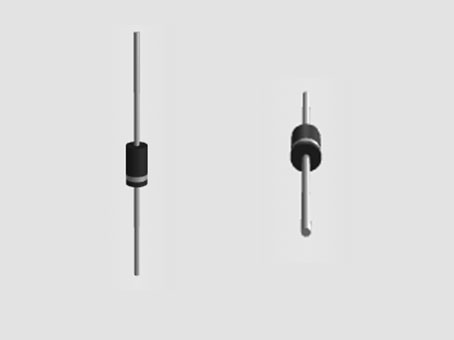

3D Model
• Diffused Junction
• High Current Capability and Low Forward Voltage Drop
• Surge Overload Rating to 200A Peak
• Low Reverse Leakage Current
• Lead-Free Finish, RoHS Compliant
• Average Forward Current is 3A
• Forward Voltage Drop is 1.2V
• Non-repetitive Peak Current is 200A
• Peak Reverse Current is 10uA
• Repetitive Reverse Voltage is 200V
• Maximum RMS Voltage is 140V
• Available in DO-201 Package
Diodes Incorporated 1N5402-T technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated 1N5402-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Weight | 1.09999g | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2006 | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Terminal Finish | Matte Tin (Sn) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Applications | GENERAL PURPOSE |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8541.10.00.80 | |
| Capacitance | 50pF | |
| Voltage - Rated DC | 200V | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 3A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | 1N5402 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 200V | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 3A | |
| Case Connection | ISOLATED | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -65°C~150°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Surge Current | 200A | |
| Forward Voltage | 1V | |
| Max Reverse Voltage (DC) | 200V | |
| Average Rectified Current | 3A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 10μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 200V | |
| Capacitance @ Vr, F | 50pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 200A | |
| Reverse Voltage (DC) | 200V | |
| Diameter | 5.3mm | |
| Height | 5.3mm | |
| Length | 9.5mm | |
| Width | 5.3mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
P600M, HER508, FR307, BY255, 6A10, UF5408
| Part Number | Description | Manufacturer |
| 1N5402-E3/4HDIODES | DIODE 3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD, PLASTIC PACKAGE-2, Rectifier Diode | Vishay Semiconductors |
| 1N5402GM28DIODES | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, | Rectron Semiconductor |
| 1N5402GU26DIODES | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, | Rectron Semiconductor |
| 1N5402/60DIODES | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2 | Vishay Semiconductors |
| 1N5402TRLEADFREEDIODES | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, | Central Semiconductor Corp |
• Can Be Used to Prevent Reverse Polarity Problem
• HV Supplies
• Half Wave and Full Wave Rectifiers
• Used As a Protection Device
• Current Flow Regulators

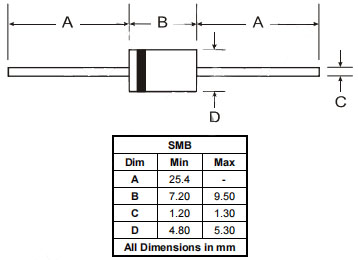

Package
Diodes Incorporated (Nasdaq: DIOD) is a Standard & Poor's Smallcap 600 and Russell 3000 Index company that manufactures and supplies high-quality application-specific standard products in the discrete, logic, analog, and mixed-signal semiconductor sectors. Diodes serve the consumer electronics, computing, telecommunications, industrial, and automotive markets.
