DIODE GEN PURP 400V 3A DO201AD Hello, everyone. This is Rose. Today we will have a discussion about 1N5404.
176
Aug 21, 2021
James Elinor
DIODE GEN PURP 400V 3A DO201AD
Hello, everyone. This is Rose. Today we will have a discussion about 1N5404. 1N5404 is a power diode because of its high forward current and reverse voltage with a power dissipation of 6.25W.This article mainly introduce pinout, price, datasheet and other detailed information about On Semiconductor 1N5404.

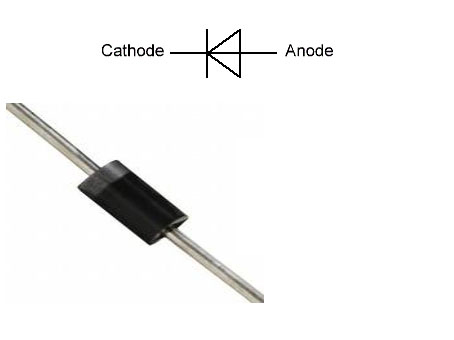

1N5404
The 1N5404 is a power diode because of its high forward current and reverse voltage with a power dissipation of 6.25W. For 1N5404 Diode, the maximum current carrying capacity is 3A it withstand peaks up to 200A. Hence we can use this in circuits that are designed for less than 3A. The reverse current is 10uA which is negligible. These diodes have a slow recovery time so in modern electronics it is being replaced by other advanced diodes.

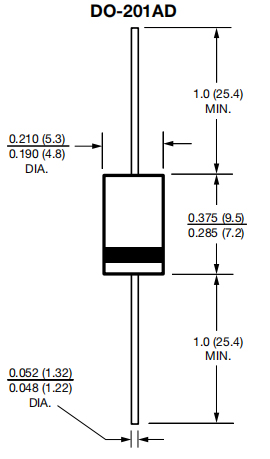

Footprint
3D Model
-Average forward output current: 3A(Maximum)
-Forward voltage drop:1.2V
-Non-repetitive peak current:200A
-Peak reverse current:10uA
-Maximum recurrent peak reverse voltage :400V
-Maximum RMS voltage: 280V
-Available package：DO-201
-Maximum forward voltage drop per element at 1.0A DC - 1.1 V
-Typical junction capacitance 40 pF
-Weight:1.18 grams
-Operating and storage temperature range -55°C~150 °C

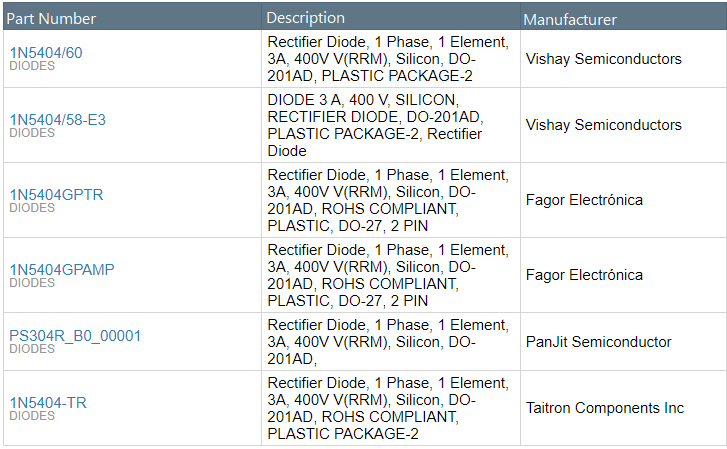

ON Semiconductor 1N5404 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5404.
ON Semiconductor 1N5404 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5404.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 day ago) | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-201AD | |
| Weight | 360mg | |
| Breakdown Voltage / V | 400V | |
| Packaging | Tape & Reel (TR) | |
| Published | 2000 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 30pF | |
| Voltage - Rated DC | 400V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 3A | |
| Base Part Number | 1N5404 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 400V | |
| Power Dissipation | 6.25W | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 3A | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 200A | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 3A | |
| Forward Voltage | 1.2V | |
| Max Reverse Voltage (DC) | 400V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 3A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 400V | |
| Capacitance @ Vr, F | 30pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 200A | |
| Reverse Voltage | 400V | |
| Max Forward Surge Current (Ifsm) | 200A | |
| Diameter | 5.6mm | |
| Height | 5.6mm | |
| Length | 9.5mm | |
| Width | 5.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
●Used to prevent reverse polarity problem
●Used in HV supplies
●Used in half wave and full wave rectifiers
●Used as a protection device
●Used in current flow regulators
ON Semiconductor is a semiconductor supplier company. Products include power and signal management, logic, discrete and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. ON Semiconductor operates a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and Asia Pacific.
Download datasheets and manufacturer documentation for ON Semiconductor 1N5404.
Download datasheets and manufacturer documentation for 1N5404
