DIODE GEN PURP 600V 3A DO201AD 1N5406 is a standard recovery rectifier with a current at 600 V, 3.0 A. This article mainly covers the datasheet, specifications, equivalents, power, and other details about the 1N5406 standard recovery rectifier.
2381
Sep 18, 2021
Horace Frederick
DIODE GENERAL PURPOSE DIODE
DIODE GEN PURP 600V 3A DO201AD
1N5406 is a standard recovery rectifier with a current at 600 V, 3.0 A. This article mainly covers the datasheet, specifications, equivalents, power, and other details about the 1N5406 standard recovery rectifier. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
1N5406

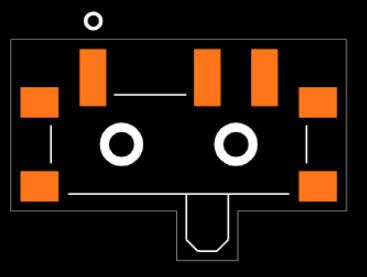

Footprint
The 1N5406 is a standard Rectifier Diode with lead-free tin-plated terminals, UL94V-0 flame-rated molded plastic case, and cathode band polarity. Its solderable terminals are as per mil-std-202, method 208 standards. 1n5406 features high current capability, low forward voltage drop, and low reverse leakage current.
High Current to Small Size
High Surge Current Capability
Low Forward Voltage Drop
Void-Free Economical Plastic Package
Available in Volume Quantities
Plastic Meets UL 94V-0 for Flammability
ON Semiconductor 1N5406 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5406.
ON Semiconductor 1N5406 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5406.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 3 days ago) | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-201AD | |
| Weight | 360mg | |
| Breakdown Voltage / V | 600V | |
| Packaging | Tape & Reel (TR) | |
| Published | 2000 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Capacitance | 30pF | |
| Voltage - Rated DC | 600V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 3A | |
| Base Part Number | 1N5406 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 600V | |
| Power Dissipation | 6.25W | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 3A | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 200A | |
| Voltage - DC Reverse (Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 3A | |
| Forward Voltage | 1.2V | |
| Max Reverse Voltage (DC) | 600V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 3A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 600V | |
| Capacitance @ Vr, F | 30pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 200A | |
| Reverse Voltage | 600V | |
| Max Forward Surge Current (Ifsm) | 200A | |
| Diameter | 5.6mm | |
| Height | 6.35mm | |
| Length | 9.5mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Case: Epoxy, Molded
Weight: 1.1 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes: 220°C Max. For 10 Seconds, 1/16" from case

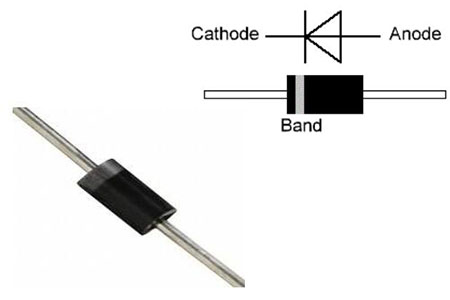

Polarity: Cathode Indicated by Polarity Band
1N5406 rectifier diodes are generally used for the conversion of AC (alternating current) to DC (direct current). 1n5406 diodes are optimized concerning low conduction losses and can handle very large currents. Avalanche diodes are self-protected against transient over-voltages.
P600M, P600K, P600J, HER508, HER507, HER506, HER308, HER307, HER306, FR607, FR606, FR605, FR307, FR306, FR305, BY255, BY254, BY253, 6A8, 6A6, 6A10, 1N5408, 1N5407, SF38, SF58, UF5406, UF5407, UF5408, 1N5406G, 1N5407G, 1N5408G

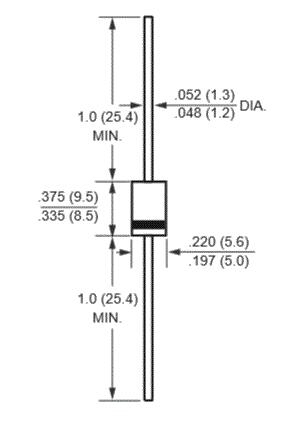

1N5406 Dimensions
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to several patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at ON Semiconductor reserves the right to make changes without further notice to any products herein.
Download datasheets and manufacturer documentation for 1N5406
