1N5407 Diode: Datasheet, Equivalent, 1N5407 vs.1N5408 [Video]

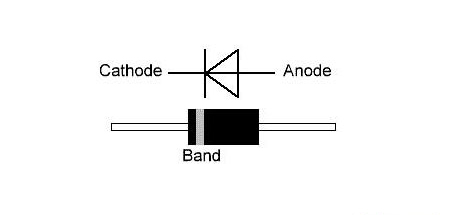

Pin Description:

The cathode (-) and anode (+) of the 1N5407 diode are opposite each other. The cathode is the tip of the triangle with the line on top of it in the schematic symbol. A band marks the cathode on the diode's body, as shown above.

The 1N5407 diode is similar to a one-way electric valve in that current can only travel from the anode to the cathode and never from the cathode to the anode.

1N5407 Footprint

1N5407 3D Model

The 1N5407 is a single standard Power Diode with axial leads and moulded plastic case. The power diode features low forward voltage drop, high reliability and high surge current capability. The colour band denotes cathode end polarity.

• High Current to Small Size

• High Surge Current Capability

• Low Forward Voltage Drop

• Void–Free Economical Plastic Package

• Available in Volume Quantities

• Plastic Meets UL 94V–0 for Flammability

• Power Management

The equivalent for 1N5407:

• P600M

• P600K

• HER508

• HER507

• HER308

• HER307

• FR607

• FR606

• FR307

• FR306

• BY255

• BY254

• 6A8

• 6A10

• 1N5408

• UF5407

• UF5408

• 1N5407G

• 1N5408G

ON Semiconductor 1N5407 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5407.

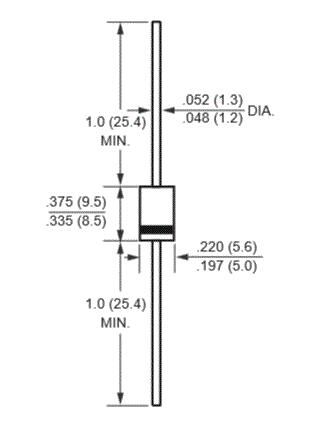

1N5407 Dimension
