Hello everyone! Hope you’re good today. I welcome you on board. In this article today, I’ll be discussing 1n5408 diode.Just stay with me for a little while as I’ll walk you through the 1n5408 diode pinout, alternatives, features, applications and so on.Let’s begin!
1N5408

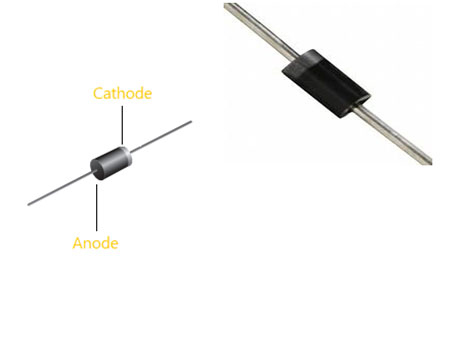

1N5408 is a diode of 1N540x series. It is a power diode. It can be considered as an electronic check valve that allows current to flow in one direction only. It flows from the anode terminal to the cathode terminal. It carries low resistance in one direction and very high resistance in another direction. There are two terminals on the diode which name are anode and cathode. They are attached to the p-n junction. The cathode terminal is identified by the grey colored band.
For 1N5408 Diode, it comes with a peak reverse current of 10uA while forward voltage drop is equal to 1A. The maximum current carrying capacity is 3A it withstand peaks up to 200A. Hence we can use this in circuits that are designed for less than 3A. The reverse current is 10uA which is negligible. These diodes have a slow recovery time so in modern electronics it is being replaced by other advanced diodes.

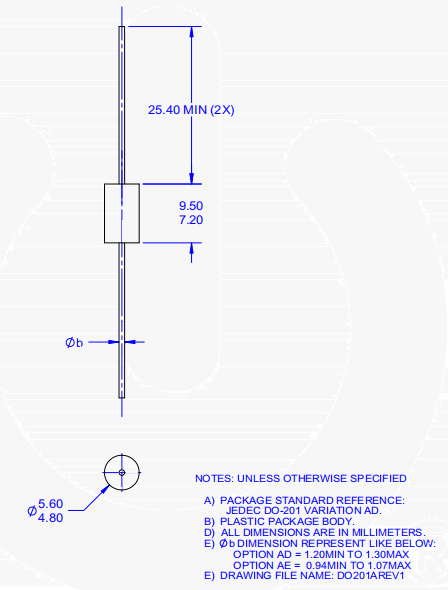

It is manufactured in DO201 package that is a slightly bigger package from DO-41 but can be used in replacement of many DO-41 diodes if slightly bigger space is available.
It is also an ideal diode if you are looking for a little bit more ampere handling capabilities as compare to DO-41 diodes for example 1N4007, 1N4148 etc. In most applications you can replace these diodes with 1N5408 to get more forward current.

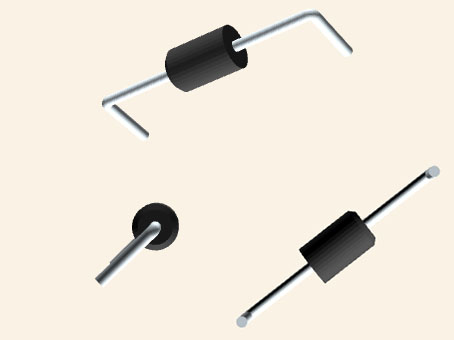

Symbol
Footprint
3D Model
• Small size and high current
• High surge current capability
• Low forward pressure drop
• No void economical plastic package
• Bulk supply
• Plastic meets UL 94V-0 flammability

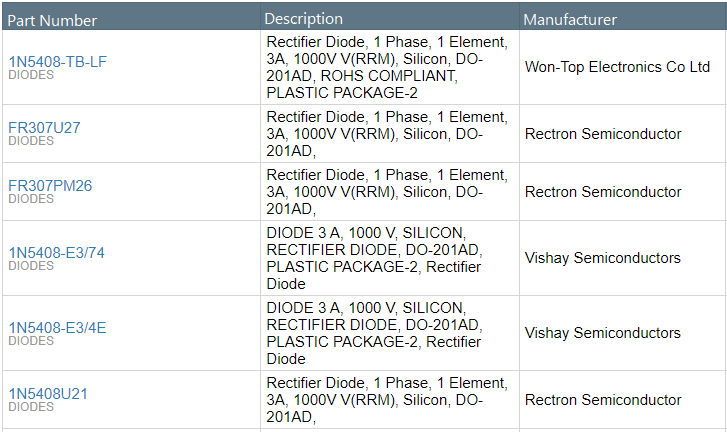

ON Semiconductor 1N5408 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5408.
ON Semiconductor 1N5408 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 1N5408.
| Product Attribute | Attribute Value | |
|---|---|---|
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-201AD | |
| Weight | 4.535924g | |
| Packaging | Tape & Reel (TR) | |
| Published | 2000 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -65°C | |
| Capacitance | 30pF | |
| Voltage - Rated DC | 1kV | |
| Current Rating | 3A | |
| Base Part Number | 1N5408 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity | Standard | |
| Voltage | 1kV | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Current | 3A | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 1000V | |
| Power Dissipation | 6.25W | |
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 3A | |
| Forward Current | 3A | |
| Operating Temperature - Junction | -55°C~150°C | |
| Max Surge Current | 200A | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Current - Average Rectified (Io) | 3A | |
| Forward Voltage | 1.2V | |
| Max Reverse Voltage (DC) | 1kV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 3A | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV | |
| Capacitance @ Vr, F | 30pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 200A | |
| Reverse Voltage | 1kV | |
| Max Forward Surge Current (Ifsm) | 200A | |
| Diameter | 5.6mm | |
| Height | 5.6mm | |
| Length | 9.5mm | |
| Width | 5.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
1N5408 can be used in many applications, mainly for rectification in battery chargers, power supplies, boosters, etc. But in addition, it can also be used for any general purpose application, which can block current in the circuit in the desired direction, block voltage spikes, etc.
★ Prevent reverse polarity problem
★ Half Wave and Full Wave rectifiers
★ Protection device
★ Current flow regulators
★ Used in HV supplies
ON Semiconductor is a semiconductor supplier company. Products include power and signal management, logic, discrete and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. ON Semiconductor operates a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and Asia Pacific.
Download datasheets and manufacturer documentation for ON Semiconductor 1N5408.
Download datasheets and manufacturer documentation for 1N5408
