The 1N5817 is a Schottky diode with a high switching speed and a low forward voltage drop. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
1N5817 Schottky Diode: Pinout, Datasheet, and Alternatives
DIODE SCHOTTKY 20V 1A DO41 The 1N5817 is a Schottky diode with a high switching speed and a low forward voltage drop. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
335
Jun 24, 2021
Beacher Coffey
1N5817
50000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.22923 | $0.23 |
| 10+ | $0.21625 | $2.16 |
| 100+ | $0.20401 | $20.4 |
| 500+ | $0.19246 | $96.23 |
| 1000+ | $0.18157 | $181.57 |
Unit Price:$0.22923
Subtotal: $0.23
Quick Links
1N5817 Description
The 1N5817 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

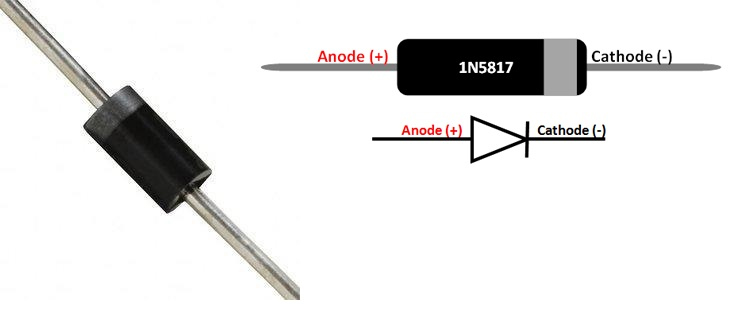

1N5817 Pinout
1N5817 CAD Model
Symbol
Footprint
3D Model
1N5817 Features
-
Schottky Rectifier Diode
-
Average forward current is 1A
-
Forward Surge Current is 25A
-
Forward Voltage Drop 450mV at 1A
-
Reverse Voltage is 20V
-
Peak Reverse Voltage: 20V
-
Available in DO-41 Package
1N5817 Advantages
-
Low profile, axial leaded outline
-
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
-
Very small conduction losses
-
Negligible switching losses
-
Extremely fast switching
-
Low forward voltage drop
-
Avalanche capability specified
-
High frequency operation
-
Guard ring for enhanced ruggedness and long term reliability
-
Lead-Free plating
Specifications
STMicroelectronics 1N5817 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5817.
1N5817 Tech Specifications
1N5817 Tech Specifications
STMicroelectronics 1N5817 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5817.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 110pF | |
| Voltage - Rated DC | 20V | |
| Terminal Form | WIRE | |
| Current Rating | 1A | |
| Base Part Number | 1N58 | |
| Pin Count | 2 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 20V | |
| Output Current | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 450mV @ 1A | |
| Case Connection | ISOLATED | |
| Forward Current | 1A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Leakage Current | 500μA | |
| Operating Temperature - Junction | 150°C Max | |
| Max Surge Current | 25A | |
| Forward Voltage | 450mV | |
| Max Reverse Voltage (DC) | 20V | |
| Average Rectified Current | 1A | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 20V | |
| Peak Non-Repetitive Surge Current | 25A | |
| Max Forward Surge Current (Ifsm) | 25A | |
| Height | 2.7mm | |
| Length | 5.2mm | |
| Width | 2.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
1N5817 Alternatives
1N5817 Applications
-
Can be used to prevent reverse polarity problem
-
High Frequency Inverters
-
Used as a protection device
-
Current flow regulators
-
Polarity Protection applications

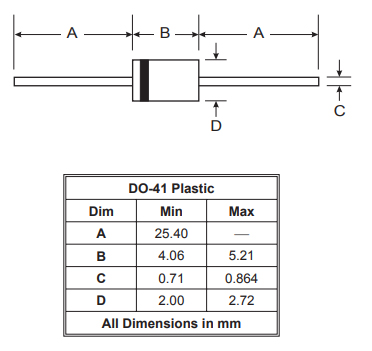

1N5817 Dimensions
1N5817 Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics 1N5817.
1N5817 Documents
1N5817 Documents
Download datasheets and manufacturer documentation for 1N5817
Frequently Asked Questions
1.How do you read numbers on a diode?
The "1" identifies the component as a diode. The "N" shows the material in the device is a semiconductor. Decode the model code. The number after the diode and material-designation codes is the model or part number.
2.What happens if you put a diode in backwards?
Reverse bias usually refers to how a diode is used in a circuit. If a diode is reverse biased, the voltage at the cathode is higher than that at the anode. Therefore, no current will flow until the electric field is so high that the diode breaks down.
3.How does a diode behave in a circuit?
Current passing through a diode can only go in one direction, called the forward direction. Current trying to flow the reverse direction is blocked. They're like the one-way valve of electronics. If the voltage across a diode is negative, no current can flow, and the ideal diode looks like an open circuit.
FAQ
1.How do you read numbers on a diode?
The "1" identifies the component as a diode. The "N" shows the material in the device is a semiconductor. Decode the model code. The number after the diode and material-designation codes is the model or part number.
2.What happens if you put a diode in backwards?
Reverse bias usually refers to how a diode is used in a circuit. If a diode is reverse biased, the voltage at the cathode is higher than that at the anode. Therefore, no current will flow until the electric field is so high that the diode breaks down.
3.How does a diode behave in a circuit?
Current passing through a diode can only go in one direction, called the forward direction. Current trying to flow the reverse direction is blocked. They're like the one-way valve of electronics. If the voltage across a diode is negative, no current can flow, and the ideal diode looks like an open circuit.
