1N5818 Description
The 1N5817, 1N5818, and 1N5819 are a family of low-drop 1 A Schottky rectifier diodes. The 1N5818 is known as a hot-carrier diode that is employed for extremely fast switching applications. Packaged in DO-41, the 1N5818 is intended for use in low voltage, high-frequency inverters, freewheeling, polarity protection, and small battery chargers.
1N5818 CAD Model
Symbol
1N5818 Symbol

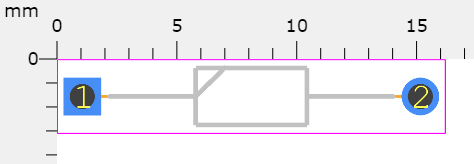

Footprint
1N5818 Footprint

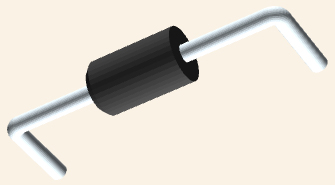

3D Model
1N5818 3D Model
1N5818 Pinout
1N5818 Features
-
Diode Type: Schottky
-
Package Type: DO-41 (DO-204)
-
Max Reverse Voltage: 30 V
-
Max Reverse Current: 500 µA
-
Average Forward Current: 1 A
-
Max Non-repetitive Forward Current: 25 A
-
Forward Voltage: 875 mV
-
Operating Temperature: -65 to +150 Centigrade
1N5818 Advantages
-
Very small conduction losses
-
Negligible switching losses
-
Extremely fast switching
-
Low forward voltage drop
-
Avalanche capability specified
-
Guardring for overvoltage protection
-
High-frequency operation
Specifications
STMicroelectronics 1N5818 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5818.
1N5818 Tech Specifications
1N5818 Tech Specifications
STMicroelectronics 1N5818 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5818.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 110pF | |
| Voltage - Rated DC | 30V | |
| Terminal Form | WIRE | |
| Current Rating | 1A | |
| Base Part Number | 1N58 | |
| Pin Count | 2 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 30V | |
| Output Current | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 1A | |
| Case Connection | ISOLATED | |
| Forward Current | 1A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Leakage Current | 500μA | |
| Operating Temperature - Junction | 150°C Max | |
| Max Surge Current | 25A | |
| Forward Voltage | 875mV | |
| Max Reverse Voltage (DC) | 30V | |
| Average Rectified Current | 1A | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 30V | |
| Peak Non-Repetitive Surge Current | 25A | |
| Max Forward Surge Current (Ifsm) | 25A | |
| Height | 2.7mm | |
| Length | 5.2mm | |
| Width | 2.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Where to use 1N5818
The 1N5818 axial leaded Schottky rectifier has been optimized for high forward surge capability and very low forward drop voltage, making it a suitable pick for high-frequency applications. Typical applications are in switching power supplies, high-frequency DC-to-DC converters, free-wheeling diodes, and reverse battery protection.
1N5818 Applications
-
Radio frequency applications
-
Solar systems
-
Control the electronic charge
-
High-frequency and low voltage inverters
-
Sample-and-hold circuits
-
Signal detection
-
Extremely fast switching applications
-
Polarity protection
-
DC/DC converters
-
Freewheeling
-
Logic circuits
1N5818 Package
1N5818 Package Outline
1N5818 Mechanical Data
1N5818 Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics 1N5818.
1N5818 Documents
1N5818 Documents
Download datasheets and manufacturer documentation for 1N5818
Frequently Asked Questions
1.What is 1N5818?
The 1N5817, 1N5818, and 1N5819 are a family of low-drop 1 A Schottky rectifier diodes. The 1N5818 is known as a hot-carrier diode that is employed for extremely fast switching applications. Packaged in DO-41, the 1N5818 is intended for use in low voltage, high-frequency inverters, freewheeling, polarity protection, and small battery chargers.
2.What is the difference between diode and Schottky diode?
One of the primary advantages of using a Schottky diode over a regular diode is its low forward voltage drop. This allows a Schottky diode to consume less voltage than a standard diode, using only 0.3-0.4V across its junctions. The conventional diode consumes 0.7V, leaving only 1.3V to power the load.
3.Can I replace a diode with any diode?
Diodes can always be replaced with those of higher capacity since a component with greater current capacity can always handle the lower current. One needs to check its PIV, and sometimes the forward voltage drop. A transistor can be replaced by a larger one, provided its characteristics are permissible for the circuit.
4.Can I replace 1N5818 with 1N5819?
Yes, you can replace 1N5818 with 1N5819. They are from the same series and the only difference is that 1N5819 has a higher reverse voltage.
FAQ
1.What is 1N5818?
The 1N5817, 1N5818, and 1N5819 are a family of low-drop 1 A Schottky rectifier diodes. The 1N5818 is known as a hot-carrier diode that is employed for extremely fast switching applications. Packaged in DO-41, the 1N5818 is intended for use in low voltage, high-frequency inverters, freewheeling, polarity protection, and small battery chargers.
2.What is the difference between diode and Schottky diode?
One of the primary advantages of using a Schottky diode over a regular diode is its low forward voltage drop. This allows a Schottky diode to consume less voltage than a standard diode, using only 0.3-0.4V across its junctions. The conventional diode consumes 0.7V, leaving only 1.3V to power the load.
3.Can I replace a diode with any diode?
Diodes can always be replaced with those of higher capacity since a component with greater current capacity can always handle the lower current. One needs to check its PIV, and sometimes the forward voltage drop. A transistor can be replaced by a larger one, provided its characteristics are permissible for the circuit.
4.Can I replace 1N5818 with 1N5819?
Yes, you can replace 1N5818 with 1N5819. They are from the same series and the only difference is that 1N5819 has a higher reverse voltage.
