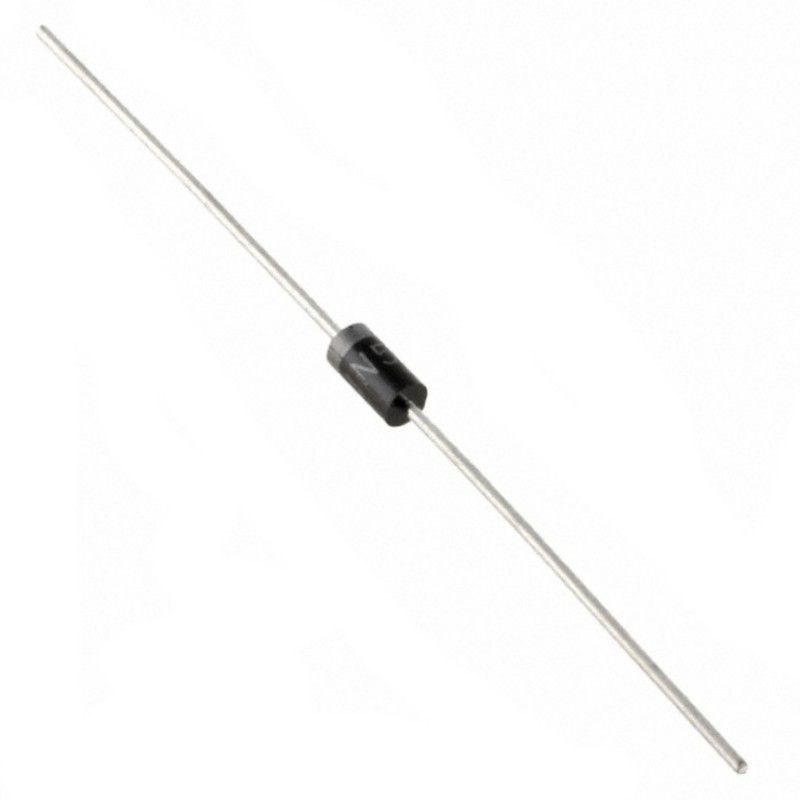

DIODE SCHOTTKY 40V 1A DO41
The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
1N5819 Schottky Diode: Pinout, Datasheet, and Advantages
DIODE SCHOTTKY 40V 1A DO41 The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
339
Jun 22, 2021
Paula
1N5819
1000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.2208 | $0.22 |
| 10+ | $0.2083 | $2.08 |
| 100+ | $0.19651 | $19.65 |
| 500+ | $0.18539 | $92.7 |
| 1000+ | $0.17489 | $174.89 |
Unit Price:$0.2208
Subtotal: $0.22
Quick Links
1N5819 Description
The 1N5819 is a Schottky Diode with a low forward voltage drop of 600mV and a forward current of 1A. Its low forward voltage drop made it easily applicable in reverse polarity protection circuits. Compared to normal diodes, Schottky diode also has relatively faster switching speeds, and hence can be used in high frequency switching circuits.

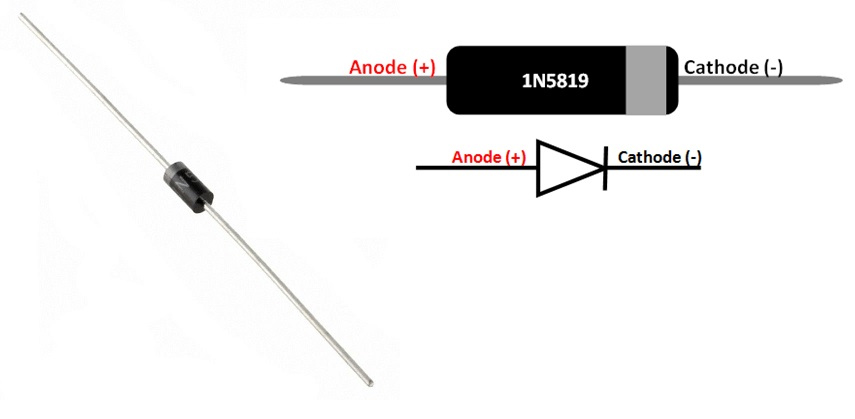

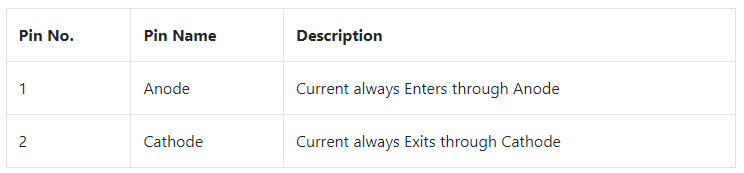

1N5819 Pinout
1N5819 CAD Model
Symbol

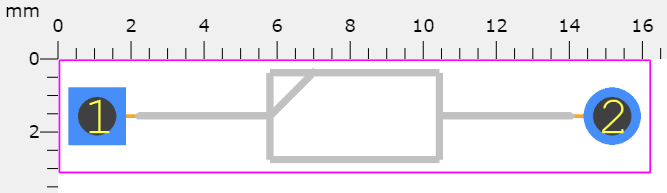

Footprint

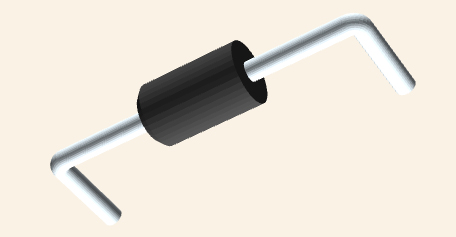

3D Model
1N5819 Features
-
Very small conduction losses
-
Negligible switching losses
-
Extremely fast switching
-
Low forward voltage drop
-
Avalanche capability specified
Specifications
STMicroelectronics 1N5819 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5819.
1N5819 Tech Specifications
1N5819 Tech Specifications
STMicroelectronics 1N5819 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 1N5819.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Additional Feature | FREE WHEELING DIODE |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8541.10.00.80 | |
| Capacitance | 110pF | |
| Voltage - Rated DC | 40V | |
| Terminal Form | WIRE | |
| Current Rating | 1A | |
| Base Part Number | 1N58 | |
| Pin Count | 2 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500μA @ 40V | |
| Output Current | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 1A | |
| Case Connection | ISOLATED | |
| Forward Current | 1A | |
| Max Reverse Leakage Current | 500μA | |
| Operating Temperature - Junction | 150°C Max |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Surge Current | 25A | |
| Forward Voltage | 550mV | |
| Max Reverse Voltage (DC) | 40V | |
| Average Rectified Current | 1A | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 40V | |
| Peak Non-Repetitive Surge Current | 25A | |
| Max Forward Surge Current (Ifsm) | 25A | |
| Diameter | 2.71mm | |
| Height | 2.7mm | |
| Length | 5.2mm | |
| Width | 2.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

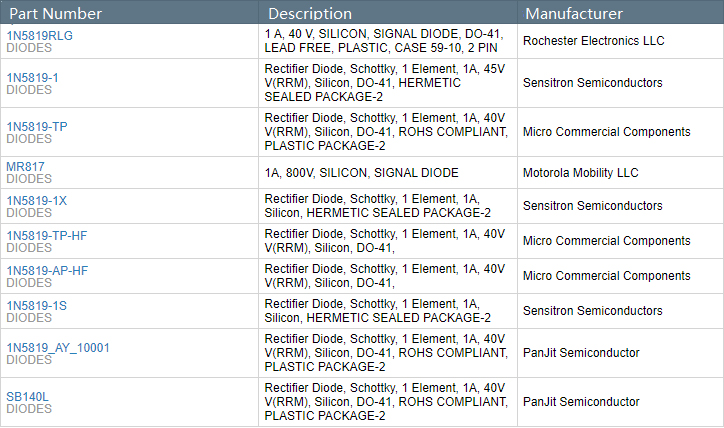

1N5819 Alternatives
1N5819 Applications
-
Can be used to prevent reverse polarity problem
-
High Frequency Inverters
-
Used as a protection device
-
Current flow regulators
-
Polarity Protection applications

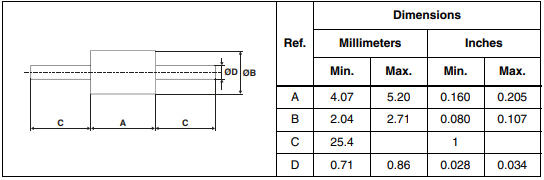

1N5819 Package
1N5819 Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics 1N5819.
1N5819 Documents
1N5819 Documents
Download datasheets and manufacturer documentation for 1N5819
Frequently Asked Questions
1.What is 1N5819?
The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
2.What is a Schottky diode used for?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
3.What is the positive side of a diode?
Anode. On a physical diode, you'll notice two terminals extending from a tin can shape in the middle. One side is the positive terminal, called the anode. The other terminal is the negative end, called the cathode.
4.What is the working principle of Schottky diode?
In a Schottky diode, a semiconductor–metal junction is formed between a semiconductor and a metal, thus creating a Schottky barrier. The N-type semiconductor acts as the cathode and the metal side acts as the anode of the diode. This Schottky barrier results in both a low forward voltage drop and very fast switching.
5.How do you test a Schottky diode?
Connect the red positive test lead to the anode of the Schottky diode and the black common test lead to the cathode of the diode. Listen for a “beep” or a “buzz” from the multimeter. If the Schottky diode responds as expected, the multimeter will sound a tone.
FAQ
1.What is 1N5819?
The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high frequency applications like Inverters, DC-DC converters etc.
2.What is a Schottky diode used for?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
3.What is the positive side of a diode?
Anode. On a physical diode, you'll notice two terminals extending from a tin can shape in the middle. One side is the positive terminal, called the anode. The other terminal is the negative end, called the cathode.
4.What is the working principle of Schottky diode?
In a Schottky diode, a semiconductor–metal junction is formed between a semiconductor and a metal, thus creating a Schottky barrier. The N-type semiconductor acts as the cathode and the metal side acts as the anode of the diode. This Schottky barrier results in both a low forward voltage drop and very fast switching.
5.How do you test a Schottky diode?
Connect the red positive test lead to the anode of the Schottky diode and the black common test lead to the cathode of the diode. Listen for a “beep” or a “buzz” from the multimeter. If the Schottky diode responds as expected, the multimeter will sound a tone.
