1N5820 is a low drop power Schottky rectifier. This article mainly covers the datasheet, features, pinout, and other details about 1N5820.
1N5820 Rectifier: Datasheet, Features and Applications
DIODE SCHOTTKY 20V 3A DO201AD 1N5820 is a low drop power Schottky rectifier.
52
Aug 25, 2021
Claire Aldington
1N5820
Inquiry
Min.: 1 Mult.: 1
Quick Links
1N5820 Pinout
1N5820 CAD Model

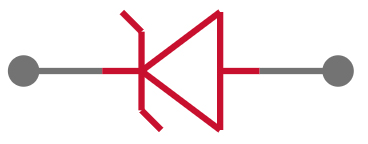

Symbol
Footprint
3D Model
1N5820 Description
1N5820 is an Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high-frequency DC to DC converters. It is packaged in DO-201AD these devices are intended for use in low voltage, high-frequency inverters, freewheeling, polarity protection, and small battery chargers.

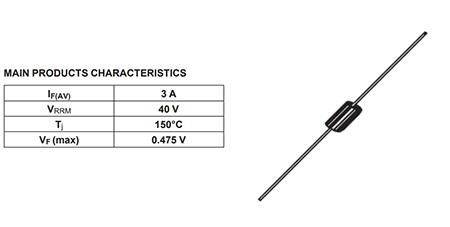

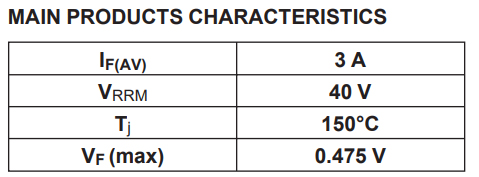

1N5820 Main Characteristics
1N5820 Features and Benefits
-
Very Small Conduction Losses
-
Negligible Switching Losses
-
Extremely Fast Switching
-
Low Forward Voltage Drop
-
Avalanche Capability Specified
1N5820 Applications
It can control the electronic charge. 1N5820 is used in DC/DC converters and polarity protection applications. Incorporated in freewheeling and logic circuits, it is also used for signal detection and radio frequency applications.

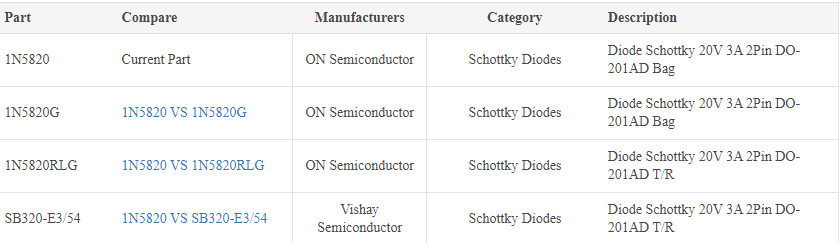

1N5820 Alternatives
Where to use 1N5820
It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, freewheeling diodes, and polarity protection diodes.

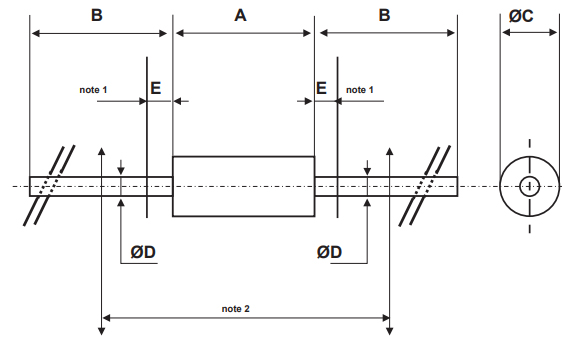

1N5820 Package
1N5820 Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
1N5820 Documents
1N5820 Documents
Download datasheets and manufacturer documentation for 1N5820
Frequently Asked Questions
What is 1N5820 Rectifier used for?
It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, freewheeling diodes, and polarity protection diodes.
What is 1N5820 diode used for in electronics?
1N5820 can control the electronic charge. 1N5820 is used in DC/DC converters and polarity protection applications. Incorporated in freewheeling and logic circuits, it is also used for signal detection and radio frequency applications.
How does 1N5820 diode work?
The 1N5820 Schottky diode is formed when metal is combined with the semiconductor material that results in the formation of a barrier. Low forward drop voltage means less energy is released as heat that makes these diodes suitable for the applications where high efficiency is required.
FAQ
What is 1N5820 Rectifier used for?
It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, freewheeling diodes, and polarity protection diodes.
What is 1N5820 diode used for in electronics?
1N5820 can control the electronic charge. 1N5820 is used in DC/DC converters and polarity protection applications. Incorporated in freewheeling and logic circuits, it is also used for signal detection and radio frequency applications.
How does 1N5820 diode work?
The 1N5820 Schottky diode is formed when metal is combined with the semiconductor material that results in the formation of a barrier. Low forward drop voltage means less energy is released as heat that makes these diodes suitable for the applications where high efficiency is required.
