Diode Switching 75V 0.2A 2-Pin DO-35
Hello Everybody! I always love to keep your stomach filled with useful information so you can excel and grow in your professional field. Today, I am going to reveal the details on the Introduction to 1N914.1N914 is a switching/signal diode. This article mainly introduce its alternatives, features and datasheet.
1N914
This 1N914 JEDEC registered switching/signal diode features internal metallurgical bonded construction for military grade products per MIL-PRF-19500/116.
This small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-35 package.
It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc.

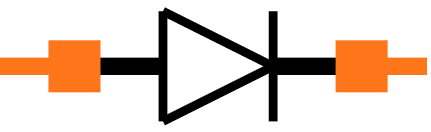

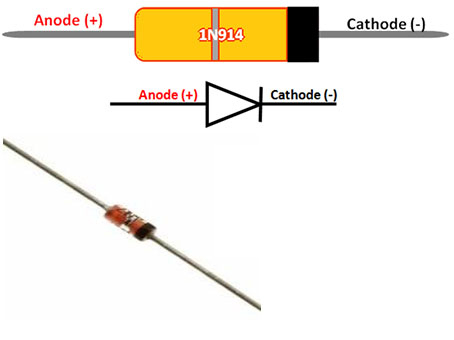

Symbol
Footprint

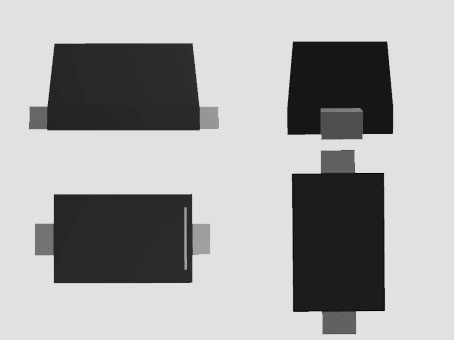

3D Model

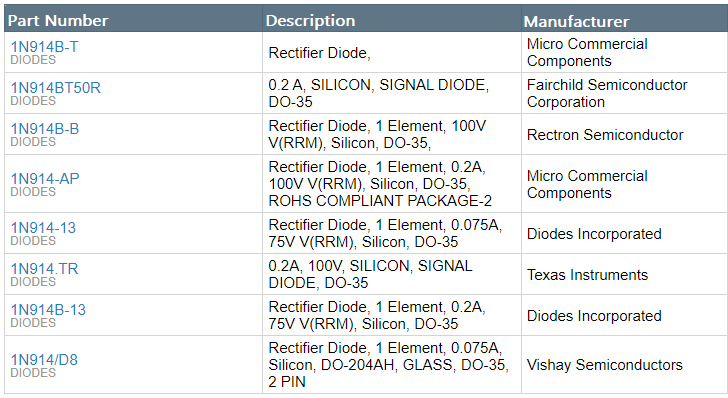

Microsemi Corporation 1N914 technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation 1N914.
Microsemi Corporation 1N914 technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation 1N914.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AH, DO-35, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-35 (DO-204AH) | |
| Packaging | Bulk | |
| Published | 1999 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C | |
| Element Configuration | Single | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 500nA @ 75V | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 50mA | |
| Operating Temperature - Junction | -65°C~175°C | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) | 200mA | |
| Forward Voltage | 1.2V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Voltage (DC) | 75V | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time | 20 ns | |
| Peak Reverse Current | 500nA | |
| Max Repetitive Reverse Voltage (Vrrm) | 75V | |
| Capacitance @ Vr, F | 4pF @ 0V 1MHz | |
| Peak Non-Repetitive Surge Current | 2A | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant |
● Prevent reverse polarity problem
● Half Wave and Full Wave rectifiers
● Protection device
● Current flow regulators
● Industrial applications.
● Power management and portable devices
● It is useful for the demodulation of AM (amplitude modulated) radio signal.
● Temperature sensing device
Microsemi Corporation was an Aliso Viejo, California-based provider of semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets. Products include high-performance and radiation-hardened analog mixed-signal integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and synchronization devices and precise time solutions, setting the world's standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication solutions, security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services.
Download datasheets and manufacturer documentation for Microsemi Corporation 1N914.
