1PS79SB30 is Schottky barrier single diode. This post will unlock its pinout, datasheet, application, feature and more details about 1PS79SB30.
1PS79SB30 Single Diode: Schottky, 40V, 200mA, Datasheet PDF
DIODE SCHOTTKY 40V 200MA SOD523 1PS79SB30 is Schottky barrier single diode. This post will unlock its pinout, datasheet, application, feature and more details about 1PS79SB30.
54
Jan 28, 2022
Borg Landon
1PS79SB30,135
10000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.0867 | $0.09 |
| 500+ | $0.06375 | $31.88 |
| 1000+ | $0.05312 | $53.12 |
| 2000+ | $0.04874 | $97.48 |
| 5000+ | $0.04555 | $227.75 |
| 10000+ | $0.04237 | $423.7 |
| 15000+ | $0.04098 | $614.7 |
| 50000+ | $0.04029 | $2014.5 |
Unit Price:$0.0867
Subtotal: $0.09
Quick Links

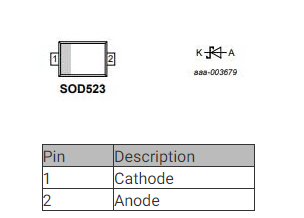

1PS79SB30 Pinout

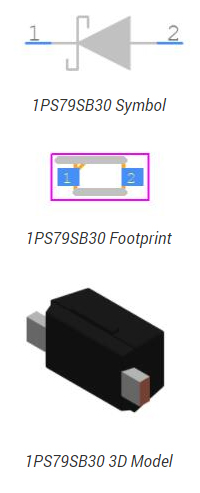

1PS79SB30 CAD Model
1PS79SB30 Description
1PS79SB30 is a Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra-small Surface Mounted Device (SMD) plastic package.
1PS79SB30 Application
• Ultra high-speed switching
• Voltage clamping
• Blocking diodes
1PS79SB30 Feature
• Very low forward voltage
• Very low reverse current
• Guard ring protected
• Ultra small SMD package
• AEC-Q101 qualified
1PS79SB30 Alternative
The alternative for 1PS79SB30
-
1PS79SB30,135
-
1PS79SB30,115
-
1PS79SB30T/R
Specifications
1PS79SB30,135 Tech Specifications
1PS79SB30,135 Tech Specifications
Nexperia USA Inc. 1PS79SB30,135 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. 1PS79SB30,135.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-79, SOD-523 | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2010 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| HTS Code | 8541.10.00.70 | |
| Terminal Position | DUAL | |
| Terminal Form | FLAT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | 1PS79SB30 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 500nA @ 25V | |
| Voltage - Forward (Vf) (Max) @ If | 600mV @ 200mA | |
| Forward Current | 200mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Reverse Leakage Current | 500nA | |
| Operating Temperature - Junction | 150°C Max | |
| Max Surge Current | 1A | |
| Current - Average Rectified (Io) | 200mA DC | |
| Forward Voltage | 600mV | |
| Max Reverse Voltage (DC) | 40V | |
| Average Rectified Current | 200mA | |
| Peak Reverse Current | 500nA | |
| Max Repetitive Reverse Voltage (Vrrm) | 40V | |
| Capacitance @ Vr, F | 20pF @ 1V 1MHz | |
| Peak Non-Repetitive Surge Current | 1A | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |

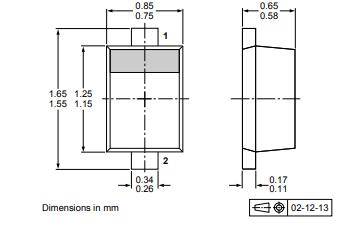

1PS79SB30 Package
1PS79SB30 Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
