What Is EEPROM?
IC EEPROM 16K SPI 10MHZ 8MSOP
The Microchip Technology Inc. 25AA160D is 16 Kbit Serial Electrically Erasable PROM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
25AA160D-E/MS
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.05286 | $1.05 |
| 10+ | $0.99326 | $9.93 |
| 100+ | $0.93704 | $93.7 |
| 500+ | $0.884 | $442 |
| 1000+ | $0.83396 | $833.96 |

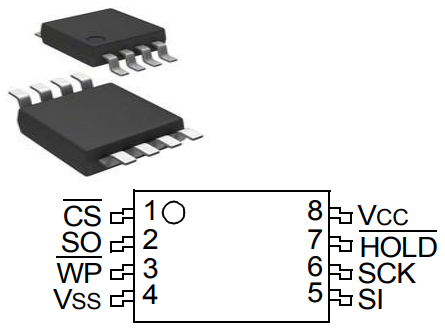

The following figure is the diagram of 25AA160D Pinout.
Pinout
The followings are 25AA160D Symbol, Footprint, and 3D Model.
Symbol

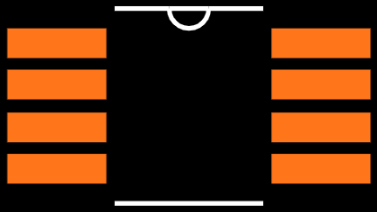

Footprint

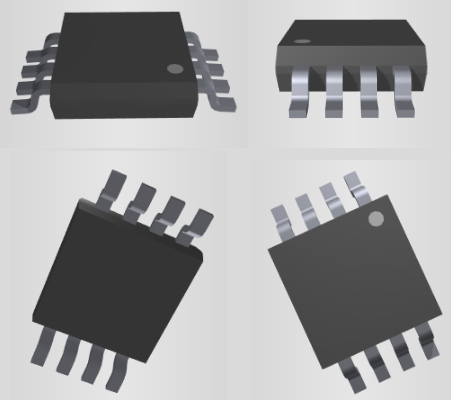

3D Model
The Microchip Technology Inc. 25AA160D is 16 Kbit Serial Electrically Erasable PROM. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts. The 25XX160C/D is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, TSSOP, and 2x3 TDFN. All packages are Pb-free and RoHS compliant.
This article provides you with a basic overview of the 25AA160D 16K SPI Bus Serial EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what 25AA160D is.
● Max. Clock 10 MHz
● Low-Power CMOS Technology:
◆ Max. write current: 5 mA at 5.5V
◆ Read current: 5 mA at 5.5V, 10 MHz
◆ Standby current: 5 uA at 5.5V
● 2048 x 8-bit Organization
● 16-Byte Page (‘C’ version devices)
● 32-Byte Page (‘D’ version devices)
● Self-Timed Erase and Write Cycles (5 ms max.)
● Block Write Protection:
◆ Protect none, 1/4, 1/2 or all of array
● Built-In Write Protection:
◆ Power-on/off data protection circuitry
◆ Write enable latch
◆ Write-protect pin
● Sequential Read
● High Reliability:
◆ Endurance: > 1M erase/write cycles
◆ Data retention: > 200 years
◆ ESD protection: > 4000V
● Temperature Ranges Supported:
◆ Industrial (I): -40 ℃ to +85 ℃
◆ Automotive (E): -40 °C to +125 °C
● Pb-Free and RoHS Compliant
Microchip Technology 25AA160D-E/MS technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology 25AA160D-E/MS.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | |
| Surface Mount | YES | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tube | |
| Published | 2013 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 8Terminations | |
| Voltage - Supply | 1.8V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Pitch | 0.635mm | |
| Base Part Number | 25AA160D | |
| JESD-30 Code | R-PDSO-G8 | |
| Qualification Status | Not Qualified | |
| Power Supplies | 2/5V | |
| Interface | SPI, Serial | |
| Memory Size | 16Kb 2K x 8 | |
| Clock Frequency | 10MHz | |
| Memory Format | EEPROM |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Interface | SPI | |
| Organization | 2KX8 | |
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Standby Current-Max | 0.000001A | |
| Memory Density | 16384 bit | |
| Serial Bus Type | SPI | |
| Endurance | 1000000 Write/Erase Cycles | |
| Data Retention Time-Min | 200 | |
| Write Protection | HARDWARE/SOFTWARE | |
| RoHS Status | ROHS3 Compliant |
The following is the Block Diagram of 25AA160D.
Block Diagram
| Model number | Manufacturer | Description |
| 25AA160TIST | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDSO8, TSSOP-8 |
| 25AA160-E/P | Microchip Technology Inc | SPI BUS SERIAL EEPROM |
| 25AA160D-I/MS | Microchip Technology Inc | 1K X 8 SPI BUS SERIAL EEPROM, PDSO8, PLASTIC, MSOP-8 |
| 25AA160B-E/P | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 |
| 25AA160B-I/ST | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 |
| 25AA160D-I/P | Microchip Technology Inc | 1K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8 |
| 25AA160P | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8 |
| 25AA160T/SNB63 | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOIC-8 |
| 25AA160BT-I/ST | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 |
| 25AA160TST | Microchip Technology Inc | 2K X 8 SPI BUS SERIAL EEPROM, PDSO8, TSSOP-8 |

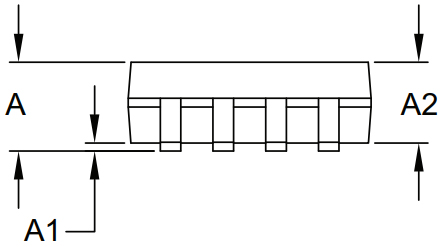

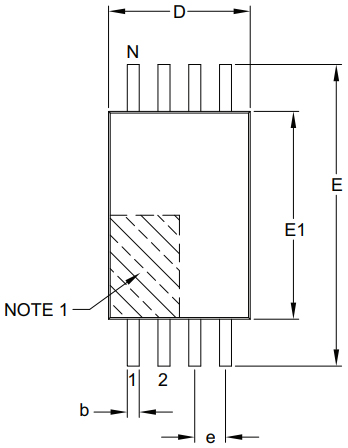

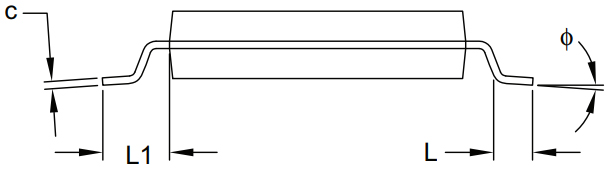

The following diagrams show the 25AA160D Package.
View A
View B
View C

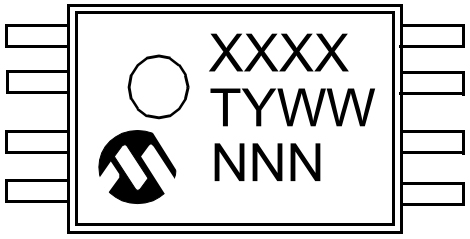

The following diagram shows the 25AA160D Package Marking Information.
8-Lead TSSOP

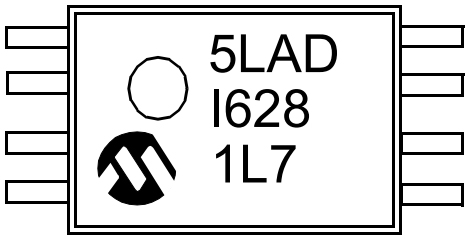

Example

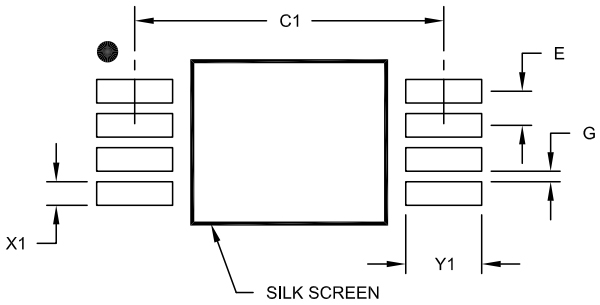

The following is the Recommended Land Pattern of 25AA160D.
Recommended Land Pattern
