BATTERY LITHIUM 6V 2CR5 The lithium 2CR5 battery is a very popular 6V non-rechargeable lithium battery. This passage provides you with a basic overview of the 2CR5, including its descriptions, applications and specifications, equivalent products, etc., to help you quickly understand what 2CR5 is.
344
Apr 25, 2022
Elsa Cecillia
PROJECT: Make 2CR5 Batteries Rechargeable on the cheapest way!
BATTERY LITHIUM 6V 2CR5
The lithium 2CR5 battery is a very popular 6V non-rechargeable lithium battery. This passage provides you with a basic overview of the 2CR5, including its descriptions, applications and specifications, equivalent products, etc., to help you quickly understand what 2CR5 is.
2CR5
Lithium 2CR5 battery is a very popular 6V rechargeable lithium battery commonly used not only in cameras and other photo equipment, but also in some flashlights, security systems, toys, and similar. The 2CR5 Lithium Photo Battery is a high-voltage battery specifically designed for today's 35mm, APS, and digital cameras. These impressive cells deliver superior performance, producing up to 6 Volts of power and holding a charge of 1400 mAh. The battery's Lithium/Manganese Dioxide chemistry (Li/MnO2) allows it to function in extreme temperatures and gives it extensive 10-year-long shelf life, so your camera will always be at full power. Best of all, they deliver a quicker recovery time between flashes, letting you snap more photos in a shorter span of time.
Energizer 2CR5 Lithium Photo Batteries, deliver long-lasting performance for your camera, shot after shot
Compatible with today’s high-tech, power-hungry devices: perfect for film and digital cameras
Type: Lithium; Volt: 6
Replacement for: DL245, KL2CR5
Powerful: Energizer Photo Batteries are built to meet the requirements of today’s high-powered devices
FDK America, Inc., a member of Fujitsu Group 2CR5 technical specifications, attributes, parameters and parts with similar specifications to FDK America, Inc., a member of Fujitsu Group 2CR5.
FDK America, Inc., a member of Fujitsu Group 2CR5 technical specifications, attributes, parameters and parts with similar specifications to FDK America, Inc., a member of Fujitsu Group 2CR5.
| Product Attribute | Attribute Value | |
|---|---|---|
| Weight | 38g | |
| Voltage Rated | 6V | |

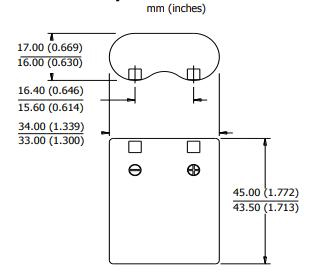

| Size / Dimension | 1.34Lx0.67W x 1.77 H 34.0mmx17.0mmx45.0mm | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | Flat | |
| Termination Style | Flat Top (Side Contacts) | |
| Battery Chemistry | Lithium Manganese Dioxide | |
| Battery Cell Size | 2CR5 | |
| Capacity | 1.4Ah |
| Product Attribute | Attribute Value | |
|---|---|---|
| Discharge Rate | 10mA | |
| Height | 44.958mm | |
| Length | 34.036mm | |
| Width | 17.018mm | |
| RoHS Status | Non-RoHS Compliant |
All these features make the LITHIUM 2CR5 battery the right choice for e.g. cameras and smoke detectors and security equipment. In the LITHIUM 2CR5, there are 2 parallel cells with each 3V that together make up 6V, which makes them especially adequate for cameras.
Fujitsu Limited (富士通株式会社, Fujitsū Kabushiki-Kaisha) is a Japanese multinational information and communications technology equipment and services corporation, established in 1935 and headquartered in Tokyo. Fujitsu is the world's sixth-largest IT services provider by annual revenue, and the largest in Japan, in 2021. The hardware offerings from Fujitsu are mainly personal and enterprise computing products, including x86, SPARC, and mainframe compatible server products, although the corporation and its subsidiaries also offer a diversity of products and services in the areas of data storage, telecommunications, advanced microelectronics, and air conditioning. It has approximately 126,400 employees and its products and services are available in approximately 180 countries.

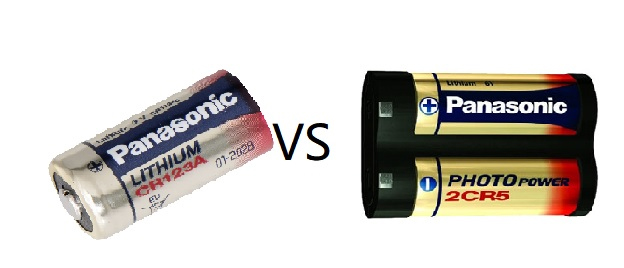

The CR123A battery is a non-rechargeable 3V lithium battery with physical dimensions of 34.5 x 17 mm (H x D). The average CR123A battery has a 1500 mAh capacity, a nominal voltage of 3.0 volts, and a cutoff voltage of 2.0 volts.
Because the dimensions of a 2CR5 battery are somewhat larger than two CR123A cells stacked side by side, certain gadgets have a specific battery holder that allows the user to power the device with either one 2CR5 battery or two CR123A batteries.
Because the CR123A battery is also available as a rechargeable CR123A battery (also known as RCR123A battery), two RCR123A batteries might theoretically be used to power devices that need 2CR5 batteries.
In real life, two RCR123A batteries feature a nominal voltage of 7.2 - 7.4 volts and this voltage difference between 2CR5 and two RCR123A batteries of 1.2 - 1.4 volts can damage or even destroy some sensitive devices.
