2N2905A PNP Transistor: Pinout, Datasheet, and Equivalents

The 2N2905A is a silicon Planar Epitaxial PNP transistor in Jedec TO-39 metal case. The 2N2905A is designed for high speed saturated switching and general purpose applications.

Symbol

Footprint

3D Model

• Type: PNP

• Package: TO-39

• Collector-Emitter Voltage: -60 V

• Collector-Base Voltage: -60 V

• Emitter-Base Voltage: -5 V

• Collector Current: -0.6 A

• Collector Dissipation: 0.8 W

• DC Current Gain (hfe): 100 to 300

• Transition Frequency: 200 MHz

• Operating and Storage Junction Temperature Range: -65 to +200 °C

STMicroelectronics 2N2905A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N2905A.

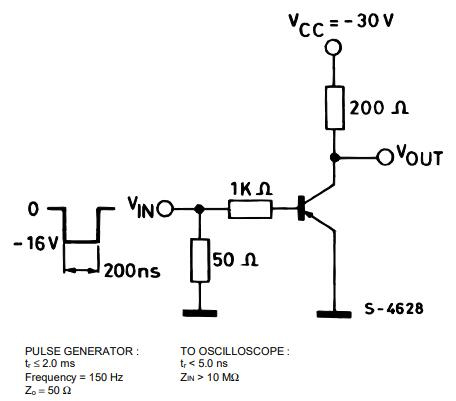

Test Circuit for ton, tr, td

Test Circuit for toff, to, tf

• General purpose transistor for high speed switching and linear applications

• Military and other high-reliability applications

2N2905A Package Outline

2N2905A Mechanical Data

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Download datasheets and manufacturer documentation for STMicroelectronics 2N2905A.
