Transistors - Bipolar (BJT) - Single STMICROELECTRONICS 2N2907A Bipolar (BJT) Single Transistor, PNP, -60 V, 200 MHz, 400 mW, -600 mA, 300 hFE
The 2N2907A is a silicon Planar Epitaxial PNP transistor. This article is going to explain datasheet pdf, pinout, equivalents, specifications, and other details about the 2N2907A transistor.
2N2907A
2N2907A is a metal can PNP bipolar junction transistor available in the TO-18 package. There are two types of 2N2907 transistors one is manufactured in the TO-92 package and the other is manufactured in the TO-18 metal can package. However, there are two variations of each packaging: the metal can package comes in two slightly different versions, 2N2907 and 2N2907A. while the plastic package comes in two slightly different versions, 2N2907 and 2N2907A.

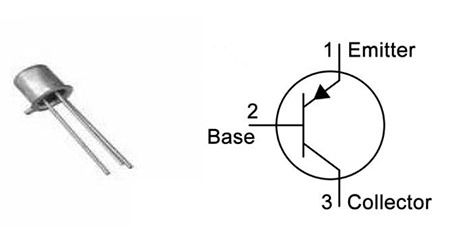

2N2907A Pinout
| Pin No. | Pin Name | Description |
| 1 | Emitter | Current Drains out through emitter |
| 2 | Base | Controls the biasing of transistor |
| 3 | Collector | Current flows in through collector |
2N2907A Symbol
2N2907A Footprint
STMicroelectronics 2N2907A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N2907A.
STMicroelectronics 2N2907A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N2907A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-206AA, TO-18-3 Metal Can | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 60V | |
| Collector-Emitter Saturation Voltage | -1.6V | |
| Number of Elements | 1 Element | |
| hFEMin | 50 | |
| Operating Temperature | 175°C TJ | |
| Packaging | Bulk | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Rated DC | -60V | |
| Max Power Dissipation | 400mW | |
| Terminal Position | BOTTOM | |
| Terminal Form | WIRE | |
| Current Rating | -600mA | |
| Frequency | 200MHz | |
| Base Part Number | 2N29 | |
| Pin Count | 3 | |
| Reference Standard | CECC | |
| Voltage | 60V | |
| Element Configuration | Single | |
| Power Dissipation | 400mW | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 200MHz | |
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 60V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 600mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA 10V | |
| Current - Collector Cutoff (Max) | 10nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | |
| Transition Frequency | 200MHz | |
| Collector Base Voltage (VCBO) | 60V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Turn On Time-Max (ton) | 45ns | |
| Collector-Base Capacitance-Max | 8pF | |
| Diameter | 5.8mm | |
| Height | 5.3mm | |
| Length | 5.8mm | |
| Width | 5.8mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Hermetically sealed TO-18 metal can
Also available in chip configuration
Max Collector Current(IC): 600mA
Max Collector-Emitter Voltage (VCE): -60V
Max Collector-Base Voltage (VCB): -60V
Max Emitter-Base Voltage (VBE): -5V
Max Collector Dissipation (Pc): 400 Milliwatt
Max Transition Frequency (fT): 200 MHz
Minimum & Maximum DC Current Gain (hFE): 100 to 300
Max Storage & Operating temperature should be: -65 to 200 Centigrade
DC/DC Converters
Microwave
Audio Amplification
Audio Preamplification
Any signal amplification
Switching applications
RF applications
2N2222A, KSP2907A, KTN2907A, MPS2907A
2N2907A Dimensions
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
