Transistors - Bipolar (BJT) - Single TRANS NPN 350V 1A TO-39
The 2N3439 is a silicon epitaxial planar NPN transistor. This post will unlock more details about 2N3499. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
2N3439

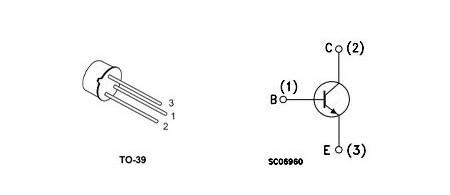

2N3439 Pinout
2N3439 Symbol
2N3439 Footprint
The 2N3439 is a silicon epitaxial planar NPN transistor in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications. These devices are particularly suited as drivers in high-voltage low current inverters, switching and series regulators.
• Metal TO-39 can package
• Advanced process technology
• Low error voltage
• Fast switching speed
• Full-voltage operation
• High power and current handling capability
High-voltage low current inverters
Switching and series regulators
The equivalent for 2N3439:
BUX55
BUY59
2N5095
STMicroelectronics 2N3439 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N3439.
STMicroelectronics 2N3439 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N3439.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-205AD, TO-39-3 Metal Can | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 350V | |
| Collector-Emitter Saturation Voltage | 500mV | |
| Number of Elements | 1 Element | |
| hFEMin | 30 | |
| Operating Temperature | 200°C TJ | |
| Packaging | Tray | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Rated DC | 450V | |
| Max Power Dissipation | 10W | |
| Terminal Position | BOTTOM | |
| Terminal Form | WIRE | |
| Current Rating | 1A | |
| Frequency | 15MHz | |
| Base Part Number | 2N34 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 10W | |
| Case Connection | COLLECTOR | |
| Power - Max | 1W | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 15MHz | |
| Polarity/Channel Type | NPN |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 350V | |
| Max Collector Current | 1A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 20mA 10V | |
| Current - Collector Cutoff (Max) | 20μA | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 4mA, 50mA | |
| Transition Frequency | 15MHz | |
| Collector Base Voltage (VCBO) | 300V | |
| Emitter Base Voltage (VEBO) | 7V | |
| VCEsat-Max | 0.5 V | |
| Height | 6.6mm | |
| Length | 9.4mm | |
| Width | 9.4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

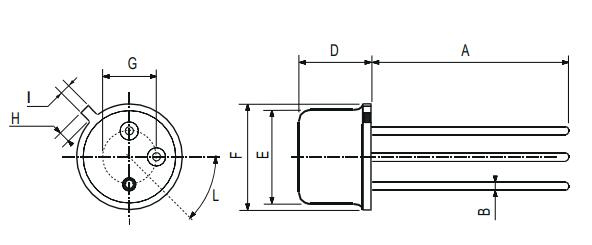

2N3439 Package
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for 2N3439
