Bipolar Transistors - BJT PNP -25V -500mA BULK HFE/300
The 2N3702 is a general-purpose PNP transistor designed for use as general-purpose amplifier and switch.
2N3702

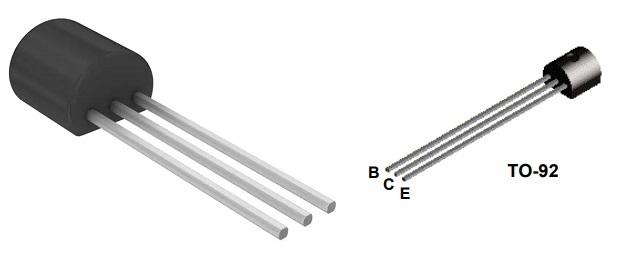

The 2N3702 is a general-purpose PNP transistor in the TO-92 package. It is designed for use as general-purpose amplifier and switch requiring collector current up to 300 mA. Sourced from Process 68.
Symbol

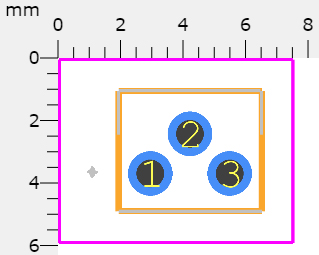

Footprint

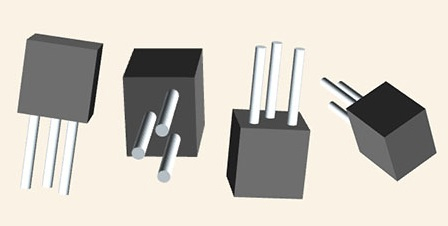

3D Model
Transistor Type: PNP

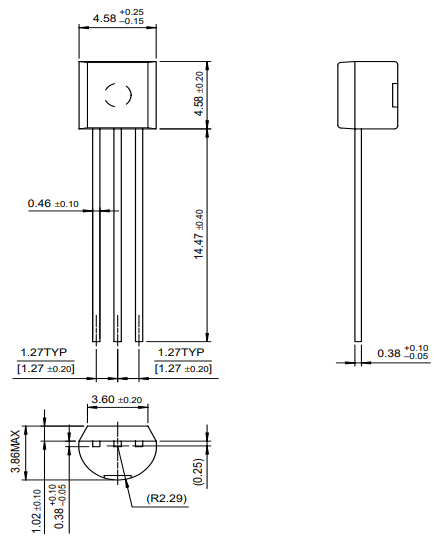

Package: TO-92
Collector-Emitter Voltage: -25 V
Collector-Base Voltage: -40 V
Emitter-Base Voltage: -5 V
Continuous Collector Current: -500 mA
Max Power Dissipation: 625 mW
DC Current Gain (hfe): 60 - 300
Transition Frequency: 100 MHz
Operating and Storage Junction Temperature Range: -55 to +150 °C

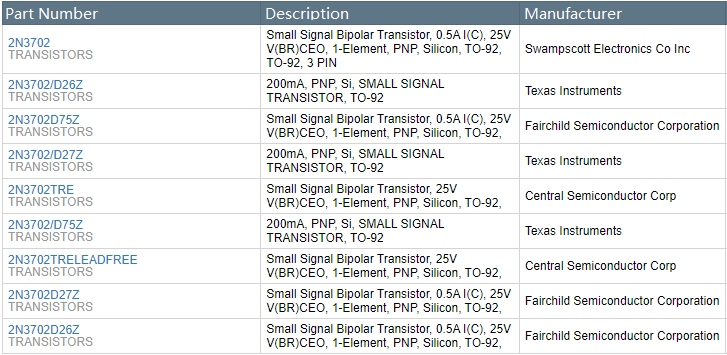

Central Semiconductor 2N3702 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3702.
Central Semiconductor 2N3702 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3702.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Package / Case | TO-92 | |
| Mount | Through Hole | |
| hFEMin | 60 | |
| Power Dissipation (Max) | 625mW | |
| Number of Elements | 1 Element | |
| Collector-Emitter Saturation Voltage | -250mV | |
| Collector-Emitter Breakdown Voltage | 25V | |
| Published | 2016 | |
| Packaging | Bulk | |
| JESD-609 Code | e0 | |
| Pbfree Code | no |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Number of Terminations | 3Terminations | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| JESD-30 Code | O-PBCY-T3 | |
| Qualification Status | Not Qualified | |
| Polarity | PNP |
| Product Attribute | Attribute Value | |
|---|---|---|
| Element Configuration | Single | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 100MHz | |
| Collector Emitter Voltage (VCEO) | -25V | |
| Max Collector Current | 100nA | |
| Transition Frequency | 100MHz | |
| Frequency - Transition | 100MHz | |
| Collector Base Voltage (VCBO) | -40V | |
| Emitter Base Voltage (VEBO) | -5V | |
| DC Current Gain-Min (hFE) | 60 | |
| Continuous Collector Current | -500mA | |
| RoHS Status | RoHS Compliant |
Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small-signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central's devices are available in industry-standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on time, and a provider of exceptional value-added services.
Download datasheets and manufacturer documentation for Central Semiconductor 2N3702.
Download datasheets and manufacturer documentation for 2N3702
