Drain characteristic curve and Dc transfer curve test for 2N3819(or any kind of JFET)
RF JFET Transistors N-CH -25V 10mA BULK
Hello everyone, this is Rose. In today's post, we will detail the introduction to 2N3819. 2N3819 is a a TO-92 packaged N-Channel JFET designed for RF amplifier and mixer applications.This article mainly introduce substitute, pinout, datasheet and other detailed information about Central Semiconductor 2N3819.
2N3819
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.74234 | $0.74 |
| 10+ | $0.70032 | $7 |
| 100+ | $0.66068 | $66.07 |
| 500+ | $0.62328 | $311.64 |
| 1000+ | $0.588 | $588 |
The Central Semiconductor 2N3819 is a a TO-92 packaged N-Channel JFET designed for RF amplifier and mixer applications.
The transistor possesses some very good features like very low noise and distortion, high gain and sensitivity, quality signal amplification and can also be used for very low level signal amplification.
Other than that it can also be used as a switch. When used as a switch it is capable of fast switching and can drive loads that falls under 10mA. It also provides high gain at 100MHz.

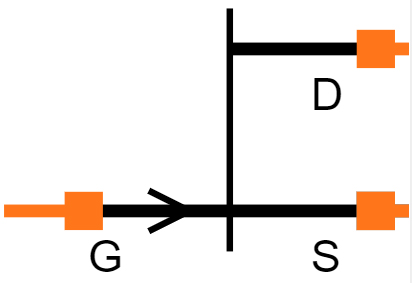

Symbol
Footprint
3D Model
■Type: JFET - N - Channel - Depletion
■ Drain to Source Voltage (VDS) = 25V
■ Drain to Gate Voltage (VDG) = 25V
■ Gate to Source Voltage (VGS) = 25V
■ Drain Current (ID)= 0.1 A
■ Gate-Source Cut-off Voltage (VGS(off)) = -8.0 Vdc (VDS = 15 Vdc, ID = 10 nAdc)
■ Cut-off Frequency (Note 1) = 700 Mhz (VDS = 15 Vdc, VGS = 0)
■ Power Dissipation (Ptot): 350mW
■ Package Type: TO-92
■ Transistor Type: N Channel
■ Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
■ Low Noise & High Gain
Central Semiconductor Corp 2N3819 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor Corp 2N3819.
Central Semiconductor Corp 2N3819 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor Corp 2N3819.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Surface Mount | NO | |
| Weight | 453.59237mg | |
| Transistor Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Operating Temperature (Max.) | 150°C | |
| Packaging | Bulk | |
| Published | 2001 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| HTS Code | 8541.21.00.95 | |
| Max Power Dissipation | 360mW | |
| Terminal Position | BOTTOM | |
| Terminal Form | THROUGH-HOLE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| JESD-30 Code | O-PBCY-T3 | |
| Qualification Status | Not Qualified |
| Product Attribute | Attribute Value | |
|---|---|---|
| Element Configuration | Single | |
| Operating Mode | DEPLETION MODE | |
| Power Dissipation | 360mW | |
| Transistor Application | AMPLIFIER | |
| Drain to Source Voltage (Vdss) | 25V | |
| Transistor Type | N-Channel JFET | |
| Continuous Drain Current (ID) | 20mA | |
| Gate to Source Voltage (Vgs) | 25V | |
| Drain Current-Max (Abs) (ID) | 0.02A | |
| FET Technology | JUNCTION | |
| Feedback Cap-Max (Crss) | 4 pF | |
| RoHS Status | Non-RoHS Compliant |
As described above 2N3819 is mostly built for VHF and UHF applications, Due to its low noise feature, it can be used for amplification of different type of low level signals whether it will be an audio signal or other type of signals in electronics. Other than that it can also be used as a switch and it can handle max load of 10mA. Moreover it also features high gain at 100MHz which also makes it ideal to use in RF applications.
● VHF/UHF Amplifier system
● Receiver and Transmitter
● RF Module
● Tone control
● High frequency amplifier.
● Low capacitance switches.
● Amplification and analog switching
● Any Low Level Signal Amplification
● Sensor Circuits
● Audio Amplifier Stages
Central Semiconductor is a leading provider of superior discrete semiconductors that have been applied in electronic products all over the world since 1974. Nowadays, the company's products lines contain MOSFETs, bridge rectifiers, silicon carbide devices, protection devices, rectifiers, current limiting diodes, bipolar power transistors, standard, and custom small-signal transistors, and thyristors. Except for the industry-standard surface mount, the company's products also support bare die, MDMs (Multi Discrete Modules™), through-hole packages. With the loyal and high-quality brand image it has built, Central keeps leveraging its service capability and benefit more and more customers through exclusive high-tech products.
Download datasheets and manufacturer documentation for Central Semiconductor Corp 2N3819.
Download datasheets and manufacturer documentation for 2N3819
