2N5087 PNP Transistor: Pinout, Datasheet, and Uses

The 2N5087 is a molded epoxy silicon PNP signal transistor designed for low-level, low-noise amplifier applications. The 2N5087 features high gain and low noise -- the max noise figure of the 2N5087 is only 2.0dB, and the max DC current gain is up to 800, which ensures that the 2N5087 is capable of amplifying very low gain signals to high gain with noise reductions. The 2N5087 is also ideal to use in audio preamplifier and amplifier circuits and can be used in audio circuits where the input signal is quite low.

Symbol

Footprint

3D Model

• Package Type: TO-92

• Transistor Type: PNP

• Max Collector Current(IC): 50 mA

• Max Collector-Emitter Voltage (VCEO): 50 V

• Max Collector-Base Voltage (VCBO): 50 V

• Max Emitter-Base Voltage (VEBO): 3 V

• Max Power Dissipation (PD): 625 mW

• Max Transition Frequency (fT): 40 MHz

• DC Current Gain (hFE): 250 - 800

• Storage & Operating temperature: -65 to +150 Centigrade

Central Semiconductor 2N5087 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N5087.

The 2N5087 is a general-purpose PNP amplifier that features low noise and high gain. These features make it ideal to use in audio amplifiers, audio preamplifiers, small-signal amplification, etc. It can be used in audio circuits where the input signal is low. Other than that the 2N5087 can also be used to switch loads under 50mA.

• Increasing audio gain

• Sensor circuits

• Darlington pairs

• Mic amplifier

• Low noise stages in audio equipment

• Audio amplifiers and stages

• Switching loads under 50mA

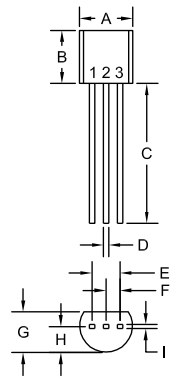

2N5087 Package Outline

2N5087 Mechanical Data
