2N5457 is an N Channel JFET (Junction Field Effect Transistor). Today, I am going to uncover the details to 2n5457.You don’t need to go anywhere and you can find all informations here. Let's dive into what it is and how to use it.
2N5457
The 2N5457 is an N Channel JFET (Junction Field Effect Transistor) which is mainly designed for audio and switching applications.
It consists of drain, source and gate which are denoted by D, S and G respectively.
It is a voltage control device that does not require any bias current to control the large current on other terminals.
The 2N5457 has three pins: Drain, source and gate
Symbol
Footprint
• N channel for higher gain
• Drain and source are interchangeable
• High AC input impedance
• High DC input resistance
• Low transmission and input capacitance
• Low cross-modulation and intermodulation distortion
• Plastic package
• Provide lead-free packaging*
ON Semiconductor 2N5457 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N5457.
ON Semiconductor 2N5457 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N5457.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | OBSOLETE (Last Updated: 3 days ago) | |
| Mount | Through Hole | |

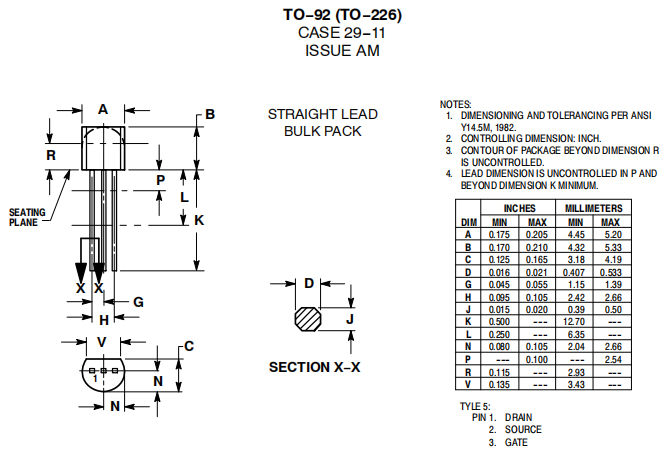

| Package / Case | TO-92 | |
| Number of Pins | 3Pins | |
| Weight | 201mg | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 625mW | |
| Packaging | Bulk | |
| Published | 2006 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Number of Terminations | 3Terminations | |
| Termination | Through Hole | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 135°C | |
| Min Operating Temperature | -55°C | |
| Additional Feature | LOW NOISE | |
| HTS Code | 8541.21.00.95 | |
| Voltage - Rated DC | 25V | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | 240 | |
| Current Rating | 10mA | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Operating Mode | DEPLETION MODE | |
| Power Dissipation | 625mW | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Drain to Source Voltage (Vdss) | 25V | |
| Polarity/Channel Type | N-CHANNEL | |
| Continuous Drain Current (ID) | 5mA | |
| Gate to Source Voltage (Vgs) | -25V | |
| FET Technology | JUNCTION | |
| Voltage - Breakdown | -25V | |
| Capacitance - Input | 7pF | |
| Height | 4.7mm | |
| Length | 4.7mm | |
| Width | 3.68mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Contains Lead |
The 2N5457 mainly used for analog switching and chopper applications. It is called a low-level amplifier or switching transistor.
It has low cross-modulation and intermodulation distortion, making it ideal for most applications.
ON Semiconductor is a semiconductor supplier company, formerly a Fortune 500, but fell into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. ON Semiconductor operates a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and Asia Pacific. ON Semiconductor is headquartered in Phoenix, Arizona, with revenues of US$3.907 billion (2016), making it one of the top 20 semiconductor sales leaders in the world.
Download datasheets and manufacturer documentation for ON Semiconductor 2N5457.
Download datasheets and manufacturer documentation for 2N5457
