2N5952 is an N-Channel RF Amplifier. This article will unlock more details about 2N5952, including datasheet, pinout, equivalent and more about 2N5952.
2N5952 N-Channel RFAmplifier: Equivalent, Pinout, Datasheet
Transistors - FETs, MOSFETs - RF AMP RF N-CHAN 30V TO-92 2N5952 is an N-Channel RF Amplifier. This article will unlock more details about 2N5952, including datasheet, pinout, equivalent and more about 2N5952.
58
Nov 24, 2021
Merry Anthony
2N5952
Inquiry
Min.: 1 Mult.: 1
Quick Links
2N5952 Pinout
The following figure shows the pinout of 2N5952:
2N5952 Pinout
2N5952 CAD Model
2N5952 Symbol
2N5952 Footprint
2N5952 3D Model
2N5952 Description
2N5952 N-Channel RF Amplifier is designed primarily for electronic switching applications such as low on-resistance analogue switching.
2N5952 Feature
-
Type Designator: 2N5952
-
Type of Transistor: JFET
-
Type of Control Channel: N -Channel
-
Package: TO-92-18R
2N5952 Application
-
Electronic switching applications
-
Low On resistance analogue switching
2N5952 Equivalent
The equivalent for 2N5952 :
-
2N5000
-
2N5001
-
2N5002
Specifications
ON Semiconductor 2N5952 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N5952.
2N5952 Tech Specifications
2N5952 Tech Specifications
ON Semiconductor 2N5952 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N5952.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Voltage Rated | 30V | |
| Packaging | Bulk | |
| Published | 2002 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Current Rating (Amps) | 8mA | |
| Reach Compliance Code | unknown | |
| Frequency | 1kHz | |
| Base Part Number | 2N5952 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | N-Channel JFET | |
| Noise Figure | 2dB | |
| Voltage - Test | 15V |

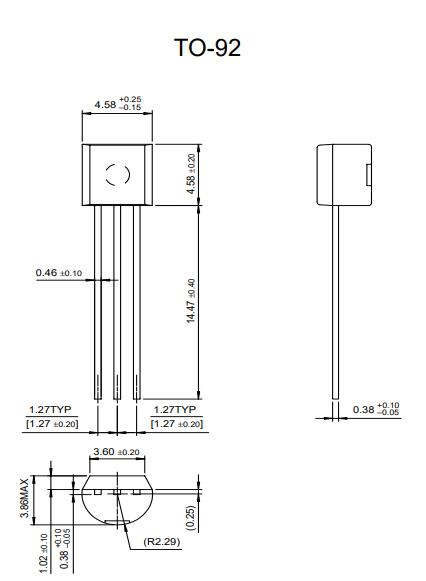

2N5952 Package
The 2N5952 package shows below:
2N5952 Package
2N5952 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
2N5952 Documents
2N5952 Documents
Download datasheets and manufacturer documentation for 2N5952
Frequently Asked Questions
What is gain of RF amplifier?
In electronics, the gain is a measure of the ability of a two-port circuit (often an amplifier) to increase the power or amplitude of a signal from the input to the output port by adding energy converted from some power supply to the signal.
What are RF signals?
A radio frequency (RF) signal refers to a wireless electromagnetic signal used as a form of communication if one is discussing wireless electronics. Radio waves are a form of electromagnetic radiation with identified radio frequencies that range from 3kHz to 300 GHz.
FAQ
What is gain of RF amplifier?
In electronics, the gain is a measure of the ability of a two-port circuit (often an amplifier) to increase the power or amplitude of a signal from the input to the output port by adding energy converted from some power supply to the signal.
What are RF signals?
A radio frequency (RF) signal refers to a wireless electromagnetic signal used as a form of communication if one is discussing wireless electronics. Radio waves are a form of electromagnetic radiation with identified radio frequencies that range from 3kHz to 300 GHz.
