Transistors - Bipolar (BJT) - Single TRANS NPN 80V 15A TO220AB
The 2N6488 is a silicon epitaxial-base NPN transistor. This article will unlock more details about 2N6488. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
2N6488

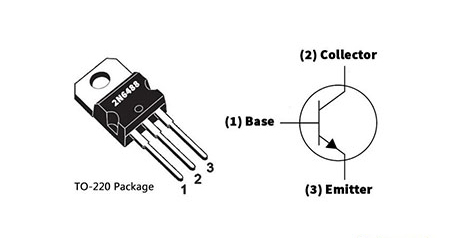

2N6488 Symbol

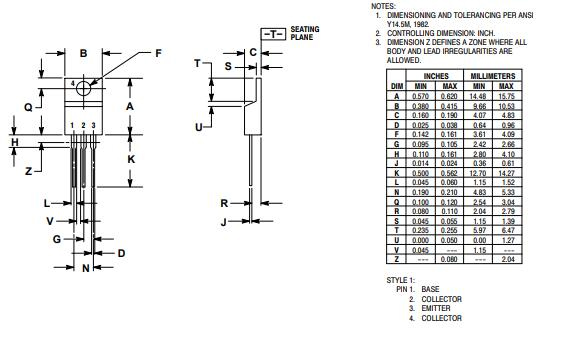

2N6488 Footprint
2N6488 3D Model
The 2N6488 is a silicon epitaxial-base NPN transistor in Jedec TO-220 plastic package. They are intended for use in power linear and low-frequency switching applications.
• High DC Current Gain
• High Current Gain − Bandwidth Product
• TO−220 Compact Package
• These Devices are Pb−Free and are RoHS Compliant*
• Voltage - Collector-Emitter Breakdown (Max): 80V
power linear
low-frequency switching
The equivalent for 2N6488:
2N60
2N600
2N6000
2N6001
2N6002
2N6491
ON Semiconductor 2N6488 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N6488.
ON Semiconductor 2N6488 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N6488.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | OBSOLETE (Last Updated: 3 days ago) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-220AB | |
| Collector-Emitter Breakdown Voltage | 80V | |
| Collector-Emitter Saturation Voltage | 3.5V | |
| Current-Collector (Ic) (Max) | 15A | |
| hFEMin | 20 | |
| Operating Temperature | -65°C~150°C TJ | |
| Packaging | Tube | |
| Published | 2007 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Voltage - Rated DC | 80V | |
| Max Power Dissipation | 1.8W | |
| Current Rating | 15A | |
| Base Part Number | 2N6488 | |
| Polarity | NPN | |
| Element Configuration | Single | |
| Power - Max | 1.8W | |
| Gain Bandwidth Product | 5MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 3.5V | |
| Max Collector Current | 15A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 5A 4V | |
| Current - Collector Cutoff (Max) | 1mA | |
| Vce Saturation (Max) @ Ib, Ic | 3.5V @ 5A, 15A | |
| Voltage - Collector Emitter Breakdown (Max) | 80V | |
| Frequency - Transition | 5MHz | |
| Collector Base Voltage (VCBO) | 90V | |
| Emitter Base Voltage (VEBO) | 5V | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
