HomeCommunitySubject2N7000 N-Channel MOSFET Overview [Video]

2N7000 N-Channel MOSFET Overview [Video]

MOSFET N-CH 60V 350MA TO-92 2N7000 is a small signal N-channel MOSFET. This article mainly introduces pinout, specifications, features, and other detailed information about STMicroelectronics 2N7000.

223

Mar 22, 2021

Adelaide

1

MOSFET N-CH 60V 350MA TO-92

2N7000 is a small signal N-channel MOSFET. This article mainly introduces pinout, specifications, features, and other detailed information about STMicroelectronics 2N7000.

2N7000

510In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.1346$1.13
10+ $1.07038$10.7
100+ $1.00979$100.98
500+ $0.95263$476.32
1000+ $0.89871$898.71
Unit Price:$1.1346
Subtotal: $1.13
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

2N7000 Description

2N7000 Power MOSFET is the second generation of STMicroelectronics unique “single feature size”strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics, and less critical alignment steps therefore a remarkable manufacturing reproducibility.

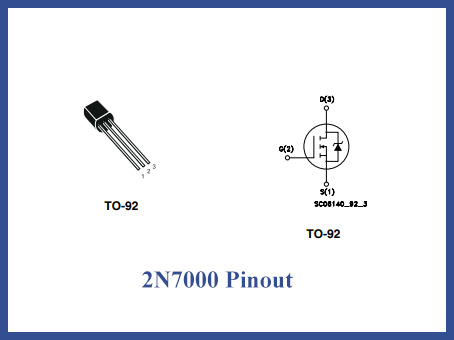

2N7000 Pinout

Pin Number Pin Name Description
1 Source Current flows out through Source
2 Gate Controls the biasing of the MOSFET
3 Drain Current flows in through Drain

2N7000 CAD Model

symbol

footprint

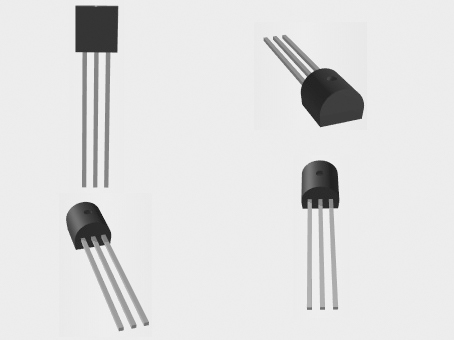

3D Model

2N7000 Features

  • Small signal N-Channel MOSFET

  • Drain-Source Voltage (VDS) is 60V

  • Continuous Drain Current (ID) is 200mA

  • Pulsed Drain Current (ID-peak) is 500mA

  • Gate threshold voltage (VGS-th) is 3V

  • Gate-Source Voltage is (VGS) is ±20V

  • Turn ON and Turn off time is 10ns each.

  • Available in To-92 Package

Specifications

STMicroelectronics 2N7000 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N7000.

2N7000 Tech Specifications

ON Semiconductor 2N7000 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N7000.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 2 days ago)
Factory Lead Time11 Weeks
Contact PlatingCopper, Silver, Tin
MountThrough Hole
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
Number of Pins3Pins
Supplier Device PackageTO-92-3
Weight201mg
Current - Continuous Drain (Id) @ 25℃200mA Ta
Drive Voltage (Max Rds On, Min Rds On)4.5V 10V
Number of Elements1 Element
Power Dissipation (Max)400mW Ta
Turn Off Delay Time10 ns
Operating Temperature-55°C~150°C TJ
PackagingBulk
Published2011
Product Attribute Attribute Value
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Resistance5Ohm
Max Operating Temperature150°C
Min Operating Temperature-55°C
Voltage - Rated DC60V
Current Rating200mA
Base Part Number2N7000
Number of Channels1Channel
Element ConfigurationSingle
Power Dissipation400mW
FET TypeN-Channel
Rds On (Max) @ Id, Vgs5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds50pF @ 25V
Drain to Source Voltage (Vdss)60V
Vgs (Max)±20V
Product Attribute Attribute Value
Continuous Drain Current (ID)200mA
Threshold Voltage2.1V
Gate to Source Voltage (Vgs)20V
Drain to Source Breakdown Voltage60V
Input Capacitance40pF
Drain to Source Resistance1.2Ohm
Rds On Max5 Ω
Nominal Vgs2.1 V
Height5.2mm
Length4.8mm
Width4.19mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

2N7000 Alternatives

Part Number

Description

Manufacturer

2N7000_D26Z

N-Channel Enhancement Mode Field Effect Transistor, 3LD, TO-92, MOLDED, 0.200 IN LINE SPACING LD FORM (J61Z OPTION), 2000/TAPE REEL

Fairchild Semiconductor Corporation

2N7000RLRM

200mA, 60V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, CASE 29-11, TO-226, 3 PIN

Rochester Electronics LLC

2N7008-G

Small Signal Field-Effect Transistor, 0.23A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92, GREEN PACKAGE-3

Supertex Inc

Where to use 2N7000?

2N7000 is a small signal N-channel MOSFET. MOSFET’s are power electronic switches just like transistors, but with a higher current and voltage rating.  The 2N7000 MOSFET can be used to switch loads that operate on less than 60V (VDS) and 200mA (ID). This MOSFET comes in a compact TO-92 package and has a threshold voltage of 3V, hence if you looking for a small MOSFET to switch a load then this IC could suit your purpose.



Applications

  • Switching High voltage loads

  • Commonly used for small signal switching

  • LED dimmers or flashers

  • Low power Analog converters or inverters

2N7000 Package

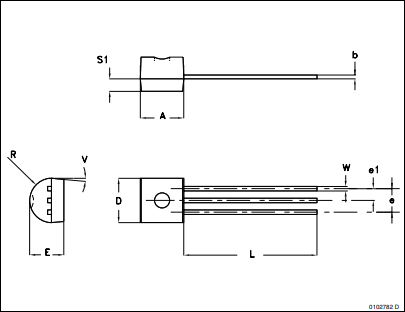

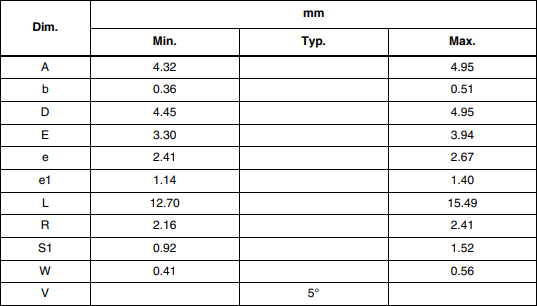

TO-92 drawingTO-92 mechanical data

2N7000 Manufacturer

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.

Datasheet PDF

Download datasheets and manufacturer documentation for STMicroelectronics 2N7000.

2N7000 Documents

Download datasheets and manufacturer documentation for 2N7000

Frequently Asked Questions

1.Is 2N7000 NPN or PNP?
2N7000 is a N-channel mosfet. NPN or PNP indicated BJT type transistor. unlike BJTs mosfets are symmetrical devices and S and D is actually defined by connection of the bulk. in case of 3-pin packaged mosfets, you no longer have control of how the bulk is connected so make sure to verify pinout using correct datasheet.
2.What is the minimum gate threshold voltage of the 2N7000?
3V. Gate threshold voltage (VGS-th) is 3V.
3.How does a 2n7000 work?
In 2n7000, the conduction between source and drain is carried out by the movement of electrons. In 2n7000, gate is biased by applying the positive input voltage that will attract the electrons available in the p-type semiconductor substrate.
4.How is a Mosfet used in a circuit?
To turn the MOSFET on, we need to raise the voltage on the gate. To turn it off we need to connect the gate to ground. P-Channel – The source is connected to the power rail (Vcc). In order to allow current to flow the Gate needs to be pulled to ground.
5.What is an N channel Mosfet?
A N-Channel MOSFET is a type of MOSFET in which the channel of the MOSFET is composed of a majority of electrons as current carriers. An enhancement-type MOSFET is the opposite. It is normally off when the gate-source voltage is 0 (VGS=0).
FAQ
1.Is 2N7000 NPN or PNP?
2N7000 is a N-channel mosfet. NPN or PNP indicated BJT type transistor. unlike BJTs mosfets are symmetrical devices and S and D is actually defined by connection of the bulk. in case of 3-pin packaged mosfets, you no longer have control of how the bulk is connected so make sure to verify pinout using correct datasheet.
2.What is the minimum gate threshold voltage of the 2N7000?
3V. Gate threshold voltage (VGS-th) is 3V.
3.How does a 2n7000 work?
In 2n7000, the conduction between source and drain is carried out by the movement of electrons. In 2n7000, gate is biased by applying the positive input voltage that will attract the electrons available in the p-type semiconductor substrate.
4.How is a Mosfet used in a circuit?
To turn the MOSFET on, we need to raise the voltage on the gate. To turn it off we need to connect the gate to ground. P-Channel – The source is connected to the power rail (Vcc). In order to allow current to flow the Gate needs to be pulled to ground.
5.What is an N channel Mosfet?
A N-Channel MOSFET is a type of MOSFET in which the channel of the MOSFET is composed of a majority of electrons as current carriers. An enhancement-type MOSFET is the opposite. It is normally off when the gate-source voltage is 0 (VGS=0).
