STMICROELECTRONICS 2N7002 MOSFET Transistor, N Channel, 180 mA, 60 V, 1.8 ohm, 10 V, 2.1 V
2357
Jul 3, 2021
Ben Amelia
STMICROELECTRONICS 2N7002 MOSFET Transistor, N Channel, 180 mA, 60 V, 1.8 ohm, 10 V, 2.1 V
The 2N7002 is a logic level mosfet with a low on-state resistance. This article covers its pinout,datasheet,alternatives and more detailed information about 2N7002
2N7002
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.91552 | $0.92 |
| 10+ | $0.8637 | $8.64 |
| 100+ | $0.81481 | $81.48 |
| 500+ | $0.76869 | $384.35 |
| 1000+ | $0.72518 | $725.18 |
The 2N7002 is a logic level MOSFET with a low on-state resistance. This Power MOSFET is the second generation of STMicroelectronics unique “single feature size” strip-based process.
Symbol

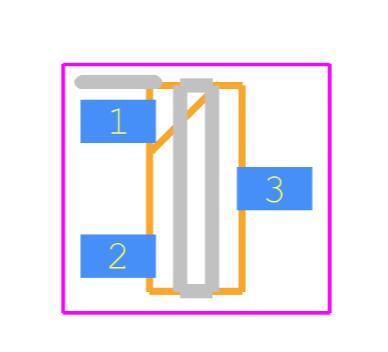

Footprint
3D Model
ON Semiconductor 2N7002 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor 2N7002.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | SOT-23 (TO-236AB) | |
| Current - Continuous Drain (Id) @ 25℃ | 115mA Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 200mW Ta | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2016 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Resistance | 5.3Ohm | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | 60V | |
| Current Rating | 115mA | |
| Base Part Number | 2N7002 | |
| Voltage | 60V | |
| Element Configuration | Single | |
| Current | 115mA | |
| Power Dissipation | 200mW | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 500mA, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| Drain to Source Voltage (Vdss) | 60V | |
| Vgs (Max) | ±20V | |
| Continuous Drain Current (ID) | 115mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Threshold Voltage | 2.1V | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | 60V | |
| Dual Supply Voltage | 60V | |
| Input Capacitance | 50pF | |
| Drain to Source Resistance | 1.2Ohm | |
| Rds On Max | 7.5 Ω | |
| Nominal Vgs | 2.1 V | |
| Height | 930μm | |
| Length | 2.92mm | |
| Width | 3.05mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
NTR4003, FDC666, FDC558
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics 2N7002.
Download datasheets and manufacturer documentation for 2N7002
