TRANSISTOR TO-92 MOD 2SA1015 is a PNP silicon plastic-encapsulate transistor. This article mainly covers datasheet, pinout, replacement, circuit, and other details about the 2SA1015 transistor. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
91
Sep 24, 2021
Saxon Abe
TRANSISTOR TO-92 MOD
2SA1015 is a PNP silicon plastic-encapsulate transistor. This article mainly covers datasheet, pinout, replacement, circuit, and other details about the 2SA1015 transistor. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
2SA1015-O-AP
The 2SA1015 is a low-frequency PNP transistor designed for general-purpose amplification. It comprises mostly of three terminals: emitter, base, and collector. The base side of this transistor is represented by the N layer, while the emitter and collector are represented by the Players.
2SA1015 Pinout
| Pin No. | Pin Name | Description |
| 1 | Emitter | current drain in through Emitter |
| 2 | Collector | current flow out through collector |
| 3 | Base | control the current between Emitter & collector |
2SA1015 Symbol

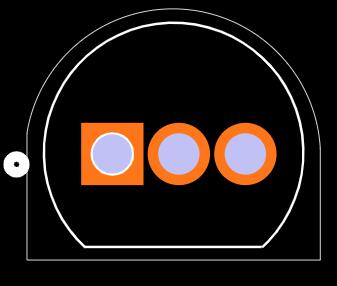

2SA1015 Footprint
Micro Commercial Co 2SA1015-O-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co 2SA1015-O-AP.
Micro Commercial Co 2SA1015-O-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co 2SA1015-O-AP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) | |
| Surface Mount | NO | |
| Transistor Element Material | SILICON | |
| Current-Collector (Ic) (Max) | 150mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | -55°C~125°C TJ | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| JESD-30 Code | O-PBCY-T3 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Power - Max | 400mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 2mA 6V | |
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Transition Frequency | 80MHz | |
| Frequency - Transition | 80MHz | |
| Power Dissipation-Max (Abs) | 0.4W | |
| RoHS Status | RoHS Compliant |
The type of transistor is PNP
It is available in a TO-92 package
Power dissipation is 0.4W
Less frequency is 1dB
VCE is -50 V
VCB is -50 V
VEB is -5 V
The maximum voltage is (Vceo) is 50v
The maximum current is (Ic) is 150mA
Case material is molded plastic
Dissipation of collector terminal is 400mW
Gain of DC is 400
VEB is 1.45Vdc
The breakdown voltage of CE & CB is 50v DC
The saturation voltage of EB is 1.1v DC
The saturation voltage of CE is 0.3v DC
Collector Current (CC) is 0.15 A
The transition frequency is 80 MHz
The noise figure is 1 dB
Operating & storage temperature ranges from -55℃ to +150℃
Switching
AF amplifier
Used in making led flasher
Driver stage amplifier action
Can be used Darlington pair
BC212, BC257, BC307, BC557,BC558,BC559, NTE290A, 2SA495, 2SA561, 2SA564A, 2SA573, 2SA675, 2SA705, 2SA850, 2SA999, 2N3494, 2SA781, KT3108A,KTA1015
The 2SA1015 transistor is mostly used in audio amplifiers. This transistor can also be used for switching, and it can be driven in the active area when utilized for audio amplification.
According to the DC current gain, it is split into four categories: O (140), Y(240), G(400), and L(700) hfe DC current gain. In the LED flasher circuit below, 2SA1015 is used as an audio frequency generator to Q1 and Q2 transistors, which are employed as switches. Q2 is also used to increase the current. Q1 will work from capacitor C1 through R2 and LED until the voltage drop across C1 grows. As a result, Q2 is held, and a current passes through the LED, keeping it on.
2SA1015 Circuit
2SA1015 Dimensions
Founded in 1991, Micro Commercial Components Corp. (MCC) is a manufacturer of high-quality discrete semiconductors to the consumer markets. It provides diodes, rectifiers, transistors, MOSFETs, voltage regulators, and protection devices.
Download datasheets and manufacturer documentation for Micro Commercial Co 2SA1015-O-AP.
Download datasheets and manufacturer documentation for 2SA1015-O-AP
