2SA1302 PNP Transistor, 15A, 200V, TO-3PL Silicon Transistor, 2SA1302 Pinout

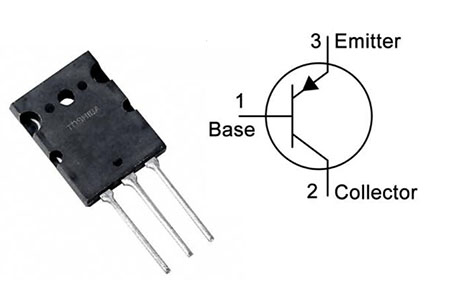

2SA1302 is a silicon  PNP  epitaxial Type (PCT Process) for general purpose switching and amplifier applications. The first pin of the 2SA1302 transistor is known as the base, the second is the collector and the third one is its emitter.

The 2SA1302 is primarily intended for use in power amplifiers, but it can also be used to build audio power amplifiers up to 100 watts. However, the 2SC3281 can also be utilized as a switch because it can drive high ampere loads of up to -15A.

• Type: PNP

• Collector-Emitter Voltage: -200 V

• Collector-Base Voltage: -200 V

• Emitter-Base Voltage: -5 V

• Collector Current: -15 A

• Collector Dissipation: 150 W

• DC Current Gain (hfe): 55 to 160

• Transition Frequency: 10 MHz

• Operating and Storage Junction Temperature Range: -55 to +150 °C

• Package: TO-3P

• Motor Drivers

• Audio amplifier  stages

• High power audio amplifiers

• Audio amplifiers driver stages

• Drive load of up to -15A

2SC3281, 2SA1943, 2SA1962, 2SA1986, 2SA2121, 2SA2151, MJW1302A, KTA1943, 2SA2151, FJL4215

2SA1302 is a silicon  PNP  epitaxial Type (PCT Process) for general purpose switching and amplifier applications,  Therefore, you can use it in these types of circuits and make high power amplifiers. Furthermore, it can be used as a switch in any type of circuit and is capable to drive a load of up to -15A.

 2SA1302 Package Dimensions
