This article will unlock more details about 2SB772, a TO-126 package general purpose transistor. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
2SB772
2SB772 Pinout
2SB772 Symbol
2SB772 Footprint
2SB772 3D Model
2SB772 is a PNP transistor manufactured by using planar Technology resulting in rugged high-performance devices. The complementary NPN type is 2SD882.
It has a wide range of switching and audio amplification capabilities. It can drive a load of up to 3A and can be used to drive a variety of loads in circuits when used as a switch. Furthermore, the collector-emitter saturation value is merely 0.3V, making this transistor perfect for low voltage switching applications.
STMicroelectronics 2SB772 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2SB772.
STMicroelectronics 2SB772 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2SB772.
| Product Attribute | Attribute Value | |
|---|---|---|
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-225AA, TO-126-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 30V | |
| Collector-Emitter Saturation Voltage | -1.1V | |
| Number of Elements | 1 Element | |
| hFEMin | 100 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | -30V | |
| Max Power Dissipation | 12.5W | |
| Peak Reflow Temperature (Cel) | 250 | |
| Current Rating | -3A | |
| Frequency | 100MHz | |
| Base Part Number | 2SB7 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 12.5W | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 100MHz | |
| Polarity/Channel Type | PNP |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 30V | |
| Max Collector Current | 3A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA 2V | |
| Current - Collector Cutoff (Max) | 100μA | |
| Vce Saturation (Max) @ Ib, Ic | 1.1V @ 150mA, 3A | |
| Transition Frequency | 100MHz | |
| Collector Base Voltage (VCBO) | 60V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 11.05mm | |
| Length | 7.8mm | |
| Width | 2.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
■ High current
■ Low saturation voltage
■ Complement to 2SD882
■ Voltage regulation
■ Relay driver
■ Generic switch
■ Audio power amplifier
■ DC-DC converter
The equivalent for 2SB772:
MJE172
KSB772
2N6407
2SA715
2SA738
2N6414
2N6415
2SA963
2SB743
2SB744
As previously stated, the 2SB772 can be utilized in a variety of applications because it can drive a maximum load of 3A or 3000mA, allowing it to be used in circuits to drive several loads at once. High-capacity DC motors, LEDs, relays, switches, whole circuits, and so on. Aside from that, it may be used to make a high-power audio amplifier and can be used to drive a speaker straight from the output of radios, bells/chimes, and mp3 players.

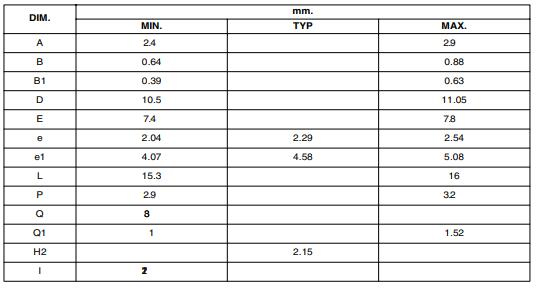

2SB772 Package
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivalled silicon and system expertise, strong manufacturing strength, IP portfolio, and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products have a positive effect in realizing today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics 2SB772.
Download datasheets and manufacturer documentation for 2SB772
