The 2SC2625 is a power transistor device that has greater uses on high-end products such as inverters. This article mainly covers pinout, datasheet, equivalent, power about 2SC2625 transistor. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
2SC2625
2sc2625 is an NPN high-power silicon transistor, with a voltage resistance of 450v, a current of 10a, and a power of 80w. The main purpose is for power amplification and switching power supplies.
2SC2625 Transistor Pinout
Type: NPN
Collector-Emitter Voltage: 400 V
Collector-Base Voltage: 450 V
Emitter-Base Voltage: 7 V
Collector Current: 10 A
Collector Dissipation: 80 W
DC Current Gain (here): 10
Operating and Storage Junction Temperature Range: -55 to +150 °C
Package: TO-3P
Switching regulators
Ultrasonic generators
High-frequency inverters
General-purpose power amplifiers
2SC2751, SC2751-N, 2SC2751-O, 2SC2751-R, 2SC2751-Y, 2SC3306, 2SC3320, 2SC3450, 2SC3450-L, 2SC3450-M, SC3450-N, 2SC3451, 2SC3451-L, 2SC3451-M, 2SC3451-N, 2SC3552, 2SC3552-K, 2SC3552-L, 2SC3552-M, 2SC3831, 2SC3833, 2SC3988, 2SC3988-L, 2SC3988-M, 2SC3988-N, 2SC3989, 2SC3989-L, 2SC3989-M, 2SC3989-N, 2SC3990, 2SC3990-L, 2SC3990-M, 2SC3990-N, 2SC3991, 2SC3991-L, 2SC3991-M, 2SC3991-N, 2SC3992, 2SC3992-K, 2SC3992-L, 2SC3992-M
| Characteristics | 2sc2625 | 2sc2751 |
| Collector to base voltage (VCB) | 450V | 500V |
| Collector to emitter voltage (VCE) | 400V | 400V |
| Emitter to base voltage (VEB) | 7V | 7V |
| Collector current (IC) | 10A | 15A |
| Power dissipation | 80W | 120W |
| Junction temperature (TJ) | -55 to +150°C | -55 to +150°C |
| Transition frequency (FT) | – | – |
| Noise (N) | – | – |
| Gain (hFE) | 10hFE | 15 to 80Hfe |
| Package | TO-3P | TO-3P |

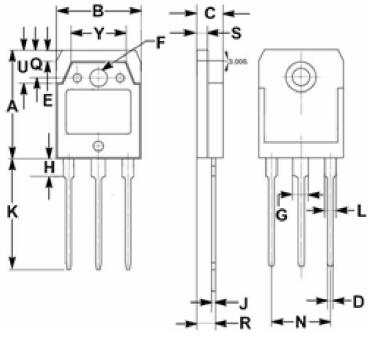

2SC2625 Transistor Package
