2SC5200 NPN Transistor: Pinout, Datasheet, and Circuit

The 2SC5200 is a high-power NPN transistor manufactured using new BiT-LA (bipolar transistor for linear amplifier) technology. The 2SC5200 is available in the TO-264 package and the complementary pair is 2SA1943. It can be used in mobile phones, industrial control, television, and flip-flops, and can also be used in high-frequency applications such as radio frequency audio circuits.

The 2SC5200 transistor has a current gain between 55 and 160. The gain of the 2SC5200R ranges from 55 to 110, 2SC5200O ranges from 80 to 160, and 2SC5200N ranges from 80 to 160.

Symbol

2SC5200 Symbol

Footprint

2SC5200 Footprint

3D Model

2SC5200 3D Model

• Transistor Type: High-Power NPN Transistor

• Package Type: TO-264

• Max Collector Current: 15 A

• Max Collector-Emitter Voltage: 230 V

• Max Collector-Base Voltage: 230 V

• Max Emitter-Base Voltage: 5 V

• Max Power Dissipation: 150 W

• Transition Frequency: 30 MHz

• DC Current Gain (hFE): 35 - 120

• Max Operating Temperature: +150 Centigrade

• High Fidelity Audio Frequency Amplifier Output

• Low Harmonic Distortion

• Large Current Capability

• High Transition Frequency

• Use in 100W High Fidelity Audio Amplifier's Output Stage

STMicroelectronics 2SC5200 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2SC5200.

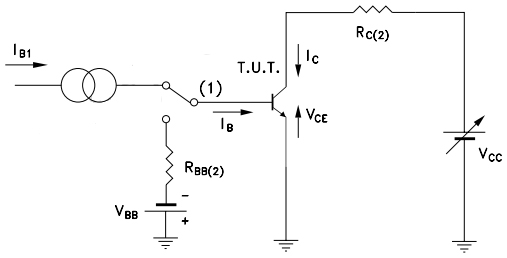

2SC5200 Resistive Load Switching Test Circuit

TTC5200, MJL3281A, MJL13002A, 2SC3320, 2SC5242, 2SC5358, 2SC6011A, 2SC6011A-O, 2SC6011A-P, 2SC6011A-Y, 2SD1313, FJA4313, FJL4315, KTC5200, KTC5200A, KTC5242, KTC5242A, MJW3281A, MJW3281AG

Please check the pin configuration and parameters before replacing them in your circuit.

The 2SC5200 is a high-power NPN transistor originally from Toshiba. However, the Toshiba 2SC5200 transistor has been superseded by the TTA5200, yet the good old 2SA5200 is still available in the market because it is still being duplicated by various Chinese manufacturers.

The 2SC5200 has many good features like high current gain and high collector current. It is often used in high-power audio circuits or AF amplifiers. And it can also be used in high-frequency applications. The 2SC5200 is recommended to be used in the 100-W high fidelity audio amplifier's output stage.

The 2SC5200 is mainly employed in amplifier designs with its complementary transistor 2SA1943. Most amplifiers use a push-pull circuit similar to that of a Class B amplifier, which requires both an NPN and a PNP transistor. The 2SE5200 is an NPN transistor and its complementary PNP transistor is 2SA1943. These two transistors are often used together in the design of high-power amplifiers.

Since these transistors work with high switching frequency and high collector current, they tend to heat up very fast, hence a heat sink is needed. It's worth noting that the heat sink will also serve as the transistor's collector pin, thus it should be separated from the rest of the circuit.

These transistors are often used in stereo systems rated at 200 W or above. And they have a good sensitivity of 0.75Vrms and can respond to frequencies ranging from 5Hz to 100kHz. It is ideal for audio applications since it has a low signal-to-noise ratio and low total harmonic distortion.

• Audio Power Amplifier

• 100-W High Fidelity Audio Amplifier's Output Stage

• AF/RF Circuits

• Low Slew Rate Devices

• Push-Pull Configuration Circuits

• High Current Switching (up to 15A)

• Medium Power Switches

2SC5200 Package Outline

2SC5200 Mechanical Data
