2SD2499 NPN Transistor: 1500V, TO-3PF, 2SD2499 Equivalents and Pinout

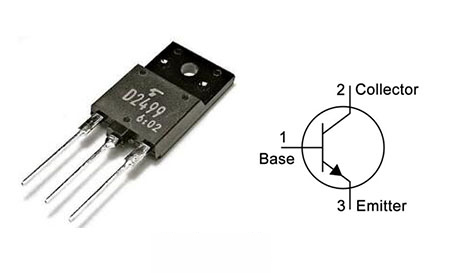

The 2SD2499 is an NPN  transistor that comes in a TO-3PF or TO-3PM packaging. The transistor has certain fascinating characteristics, and it was designed largely for use in horizontal deflection circuitry for TVs and monitors. Its high speed and high voltage capabilities make it excellent for use in a variety of high voltage applications up to 600V, as well as high-speed switching applications.

• High Voltage: Vcbo = 1500V

• Low Saturation Voltage: Vce  (sat) = 5V (Max.)

• High Speed: tf = 0.3us (Typ.)

• Built-in Damper Type

• Collector Metal (Fin) is Fully Covered with Mold Resin.

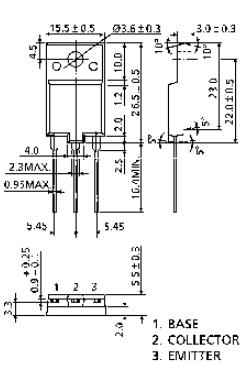

• Package Type: TO-3PF Or TO-3PM

• Transistor Type:  NPN

• Max Collector Current(IC): 6A

• Max Collector-Emitter Voltage (VCE): 600V

• Max Collector-Base Voltage (VCB): 1500V

• Max Emitter-Base Voltage (VEBO): 5V

• Max Collector Dissipation (Pc): 50 Watt

• Max Transition Frequency (fT): 2 MHz

• Minimum & Maximum DC Current Gain (hFE): 8 To 25

• Max Storage & Operating temperature: -55 to +150 Centigrade

• Motor Driver Circuits

• Audio amplification

• High voltage  AC  and DC  applications

• Drive load of up to 6A

2SC5250, 2SC3896, 2SC3894

The transistor is primarily developed for use in TV and monitor deflection circuitry, but its excellent specifications also make it suitable for use in a wide range of high voltage and high-speed switching applications, as well as a wide range of general-purpose applications. This transistor can be utilized for audio amplification in addition to switching applications.
