Transistors - FETs, MOSFETs - Single MOSFET P-CH 160V 7A TO-3P The 2SJ162 is a P Channel Power MOSFET with Current & Voltage Rating 7 ampere 160 volt respectively.
19
Nov 16, 2021
Tracy Noah
E180F 2SK105-2SJ162 Hybrid amplifier 80watt
Transistors - FETs, MOSFETs - Single MOSFET P-CH 160V 7A TO-3P
The 2SJ162 is a P Channel Power MOSFET with Current & Voltage Rating 7 ampere 160 volt respectively. This article will unlock more details about 2SJ162. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
2SJ162-E
|
Pin No |
Pin Name |
|
1 |
Gate |
|
2 |
Source |
|
3 |
Drain |

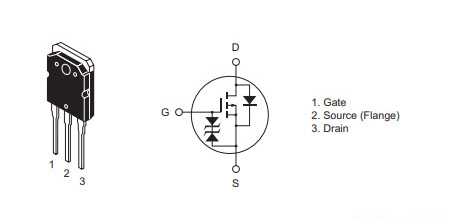

2SJ162 Symbol

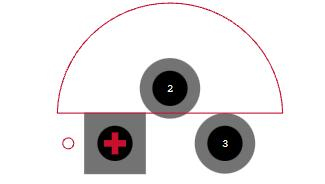

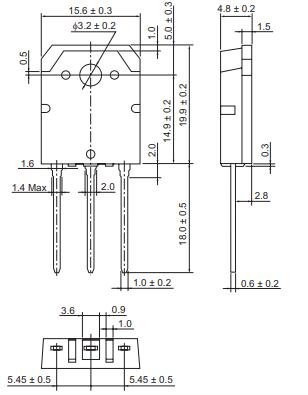

2SJ162 Footprint
2SJ162 3D Model
The 2SJ162 is a Silicon P Channel MOSFET with Current & Voltage Rating 7 ampere 160 volt respectively.
l Good frequency characteristic
l High-speed switching
l Wide area of safe operation
l Enhancement- mode
l Good complimentary characteristics
l Equipped with gate protection diodes
l Suitable for audio power amplifier
Low-frequency power amplifier
Complementary pair with 2SK1056, 2SK1057 and 2SK1058
The equivalent for 2SJ162:
2SJ0398
2SJ0536
2SJ0582
2SJ103
2SJ104
2SJ105
2SJ106
2SJ107
2SJ108
2SJ109

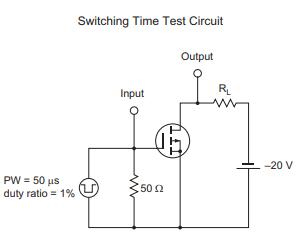

2SJ162 Test Circuit
2SJ162 Waveform
Renesas Electronics America 2SJ162-E technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America 2SJ162-E.
Renesas Electronics America 2SJ162-E technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America 2SJ162-E.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3P-3, SC-65-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 7A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 100W Tc | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| Published | 1999 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | -160V | |
| Terminal Position | SINGLE | |
| Current Rating | -7A | |
| Pin Count | 4 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Case Connection | SOURCE |
| Product Attribute | Attribute Value | |
|---|---|---|
| FET Type | P-Channel | |
| Transistor Application | SWITCHING | |
| Input Capacitance (Ciss) (Max) @ Vds | 900pF @ 10V | |
| Drain to Source Voltage (Vdss) | 160V | |
| Vgs (Max) | ±15V | |
| Continuous Drain Current (ID) | 7A | |
| Gate to Source Voltage (Vgs) | 15V | |
| Drain Current-Max (Abs) (ID) | 7A | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Renesas Electronics delivers trusted embedded design innovation with complete semiconductor solutions that enable billions of connected, intelligent devices to enhance the way people work and live - securely and safely. The number one global supplier of microcontrollers and a leader in Analog & Power and SoC products, Renesas provides the expertise, quality, and comprehensive solutions for a broad range of Automotive, Industrial, Home Electronics (HE), Office Automation (OA) and Information Communication Technology (ICT) applications to help shape a limitless future.
Download datasheets and manufacturer documentation for 2SJ162-E
