DIY Class-A 2SK1058 MOSFET Amplifier
Transistors - FETs, MOSFETs - Single MOSFET N-CH 160V 7A TO-3P
The 2SK1058 N-Channel Power MOSFET is designed for the low-frequency power amplifier. This article will unlock more details about 2SK1058. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
2SK1058-E

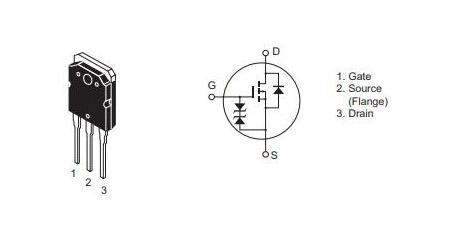

2SK1058 Pinout
2SK1058 Symbol

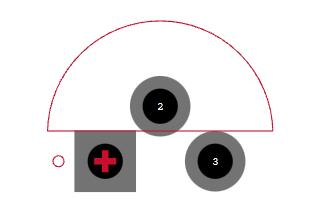

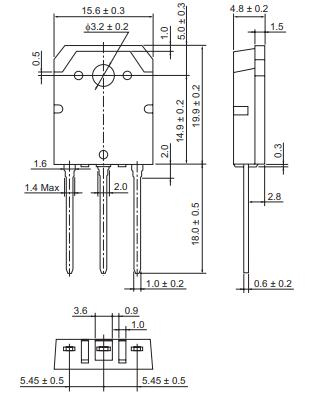

2SK1058 Footprint
2SK1058 3D Model
The 2SK1058 N-Channel Power MOSFET is designed for low-frequency power amplifiers and is compatible with the 2SJ160, 2SJ161, and 2SJ162 N-Channel Power MOSFETs.
●Good frequency characteristic
●High-speed switching
●Wide area of safe operation
●Enhancement-mode
●Good complementary characteristics
●Equipped with gate protection diodes
●Suitable for audio power amplifier
Low-frequency power amplifier
Complementary pair with 2SJ160, 2SJ16l and 2SJ162
The equivalent for 2SK1058:
2SK0601
2SK0615
2SK066400L
2SK0664G0L
2SK066500L
2SK0665G0L
2SK1000
2SK1001
2SK1004
2SK1005
2SK1058 Test Circuit
2SK1058 Waveform
Renesas Electronics America 2SK1058-E technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America 2SK1058-E.
Renesas Electronics America 2SK1058-E technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America 2SK1058-E.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 16 Weeks | |
| Contact Plating | Copper, Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3P-3, SC-65-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Manufacturer Package Identifier | PRSS0004ZE-A | |
| Current - Continuous Drain (Id) @ 25℃ | 7A Ta | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 100W Tc | |
| Turn Off Delay Time | 60 ns | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube |
| Product Attribute | Attribute Value | |
|---|---|---|
| Published | 2005 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | 160V | |
| Terminal Position | SINGLE | |
| Current Rating | 7A | |
| Pin Count | 4 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Number of Channels | 1Channel | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 100W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Case Connection | SOURCE | |
| Turn On Delay Time | 180 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Input Capacitance (Ciss) (Max) @ Vds | 600pF @ 10V | |
| Vgs (Max) | ±15V | |
| Continuous Drain Current (ID) | 7A | |
| Gate to Source Voltage (Vgs) | 15V | |
| Drain Current-Max (Abs) (ID) | 7A | |
| Drain to Source Breakdown Voltage | 160V | |
| Height | 22.1mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Renesas Electronics delivers trusted embedded design innovation with complete semiconductor solutions that enable billions of connected, intelligent devices to enhance the way people work and live - securely and safely. The number one global supplier of microcontrollers and a leader in Analog & Power and SoC products, Renesas provides the expertise, quality, and comprehensive solutions for a broad range of Automotive, Industrial, Home Electronics (HE), Office Automation (OA) and Information Communication Technology (ICT) applications to help shape a limitless future.
Download datasheets and manufacturer documentation for 2SK1058-E
