2SK170 N-Channel MOSFET Transistor: Replacement, Equivalent and Datasheet pdf

2SK170 is an N-Channel MOSFET transistor designed for low noise audio amplifier applications, high breakdown voltage, and high input impedance.

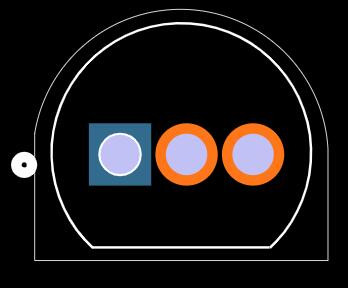

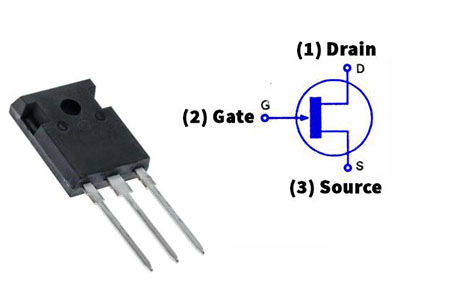

2SK170 Pinout

MICROSS COMPONENTS 2SK170 technical specifications, attributes, parameters and parts with similar specifications to MICROSS COMPONENTS 2SK170.

• Type of Control Channel: N-Channel

• Maximum Power Dissipation (Pd): 0.2 W

• Maximum Drain-Source Voltage |Vds|: 40 V

• Maximum Drain Current |Id|: 0.02 A

• Maximum Junction Temperature (Tj): 125 °C

• Maximum Drain-Source On-State Resistance (Rds): 55 Ohm

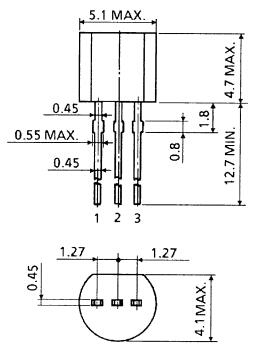

• Package: TO92

LSK170, 2SK0601, 2SK0615, 2SK066400L, 2SK0664G0L, 2SK066500L, 2SK0665G0L, 2SK1000, 2SK1001, 2SK1004, 2SK1005

• High-speed power switching

• Low drive current

• Suitable for motor control, switching regulator and DC-DC converter



2SK170 is counted for many applications and is most likely employed for low noise audio amplifier applications.  but it can also be utilized in the construction of headphones. Even if this transistor is utilized within designed limitations, its reliability may suffer as a result of continuous use under excessive load.

The three-terminal of 2SK170 N-channel  JFET  are drain, gate, and source. Whenever  JFET turns ON the flow of current will be due to electrons because of N-channel JFET. In the circuit, the Drain terminal is connected to the load and positive terminal, while the Source terminal is connected to the ground. Meanwhile, depending on the circuit's requirements, Gate is fed with either zero or negative voltage. Positive voltages are applied to the drain and zero voltages are delivered to the gate to turn on an N-channel JFET, allowing current to flow between the drain and the source.
