MOLEX 39-01-2040Connector Housing, Pull Tabs, UL 94V-2, Mini-Fit Jr. Series, Receptacle, 4 Ways, 4.2 mm
39-01-2040 is ideal for power applications up to 9.0A per circuit. This article is going to talk about more detailed information about 39-01-2040.
39-01-2040
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.24848 | $0.25 |
| 10+ | $0.23442 | $2.34 |
| 100+ | $0.22115 | $22.12 |
| 500+ | $0.20863 | $104.32 |
| 1000+ | $0.19682 | $196.82 |
39-01-2040 handles up to 9.0A and are ideal for wire-to-wire and wire-to-board applications requiring design flexibility. The core attributes of Mini-Fit Jr. include fully isolated terminals, positive locking housings, low-engagement forces, and polarized housings. The Mini-Fit family also offers blind mating, TPA, and higher current options.
Designed for higher-current, higher-density applications requiring design flexibility, 39-01-2040 is ideal for power applications up to 9.0A per circuit. Additionally, these connectors are available in a single row or dual-row 2- to 24-circuit options, feature multiple plating, and resin options.

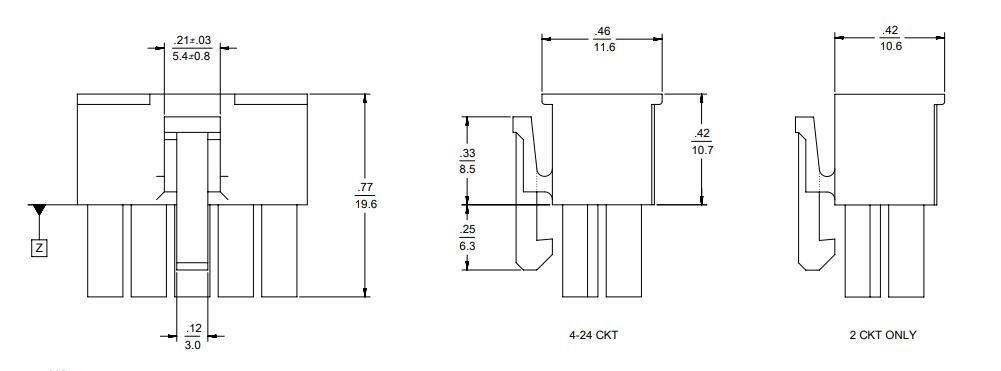

39-01-2040 Dimensions

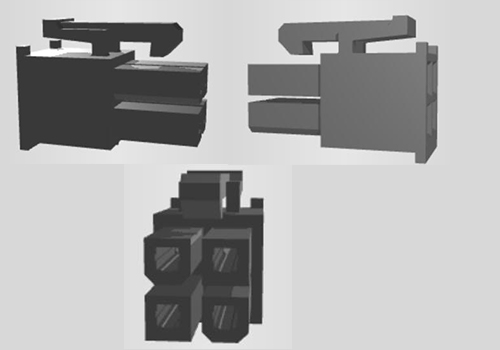

39-01-2040 3D Model
Molex 39-01-2040 technical specifications, attributes, parameters and parts with similar specifications to Molex 39-01-2040.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | CABLE | |
| Shell Material | POLYAMIDE66 | |
| Housing Material | Nylon | |
| Mounting Option 1 | LOCKING | |
| Contact Materials | Brass | |
| Packaging | Bulk | |
| Pbfree Code | yes | |
| Termination | Crimp | |
| ECCN Code | EAR99 | |
| Connector Type | Socket | |
| Number of Positions | 4Positions | |
| Max Operating Temperature | 105°C | |
| Min Operating Temperature | -40°C | |
| Color | Natural | |
| Number of Rows | 2Rows | |
| Gender | Female | |
| Additional Feature | MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED | |
| Voltage - Rated DC | 250V |
| Product Attribute | Attribute Value | |
|---|---|---|
| MIL Conformance | NO | |
| DIN Conformance | NO | |
| IEC Conformance | NO | |
| Filter Feature | NO | |
| Mixed Contacts | NO | |
| Option | GENERAL PURPOSE | |
| Pitch | 4.2mm | |
| Total Number of Contacts | 4Contacts | |
| Orientation | Straight | |
| Depth | 19.6mm | |
| Current Rating | 13A | |
| Number of Conductors | ONEConductor | |
| Reference Standard | UL | |
| Voltage - Rated AC | 250V | |
| Reliability | COMMERCIAL | |
| Approval Agency | CSA, TUV, UL | |
| Row Spacing - Mating | 4.2 mm | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Empty Shell | NO | |
| Contact Style | SQ PIN-SKT | |
| Contact Resistance | 10mOhm | |
| Insulation Resistance | 1000000000Ohm | |
| Body/Shell Style | RECEPTACLE | |
| Max Voltage Rating (AC) | 600V | |
| Dielectric Withstanding Voltage | 1500VAC V | |
| Max Voltage Rating (DC) | 600.6kV | |
| Halogen Free | Low Halogen | |
| Glow Wire Compliant | Non-compliant | |
| Height | 14.1mm | |
| Length | 9.6mm | |
| Width | 15.1mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Flammability Rating | UL94 V-2 | |
| Lead Free | Lead Free |
| Description | Product Attribute |
| Manufacturer | Molex |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Connectors | Headers & Wire Housings |
| Contact Gender | Socket (Female) |
| Contact Type | Socket |
| Current Rating | 13 A |
| Flammability Rating | UL 94 V-2 |
| Housing Gender | Female |
| Housing Material | Nylon |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Cable Mount / Free Hanging |
| Number of Positions | 4 Position |
| Number of Rows | 2 Row |
| Packaging | Bulk |
| Pitch | 4.2 mm |
| Product | Wire Housings |
| Product Type | Headers & Wire Housings |
| Row Spacing | 4.2 mm |
| Series | 5557 |
| Termination Style | Crimp |
| Tradename | Mini-Fit Jr. |
| Type | Receptacle Housing |
| Voltage Rating | 600 V |
| Part # Aliases | 39012040 5557-04R 0039012040 |
