Rectangular Connectors - Housings MOLEX - 43025-0400 - Connector Housing, Dual Row, Micro-Fit 3.0 43025 Series, Receptacle, 4 Ways, 3 mm
The 43025-0400 offers up to 8.5A with a 3.00mm pitch, delivering power in a compact package in wire-to-wire and wire-to-board configurations. This article is going to introduce pinout, applications, features, and more details about 43025-0400.
43025-0400
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.39794 | $0.4 |
| 10+ | $0.37541 | $3.75 |
| 100+ | $0.35416 | $35.42 |
| 500+ | $0.33412 | $167.06 |
| 1000+ | $0.31521 | $315.21 |
The 43025-0400 offers up to 8.5A with a 3.00mm pitch, delivering power in a compact package in wire-to-wire and wire-to-board configurations. OEMs often need power connectors in space-constrained applications.
Micro-Fit 3.0 Blind-Mate Interface (BMI) Connectors are designed for blind-mating applications. They allow mating misalignment (per product drawing). In hard-to-reach applications, such as drawers or fan assembly trays, connectors need to be mated and unmated without being seen. Doing so can cause damage to the connector and/or terminal and consume valuable labor time.
The 43025-0400 helps prevent failure in end products by offering terminal position assurance (TPA). The TPA reduces terminal back-out by providing locking redundancy; assemblers cannot insert the TPA unless the terminal is properly inserted.
• Housings are black in color
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board
Molex 43025-0400 technical specifications, attributes, parameters and parts with similar specifications to Molex 43025-0400.
Molex 43025-0400 technical specifications, attributes, parameters and parts with similar specifications to Molex 43025-0400.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Contact Plating | Tin | |
| Mount | Cable, Free Hanging | |
| Material | Polyester | |
| Contact Materials | Bronze, Tin | |
| Packaging | Bulk | |
| Published | 2006 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Termination | Crimp | |
| Connector Type | Power, Rectangular | |
| Max Operating Temperature | 105°C | |
| Min Operating Temperature | -40°C | |
| Color | Black | |
| Number of Rows | 2Rows | |
| Additional Feature | MICRO-FIT 3.0, POLARIZED | |
| Voltage - Rated DC | 250V | |
| MIL Conformance | NO |
| Product Attribute | Attribute Value | |
|---|---|---|
| DIN Conformance | NO | |
| IEC Conformance | NO | |
| Filter Feature | NO | |
| Mixed Contacts | NO | |
| Option | GENERAL PURPOSE | |
| Pitch | 3mm | |
| Total Number of Contacts | 4Contacts | |
| Orientation | Straight | |
| Depth | 14mm | |
| Current Rating | 5A | |
| Number of Conductors | ONEConductor | |
| Reference Standard | UL | |
| Voltage - Rated AC | 250V | |
| Reliability | COMMERCIAL | |
| Approval Agency | CSA, TUV, UL | |
| Contact Gender | Female | |
| Contact Style | SQ PIN-SKT | |
| Contact Resistance | 10mOhm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Insulation Resistance | 1GOhm | |
| Body/Shell Style | RECEPTACLE | |
| Number of Circuits | 4Circuits | |
| Max Voltage Rating (AC) | 600V | |
| Number of Poles | 4Poles | |
| Max Voltage Rating (DC) | 600.6kV | |
| Halogen Free | Low Halogen | |
| Glow Wire Compliant | Non-compliant | |
| Voltage - Working | 250V | |
| Length | 6.85mm | |
| Width | 11.56mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Flammability Rating | UL94 V-0 | |
| Lead Free | Lead Free |

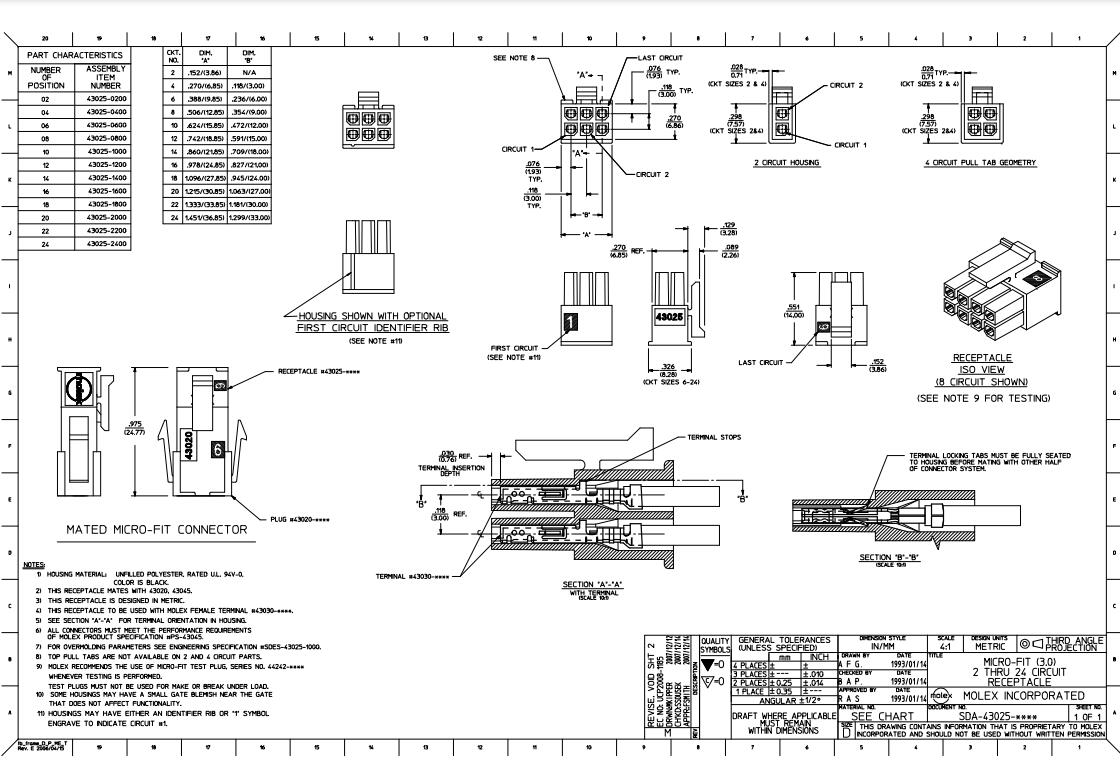

43025-0400 Drawing
43025-0400 Symbol
43025-0400 Footprint

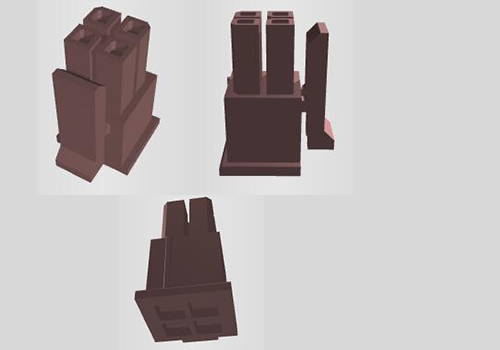

43025-0400 3D Model
