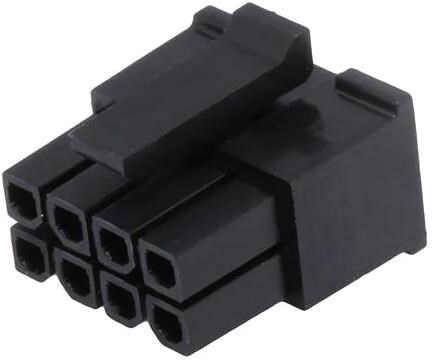

Rectangular Connectors - Housings MOLEX 43025-0800Connector Housing, Dual Row, Micro-Fit 3.0 Series, 8 Ways, 3 mm

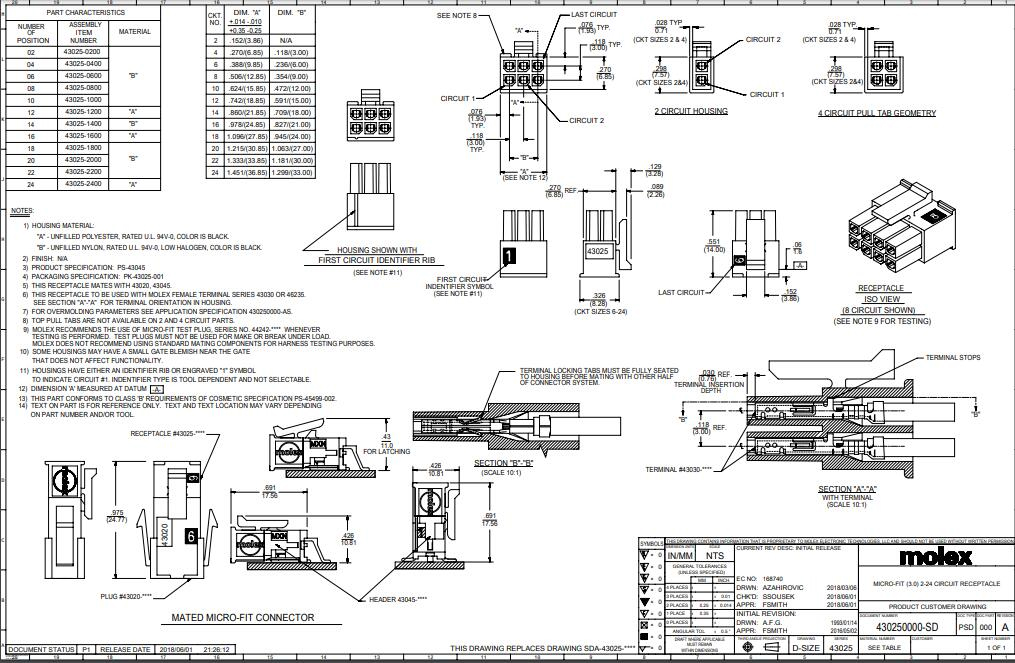

43025-0800 offers up to 8.5A with a 3.00mm pitch, delivering power in a compact package in wire-to-wire and wire-to-board configurations. This article is going to introduce drawing, applications, features, and more details about 43025-0800.
43025-0800
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.5509 | $0.55 |
| 10+ | $0.51972 | $5.2 |
| 100+ | $0.4903 | $49.03 |
| 500+ | $0.46255 | $231.28 |
| 1000+ | $0.43637 | $436.37 |
The 43025-0800 offers up to 8.5A with a 3.00mm pitch, delivering power in a compact package in wire-to-wire and wire-to-board configurations. OEMs often need power connectors in space-constrained applications.
Micro-Fit 3.0 Blind-Mate Interface (BMI) Connectors are designed for blind-mating applications. They allow mating misalignment (per product drawing). In hard-to-reach applications, such as drawers or fan assembly trays, connectors need to be mated and unmated without being seen. Doing so can cause damage to the connector and/or terminal and consume valuable labor time.
The 43025-0800 helps prevent failure in end products by offering terminal position assurance (TPA). The TPA reduces terminal back-out by providing locking redundancy; assemblers cannot insert the TPA unless the terminal is properly inserted.
Fully isolated terminals
SMT, press-fit, or surface-mount compatible versions are available
Locking tang on terminal
Optional terminal position assurance (TPA) feature
Fitting nails and solderable clips are available
BMI provides a self-aligning feature molded into housings
CPI Connectors use an eye-of-the-needle press-fit design
RMF Terminals available with factory-applied lubricant
High-temperature LCP headers
Micro-Fit 3.0 TPA Cable Assembly has a maximum 5.5A current rating and a 3.00mm pitch
Positive latching
Fully polarized housings
BMI wire-to-wire and wire-to-board connectors
BMI and CPI Connectors accept standard Micro-Fit 3.0 female and male crimp terminals
RMF Terminals provide a reduction in engagement and disengagement forces
RMF Terminals available in 20 to 30 AWG

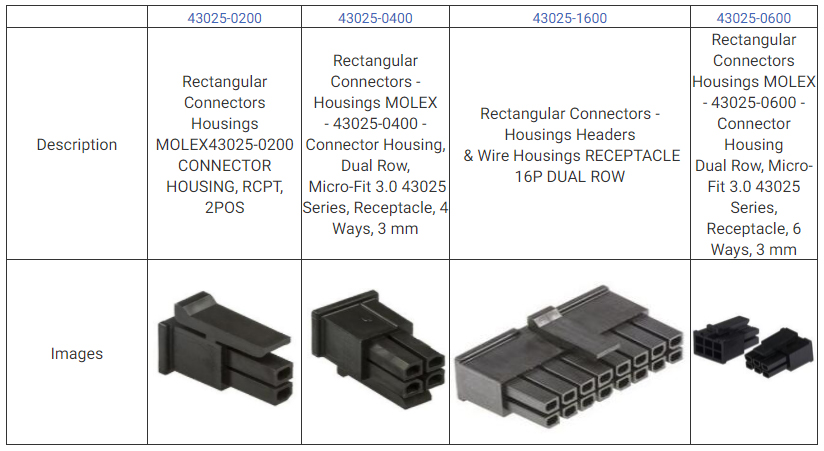

Molex 43025-0800 technical specifications, attributes, parameters and parts with similar specifications to Molex 43025-0800.
Molex 43025-0800 technical specifications, attributes, parameters and parts with similar specifications to Molex 43025-0800.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | Cable, Free Hanging | |
| Housing Material | Polyester | |
| Contact Materials | Bronze, Tin | |
| Packaging | Bulk | |
| Published | 2010 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Termination | Crimp | |
| ECCN Code | EAR99 | |
| Connector Type | Power, Rectangular | |
| Max Operating Temperature | 105°C | |
| Min Operating Temperature | -40°C | |
| Color | Black | |
| Number of Rows | 2Rows | |
| Additional Feature | MICRO-FIT 3.0, POLARIZED | |
| Voltage - Rated DC | 250V |
| Product Attribute | Attribute Value | |
|---|---|---|
| MIL Conformance | NO | |
| DIN Conformance | NO | |
| IEC Conformance | NO | |
| Filter Feature | NO | |
| Mixed Contacts | NO | |
| Option | GENERAL PURPOSE | |
| Pitch | 3mm | |
| Orientation | Straight | |
| Depth | 14mm | |
| Current Rating | 5A | |
| Number of Conductors | ONEConductor | |
| Reference Standard | UL | |
| Voltage - Rated AC | 250V | |
| Reliability | COMMERCIAL | |
| Approval Agency | CSA, TUV, UL | |
| Number of Contacts | 8Contacts | |
| Contact Gender | Female | |
| UL Flammability Code | 94V-0 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Contact Style | SQ PIN-SKT | |
| Contact Resistance | 10mOhm | |
| Insulation Resistance | 1GOhm | |
| Body/Shell Style | RECEPTACLE | |
| Max Voltage Rating (AC) | 600V | |
| Max Voltage Rating (DC) | 600.6kV | |
| Halogen Free | Low Halogen | |
| Glow Wire Compliant | Non-compliant | |
| Voltage - Working | 250V | |
| Length | 12.85mm | |
| Width | 11.56mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Flammability Rating | UL94 V-0 | |
| Lead Free | Lead Free |

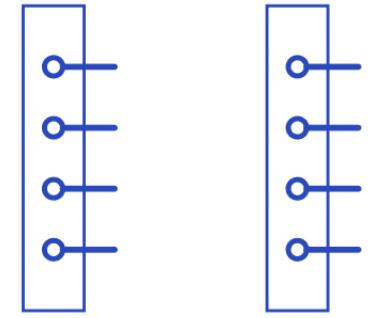

43025-0800 Symbol
43025-0800 Footprint

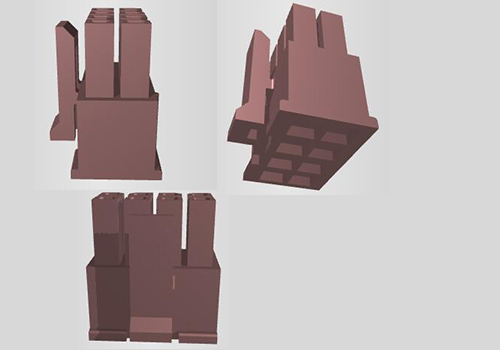

43025-0800 3D Model
Alternative Energy
Automotive
Communications & Networking
Consumer Electronics
Medical
As a leading global supplier of electronic interconnects, Molex is focused on designing and developing innovative solutions critical to products that touch virtually every walk of life. Our portfolio is among the world’s largest with over 100,000 products, including everything from electrical and fiber optic interconnect solutions to switches and application tooling. Molex serves customers in a variety of industries, including telecom, datacom, computer/peripheral, automotive, premise wiring, industrial, consumer, medical and military markets. And because we have the highest levels of R&D investment in our industry, Molex is known for providing a continuous flow of innovation in areas such as high-speed signal integrity, miniaturization, higher power delivery, optical signal transmission, and sealed harsh-environment connectivity. For over 70 years, our focus has been on providing advanced products that meet tomorrow’s needs, today

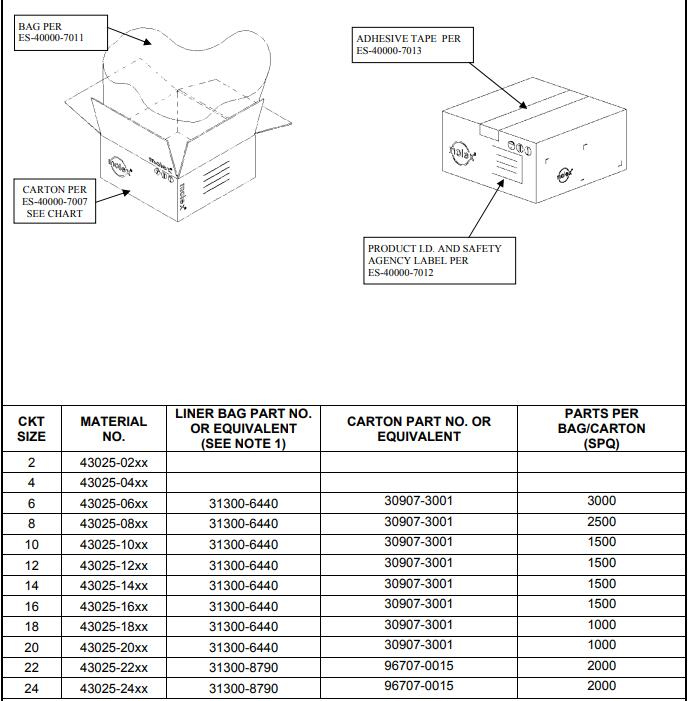

Download datasheets and manufacturer documentation for 43025-0800
