6N139 Optocoupler: Pinout, Applications and Datasheet

6N139 devices is a high speed optocoupler, 100 kBd, low input current, photodiode darlington output. It is consists of an infrared emitting diode, optically coupled to a high gain split darlington photo detector.

They provide extremely high current transfer ratio between input and output, with access to a base terminal to adjust the gain bandwidth.This devices are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD options.

The 6N139 is suited for low power logic applications involving CMOS and low power TTL applications. A 400 % current transfer ratio with only 0.5 mA of LED current is guaranteed.

Caution: Due to the small geometries of this device, it should be handled with Electrostatic Discharge (ESD) precautions. Proper grounding would prevent damage further and/or degradation which may be induced by ESD.

Symbol

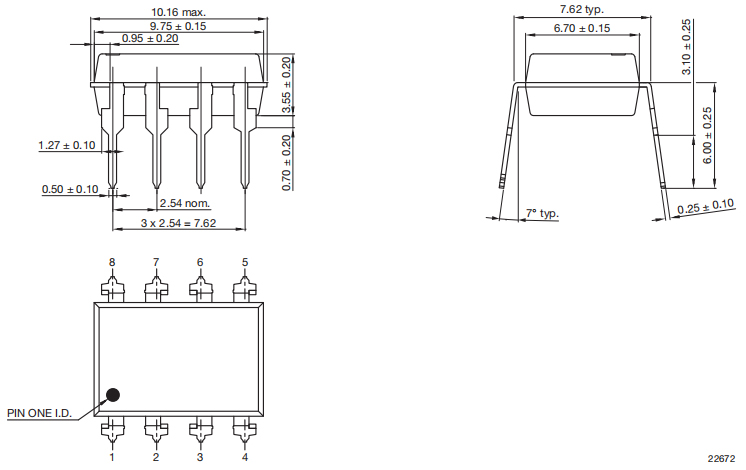

Footprint

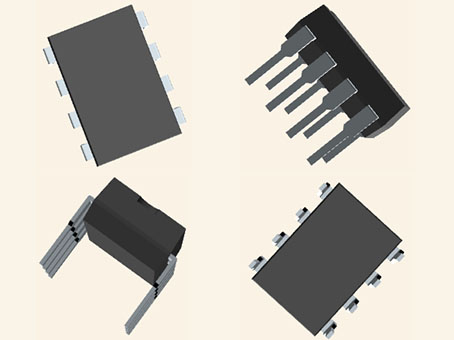

3D Model

• High current transfer ratio, 300 %

• Low input current, 0.5 mA

• High isolation voltage between input and output (Viso=5000 Vrms )

• TTL compatible output, VOL = 0.1 V

• High common mode rejection, 500 V/µs

• Adjustable bandwidth-access to base

• Standard molded dip plastic package

• Lead (Pb)-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

• Superior CTR–2000% typical (4500% Typical for HCNW139/138)

• Performance Guaranteed over Temperature from 0°C to 70°C

• Typical Rise Time: 1.5µs

• Typical Fall Time: 0.6µs

• Maximum output power dissipation: 100mW

• Available in 8-Pin DIP or SOIC-8 Footprint or Widebody Package

Vishay Semiconductor Opto Division 6N139 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division 6N139.

• Microprocessor system interface

• PLC, ATE input / output isolation

• EIA RS232 line receiver

• TTL, CMOS voltage level translation

• Multiplexed data transmission

• Digital control power supply

• Ground loop and electrical noise elimination

• Current loop receiver

• Digital logic ground isolation

• Telephone ring detector

• Low input current line receiver-long lines, party lines

• 117 V ac Line Voltage Status Indicator – Low Input Power Dissipation

•  High common mode noise line receiver

• Microprocessor bus isolation

• Ground Isolate Most Logic Families – TTL/TTL, CMOS/TTL, CMOS/CMOS, LSTTL/TTL, CMOS/LSTTL

• High Voltage Insulation (HCNW139/138)

• Low Power Systems –Ground Isolation

• Low power systems-ground isolation

• Lighting systems

• PWM applications

• AC mains detection

• Reed relay driving

• Switch mode power supply feedback

Vishay Intertechnology, Inc. is an American manufacturer of discrete semiconductors and passive electronic components founded by Polish-born businessman Felix Zandman. Vishay has manufacturing plants in Israel, Asia, Europe, and the Americas where it produces rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors.

Vishay is one of the world's foremost manufacturers of power MOSFETs.They have a wide range of power electronic applications, including portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.

Download datasheets and manufacturer documentation for Vishay Semiconductor Opto Division 6N139.
