Logic - Gates and Inverters 14-TSSOP (0.173, 4.40mm Width) 2V~6V -40°C~125°C 74HC 5V 74HC10 50pF 0.65mm IC GATE NAND 3CH 3-INP 14TSSOP
1066
Oct 22, 2021
Jodie Gray
7410 74HC10 Triple 3 input NAND gate integrated circuit IC demonstration by electronzap electronics
Logic - Gates and Inverters 14-TSSOP (0.173, 4.40mm Width) 2V~6V -40°C~125°C 74HC 5V 74HC10 50pF 0.65mm IC GATE NAND 3CH 3-INP 14TSSOP
The 74HC10 is a Triple 3-input NAND Gate. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
74HC10PW,118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.40894 | $0.41 |
| 10+ | $0.38579 | $3.86 |
| 100+ | $0.36395 | $36.39 |
| 500+ | $0.34335 | $171.68 |
| 1000+ | $0.32392 | $323.92 |
Symbol
Footprint

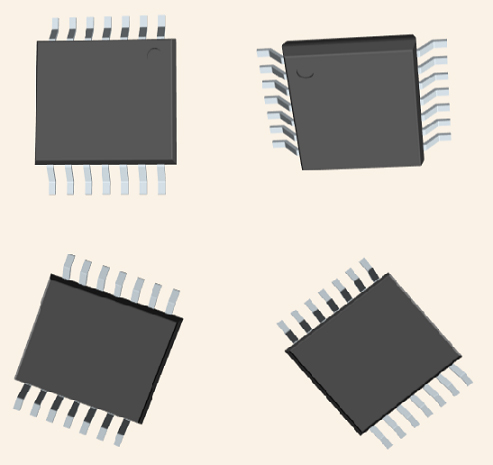

3D Model
The 74HC10 is a Triple 3-input NAND Gate. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
This article provides you with a basic overview of the 74HC10 Triple 3-input NAND Gate, including its pin descriptions, features and specifications, etc., to help you quickly understand what 74HC10 is.
● Complies with JEDEC standard JESD7A
● Input levels: CMOS level
● Complies with JEDEC standard no. 7A
● ESD protection:
◆ HBM JESD22-A114F exceeds 2000 V
◆ MM JESD22-A115-A exceeds 200 V
● Multiple package options
● Specified from ﹣40 ℃ to﹢85 ℃ and from﹣40 ℃ to ﹢125 ℃
Nexperia USA Inc. 74HC10PW,118 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. 74HC10PW,118.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-TSSOP (0.173, 4.40mm Width) | |
| Number of Pins | 14Pins | |
| Logic Level-High | 1.5V ~ 4.2V | |
| Logic Level-Low | 0.5V ~ 1.8V | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | 74HC | |
| Published | 1999 | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 14Terminations | |
| Voltage - Supply | 2V~6V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 3Functions | |
| Supply Voltage | 5V | |
| Terminal Pitch | 0.65mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | 74HC10 | |
| Pin Count | 14 | |
| Number of Outputs | 1Output | |
| Operating Supply Voltage | 5V | |
| Supply Voltage-Max (Vsup) | 6V | |
| Supply Voltage-Min (Vsup) | 2V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Load Capacitance | 50pF | |
| Output Current | 25mA | |
| Propagation Delay | 16 ns | |
| Quiescent Current | 2μA | |
| Turn On Delay Time | 9 ns | |
| Family | HC/UH | |
| Logic Function | NAND | |
| Logic Type | NAND Gate | |
| Number of Gates | 3Gates | |
| Max Propagation Delay @ V, Max CL | 16ns @ 6V, 50pF | |
| Length | 5mm | |
| Width | 4.4mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Logic symbol
IEC logic symbol
Logic diagram (one gate)
| Model number | Manufacturer | Description |
| SN74HC10PWTE4 | Rochester Electronics LLC | NAND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14, GREEN, PLASTIC, TSSOP-14 |
| 74HC10PW,112 | NXP Semiconductors | 74HC(T)10 - Triple 3-input NAND gate TSSOP 14-Pin |
| SN74HC10PWRE4 | Texas Instruments | Triple 3-Input Positive-NAND Gates 14-TSSOP -40 to 85 |
| 74HC10PW-Q100J | Nexperia | 74HC10-Q100; 74HCT10-Q100 - Triple 3-input NAND gate@en-us TSSOP 14-Pin |
| SN74HC10QPWREP | Texas Instruments | Enhanced product 3-ch, 3-input, 2-V to 6-V NAND gates 14-TSSOP -40 to 125 |
| SN74HC10PW | Texas Instruments | 3-ch, 3-input, 2-V to 6-V NAND gates 14-TSSOP -40 to 85 |
| 74HC10PW-T | NXP Semiconductors | IC HC/UH SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, TSSOP-14, Gate |
| 935186290118 | Nexperia | NAND Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14 |
| 935186290112 | NXP Semiconductors | IC HC/UH SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, TSSOP-14, Gate |
| MC74HC10ADTR2G | ON Semiconductor | Triple 3-Input NAND Gate, TSSOP-14, 2500-REEL |
Nexperia is dedicated to Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017.
Nexperia is a leading expert in the high-volume production of essential semiconductors, components that are required by every electronic design in the world. The company's extensive portfolio includes diodes, bipolar transistors, ESD protection devices, MOSFETs, GaN FETs and analog & logic ICs. With decades of experience in supplying to the world's leading companies, Nexperia has over 12,000 employees across Asia, Europe and the US. Nexperia creates efficient devices with best-in-class Quality. It has an extensive portfolio, produced to meet the stringent standards set by the Automotive industry. Its belief that efficiency wins is backed by flawless execution that meets the stringent requirements of the market and customers. Every Nexperia employee is tasked with the responsibility of maintaining Quality. Nexperia is a worldwide network built on passion and commitment to our work, belief in our goals and a drive to succeed.
Download datasheets and manufacturer documentation for 74HC10PW,118
